Buy Suzuki GS Parts Online


STAND-REAR BRAKE

GS500EU 1992 (N) GERMANY AUSTRALIA (E22 E24)

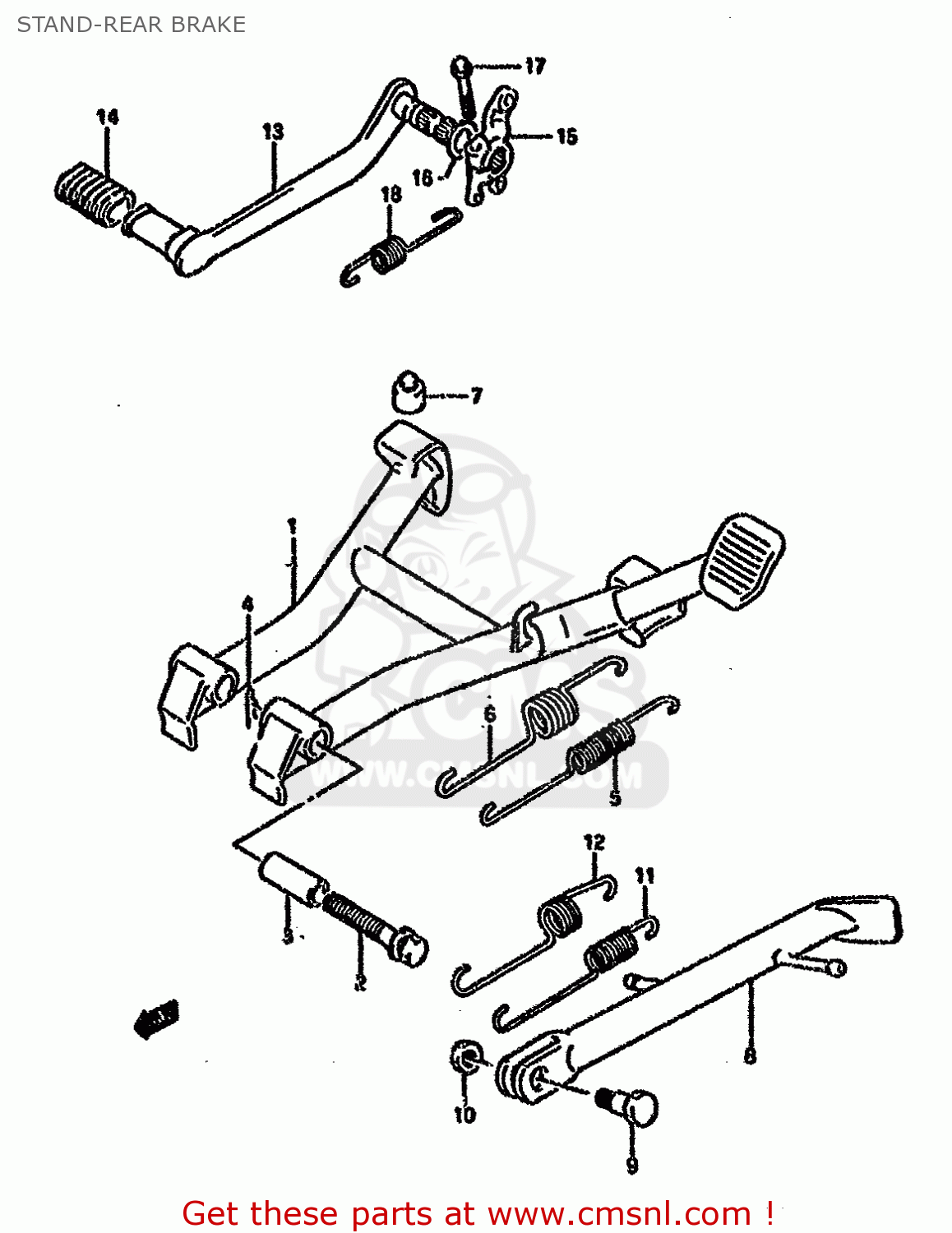

Stand-rear brake diagram GS500EU 1992 (N) GERMANY AUSTRALIA (E22 E24)

STAND-REAR BRAKE GS500EU 1992 (N) GERMANY AUSTRALIA (E22 E24)
STAND-REAR BRAKE GS500EU 1992 (N) GERMANY AUSTRALIA (E22 E24)
STAND-REAR BRAKE GS500EU 1992 (N) GERMANY AUSTRALIA (E22 E24)
prices are in EUR
ref
part #
description
quantity
1
4210001D00
ref: 1
STAND,CTR
4210001D00
€ 177.50
2-1
0911710050
ref: 2-1
MODEL K/L/M/N/P
BOLT 10X63
€ 6.50
2-2
0158010603
ref: 2-2
MODEL R/S/T
BOLT
€ 3.50
3
0918010040
ref: 3
SPACER(10X16X38.8)
0918010040
€ 3.00
4
0938510005
ref: 4
MODEL K/L/M/N/P
CLIP
0938510005
€ 1.50
5
0944314059
ref: 5
SPRING
0944314059
€ 9.50
6
0944322013
ref: 6
SPRING OUTER
0944322013
€ 7.00
7
0932110017
ref: 7
CUSHION
0932110017
€ 5.50
8-1
4231001D000FP
ref: 8-1
MODEL K/L
STAND,SIDE
€ 50.50
8-2
4231001D00019
ref: 8-2
MODEL M/N/P
STAND,PROP(BLACK)
€ 50.50
8-3
4231001D10019
ref: 8-3
MODEL R/S/T
STAND,PROP(BLACK)
4231001D10019
€ 138.00
9-1
0911110038
ref: 9-1
MODEL K/L/M
BOLT L:30
0911110038
€ 4.50
9-2
0911110019
ref: 9-2
MODEL N/P
BOLT L:30
0911110019
€ 4.50
9-3
0911110027
ref: 9-3
MODEL R/S/T
BOLT(10X34)
0911110027
€ 3.50
10-1
0831000107
ref: 10-1
MODEL K/L/M
NUT
0831000107
€ 2.50
10-2
0831000103
ref: 10-2
MODEL N/P
NUT
0831000103
€ 2.00
10-3
0914010043
ref: 10-3
MODEL R/S/T
NUT
0914010043
€ 2.00
11-1
0944315042
ref: 11-1
MODEL K/L/M
SPRING
€ 7.50
11-2
0944315046
ref: 11-2
MODEL N/P/R/S/T
SPRING
0944315046
€ 7.50
12-1
0944322014
ref: 12-1
MODEL K/L/M
SPRING
€ 7.00
12-2
0944322017
ref: 12-2
MODEL N/P/R/S/T
SPRING
0944322017
€ 7.00
13-1
4311001D00
ref: 13-1
MODEL K
PEDAL,BRAKE
€ 37.00
13-2
4311001D10
ref: 13-2
MODEL L/M
PEDAL,BRAKE
€ 37.00
13-3
4311001D11
ref: 13-3
MODEL N
PEDAL,BRAKE
€ 37.00
13-4
4311001D12
ref: 13-4
MODEL P/R/S/T
PEDAL,BRAKE
4311001D12
€ 37.00
14
2565249300
ref: 14
RUBBER,PEDAL
2565249300
€ 5.50
15
4312101D00
ref: 15
ARM,BRAKE ROD
€ 26.00
16-1
4321204700
ref: 16-1
MODEL K/L/M/N/P/R
WASHER
€ 2.00
16-2
4321204A00
ref: 16-2
MODEL S/T
WASHER,BRAKE PEDAL
4321204A00
€ 2.00
17-1
0155006257
ref: 17-1
MODEL K/L/M/N/P/R
BOLT
0155006257
€ 2.50
17-2
0155006253
ref: 17-2
MODEL S/T
BOLT
0155006253
€ 2.50
18
0944313028
ref: 18
SPRING
0944313028
€ 20.50
