CAM SHAFT-VALVE (MODEL R/S/T)

GS500EU 1994 (R) GERMANY AUSTRALIA (E22 E24)

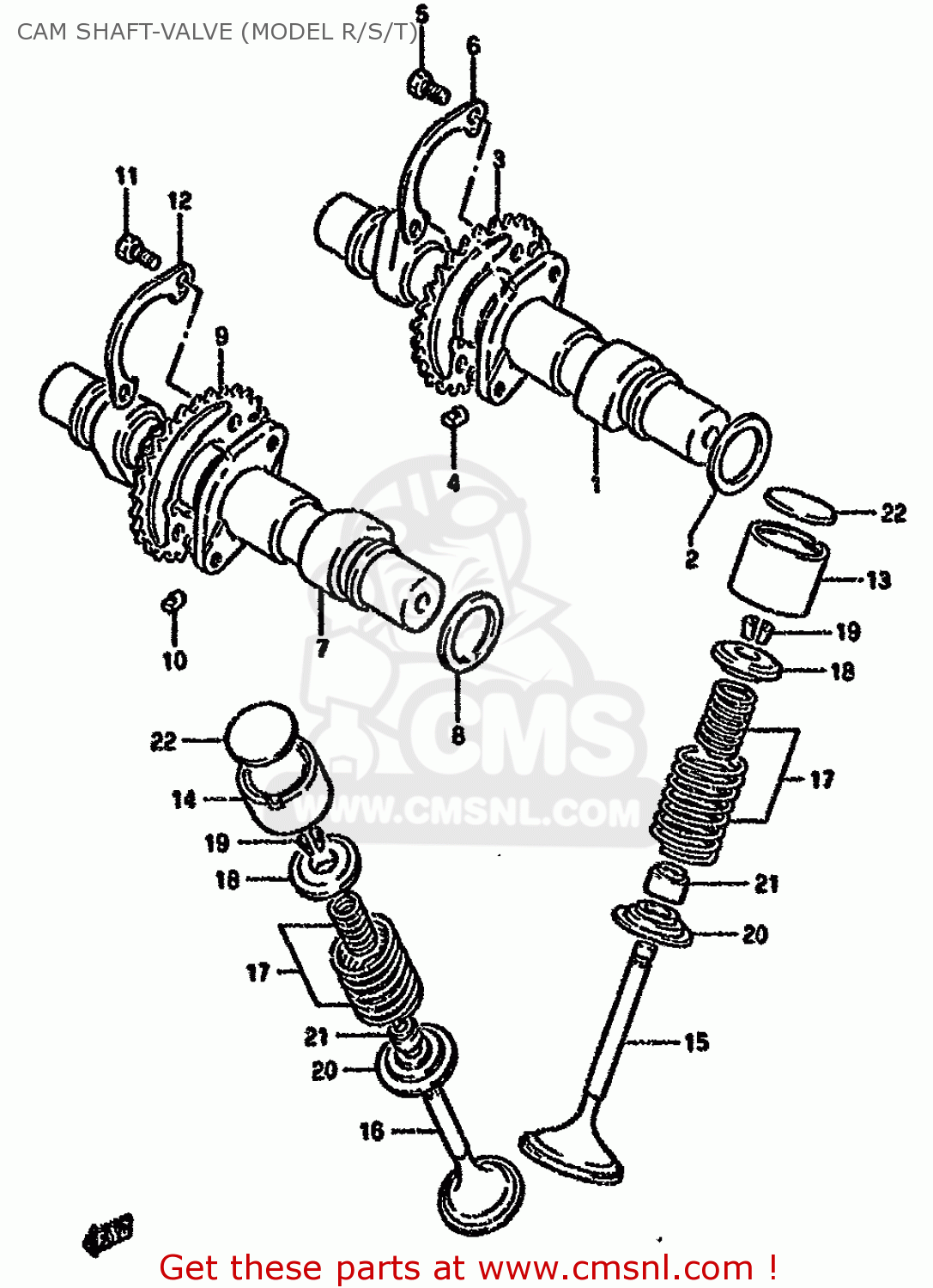

Cam shaft-valve (model r/s/t) diagram GS500EU 1994 (R) GERMANY AUSTRALIA (E22 E24)

CAM SHAFT-VALVE (MODEL R/S/T) GS500EU 1994 (R) GERMANY AUSTRALIA (E22 E24)
CAM SHAFT-VALVE (MODEL R/S/T) GS500EU 1994 (R) GERMANY AUSTRALIA (E22 E24)
CAM SHAFT-VALVE (MODEL R/S/T) GS500EU 1994 (R) GERMANY AUSTRALIA (E22 E24)
prices are in EUR
ref
part #
description
quantity
1-1
1271001820
ref: 1-1
CAMSHAFT SET,INTAKE
1271001820
€ 211.50
1-2
1271001810
ref: 1-2
E18,E39 MODEL R E24
CAMSHAFT SET,INTAKE
1271001810
€ 348.00
2-1
0821122301
ref: 2-1
WASHER,THRUST
€ 3.00
2-2
0916022074
ref: 2-2
WASHER(22X30X1.1)
0916022074
€ 6.50
2-3
0916022075
ref: 2-3
WASHER(22X30X1.2)
0916022075
€ 6.50
2-4
0916022076
ref: 2-4
WASHER(22X30X1.3)
0916022076
€ 7.00
3
1274045042
ref: 3
SPROCKET,CAMSHAFT INTAKE
1274045042
€ 67.00
4
1274844000
ref: 4
PIN,SPROCKET
1274844000
€ 4.50
5
0911106027
ref: 5
BOLT(6X12.5)
0911106027
€ 1.50
6
1274744000
ref: 6
WASHER,CAM CHAIN SPROCKET
1274744000
€ 2.00
7-1
1272001820
ref: 7-1
CAMSHAFT SET,EXHAUST
1272001820
€ 260.00
7-2
1272001810
ref: 7-2
E18,E39 MODEL R E24
CAMSHAFT SET,EXHAUST
1272001810
€ 368.50
8-1
0821122301
ref: 8-1
WASHER,THRUST
€ 3.00
8-2
0916022074
ref: 8-2
WASHER(22X30X1.1)
0916022074
€ 6.50
8-3
0916022075
ref: 8-3
WASHER(22X30X1.2)
0916022075
€ 6.50
8-4
0916022076
ref: 8-4
WASHER(22X30X1.3)
0916022076
€ 7.00
9
1275045041
ref: 9
SPROCKET,EXHAUST CAM(NT:30)
1275045041
€ 65.00
10
1274844000
ref: 10
PIN,SPROCKET
1274844000
€ 4.50
11
0911106027
ref: 11
BOLT(6X12.5)
0911106027
€ 1.50
12
1274744000
ref: 12
WASHER,CAM CHAIN SPROCKET
1274744000
€ 2.00
13
1289115500
ref: 13
TAPPET
1289115500
€ 45.00
14
1289115500
ref: 14
TAPPET
1289115500
€ 45.00
15
1291101D00
ref: 15
VALVE,INTAKE
1291101D00
€ 80.00
16
1291201D00
ref: 16
VALVE,EXHAUST
1291201D00
€ 79.50
17
1292044110
ref: 17
SPRING SET,VALVE
1292044110
€ 13.50
18
1293145000
ref: 18
RETAINER,VALVE SPRING
1293145000
€ 6.00
19
1293245010
ref: 19
COTTER VALVE
1293245010
€ 2.50
20
1293345001
ref: 20
SEAT,VALVE SPRING
1293345001
€ 5.50
21
0928907002
ref: 21
SEAL,OIL(7X14.4X9)
0928907002
€ 3.00
22-1
1289245000215
ref: 22-1
SHIM,TAPPET(T:2.15)
1289245000215
€ 17.00
22-2
1289245000220
ref: 22-2
SHIM,TAPPET(T:2.20)
1289245000220
€ 16.50
22-3
1289245000225
ref: 22-3
SHIM,TAPPET(T:2.25)
1289245000225
€ 17.00
22-4
1289245000230
ref: 22-4
SHIM,TAPPET(T:2.30)
1289245000230
€ 16.00
22-5
1289245000235
ref: 22-5
SHIM,TAPPET(T:2.35)
1289245000235
€ 16.50
22-6
1289245000240
ref: 22-6
SHIM,TAPPET(T:2.40)
1289245000240
€ 17.00
22-7
1289245000245
ref: 22-7
SHIM,TAPPET(T:2.45)
1289245000245
€ 17.00
22-8
1289245000250
ref: 22-8
SHIM,TAPPET(T:2.50)
1289245000250
€ 16.00
22-9
1289245000255
ref: 22-9
SHIM,TAPPET(T:2.55)
1289245000255
€ 16.50
22-10
1289245000260
ref: 22-10
SHIM,TAPPET(T:2.60)
1289245000260
€ 16.00
22-11
1289245000265
ref: 22-11
SHIM,TAPPET(T:2.65)
1289245000265
€ 17.00
22-12
1289245000270
ref: 22-12
SHIM,TAPPET(T:2.70)
1289245000270
€ 17.00
22-13
1289245000275
ref: 22-13
SHIM,TAPPET(T:2.75)
1289245000275
€ 17.00
22-14
1289245000280
ref: 22-14
SHIM,TAPPET(T:2.80)
1289245000280
€ 16.50
22-15
1289245000285
ref: 22-15
SHIM,TAPPET(T:2.85)
1289245000285
€ 17.00
22-16
1289245000290
ref: 22-16
SHIM,TAPPET(T:2.90)
1289245000290
€ 17.00
22-17
1289245000295
ref: 22-17
SHIM,TAPPET(T:2.95)
1289245000295
€ 17.00
22-18
1289245000300
ref: 22-18
SHIM,TAPPET(T:3.00)
1289245000300
€ 17.00
22-19
1289245000305
ref: 22-19
SHIM,TAPPET(T:3.05)
1289245000305
€ 16.50
22-20
1289245000310
ref: 22-20
SHIM,TAPPET(T:3.10)
1289245000310
€ 17.00
23
1280045811
ref: 23
OPT NOT SHOWN
SHIM SET,TAPPET
1280045811
€ 1,227.00
24
9900069521
ref: 24
OPT NOT SHOWN
CASE,SHIM
€ 152.50
