CRANKCASE

GS500EU 1994 (R) GERMANY AUSTRALIA (E22 E24)

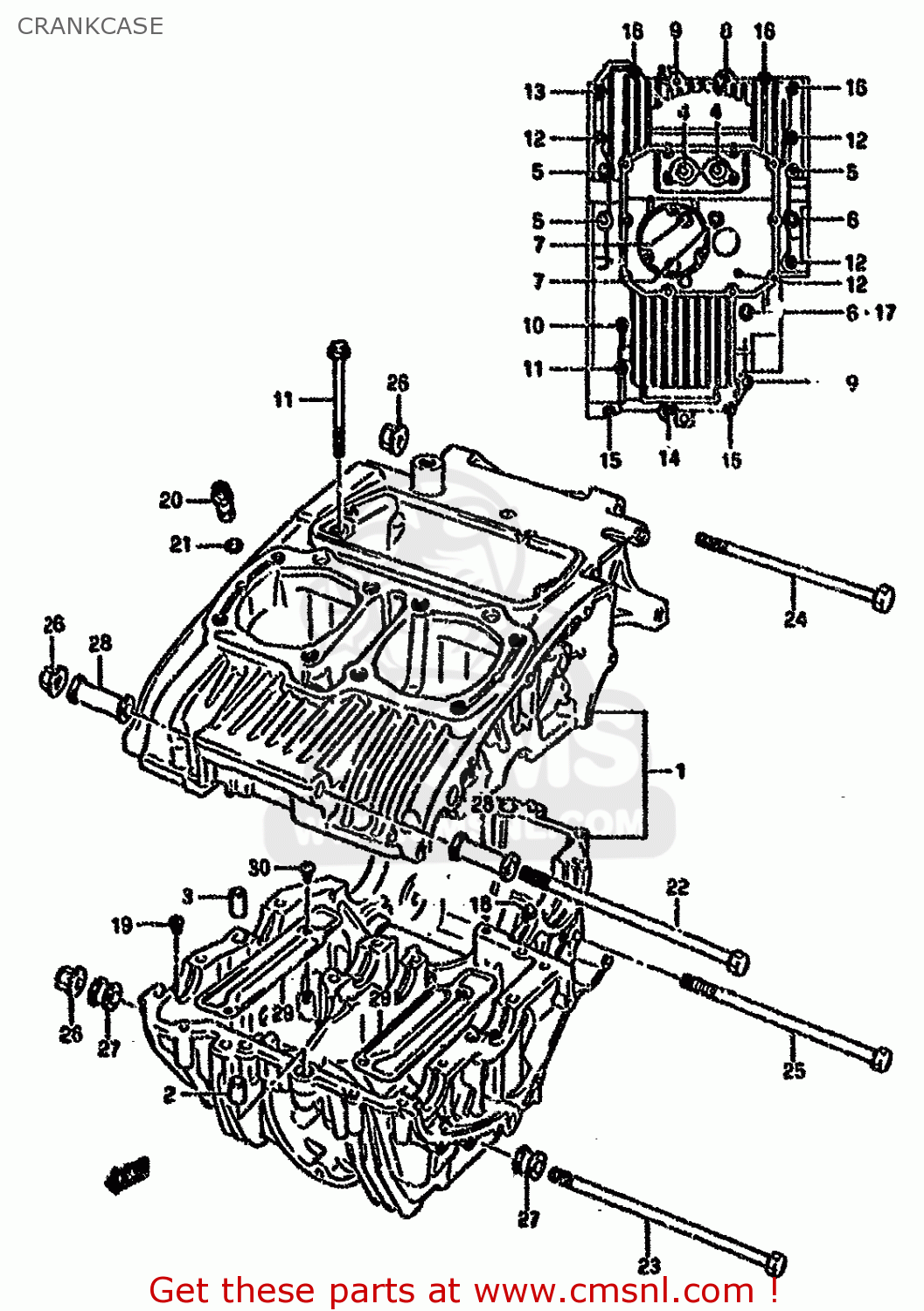

Crankcase diagram GS500EU 1994 (R) GERMANY AUSTRALIA (E22 E24)

CRANKCASE GS500EU 1994 (R) GERMANY AUSTRALIA (E22 E24)
CRANKCASE GS500EU 1994 (R) GERMANY AUSTRALIA (E22 E24)
CRANKCASE GS500EU 1994 (R) GERMANY AUSTRALIA (E22 E24)
prices are in EUR
ref
part #
description
quantity
1
1130044881
ref: 1
CRANKCASE SET
€ 1,172.50
2
0920613004
ref: 2
PIN(10.4X13X22)
0920613004
€ 3.00
3
0920611005
ref: 3
PIN (11X20)(SUS)
€ 6.50
4
0713008703
ref: 4
BOLT
€ 4.00
5
0910308182
ref: 5
BOLT(8X125)
0910308182
€ 4.50
6
0910308134
ref: 6
-09103-08024
BOLT(8X110)
0910308134
€ 3.00
7-1
0910308070
ref: 7-1
MODEL K/L/M/N/P/R
BOLT(8X100)
0910308070
€ 5.00
7-2
0910308230
ref: 7-2
MODEL S/T
BOLT(8X100)
0910308230
€ 3.00
8-1
0151708655
ref: 8-1
MODEL K/L/M/N/P
BOLT (8X65)
€ 3.00
8-2
0155008653
ref: 8-2
MODEL R/S/T
BOLT
€ 3.00
9-1
0151708455
ref: 9-1
MODEL K/L/M/N/P
BOLT
€ 3.00
9-2
0155008453
ref: 9-2
MODEL R/S/T
BOLT
€ 3.00
10
0910306033
ref: 10
BOLT(6X125)
0910306033
€ 3.50
11
0910306067
ref: 11
BOLT(6X105)
0910306067
€ 3.50
12-1
0151706905
ref: 12-1
MODEL K/L/M/N/P
BOLT (6X90)
€ 3.50
12-2
0155006903
ref: 12-2
MODEL R/S/T
BOLT (6X90)
0155006903
€ 3.50
13-1
0151706705
ref: 13-1
MODEL K/L/M/N/P
BOLT
€ 2.50
13-2
0155006703
ref: 13-2
MODEL R/S/T
BOLT
€ 2.50
14-1
0151706655
ref: 14-1
MODEL K/L/M/N/P
BOLT
€ 2.50
14-2
0155006653
ref: 14-2
MODEL R/S/T
BOLT
€ 2.50
15
0155006507
ref: 15
BOLT
0155006507
€ 2.00
16-1
0151706455
ref: 16-1
MODEL K/L/M/N/P
BOLT (6X45)
€ 2.50
16-2
0155006453
ref: 16-2
MODEL R/S/T
BOLT (6X45)
€ 2.50
17
0916808008
ref: 17
GASKET 8.2X14X1 (NAS)
0916808008
€ 1.00
18
0949322010
ref: 18
JET,AIR
0949322010
€ 12.00
19
0949332002
ref: 19
JET
0949332002
€ 11.50
20
0949324008
ref: 20
JET
0949324008
€ 16.00
21
0928003003
ref: 21
O RING(D:1.05,ID:3.1)
0928003003
€ 2.50
22
0910310137
ref: 22
BOLT(10X255)
0910310137
€ 10.00
23
0910310212
ref: 23
BOLT(10X240)
0910310212
€ 15.50
24
0910310127
ref: 24
BOLT(10X170)
0910310127
€ 16.00
25
0910310278
ref: 25
-09103-10150
BOLT(10X160)
0910310278
€ 9.50
26-1
0831931107
ref: 26-1
MODEL K/L
NUT
0831931107
€ 3.00
26-2
0915910078
ref: 26-2
MODEL M/N/P/R/S/T
NUT
0915910078
€ 4.50
27-1
1161001D00
ref: 27-1
MODEL K/L
SPACER COMP,ENGINE MOUNTING,LEFT
1161001D00
€ 8.00
27-2
1161101D10
ref: 27-2
MODEL M/N/P/R/S/T
SPACER,ENG MTG(L:16.8)
1161101D10
€ 8.00
28
1161045410
ref: 28
SPACER,ENGINE MOUNT(L:65)
1161045410
€ 11.50
29
1152144100
ref: 29
PLATE,OIL SEPARATOR
1152144100
€ 3.00
30
0211206123
ref: 30
SCREW
0211206123
€ 1.50
