CRANKSHAFT

GS500EU 1994 (R) GERMANY AUSTRALIA (E22 E24)

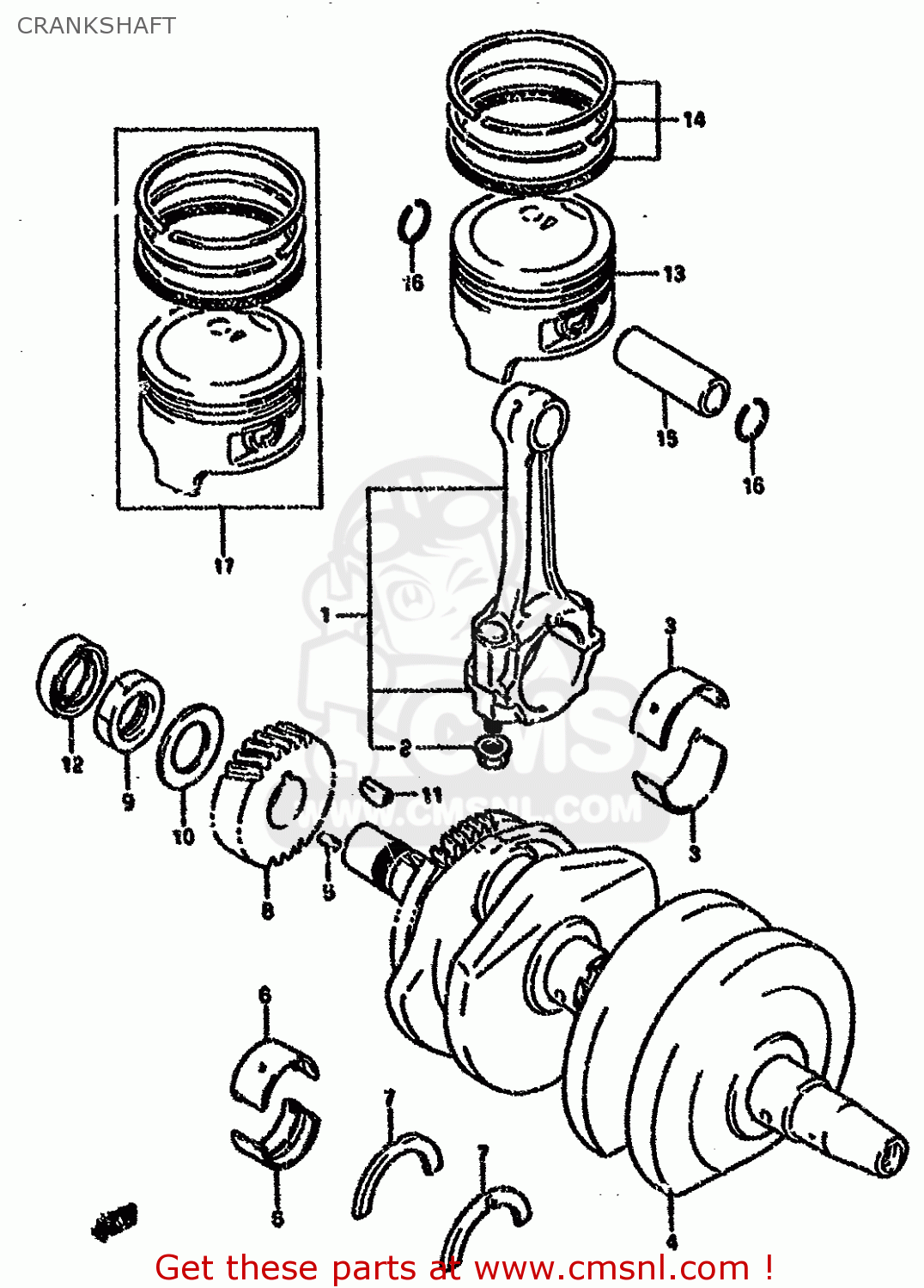

Crankshaft diagram GS500EU 1994 (R) GERMANY AUSTRALIA (E22 E24)

CRANKSHAFT GS500EU 1994 (R) GERMANY AUSTRALIA (E22 E24)
CRANKSHAFT GS500EU 1994 (R) GERMANY AUSTRALIA (E22 E24)
CRANKSHAFT GS500EU 1994 (R) GERMANY AUSTRALIA (E22 E24)
prices are in EUR
ref
part #
description
quantity
1
1216044100
ref: 1
ROD ASSEMBLY,CONNECTING
1216044100
€ 135.50
2
0915908033
ref: 2
NUT
0915908033
€ 2.50
3-1
1216401D010A0
ref: 3-1
BEARING,CRANK PIN
1216401D010A0
€ 13.50
3-2
1216401D010B0
ref: 3-2
BEARING,CRANK PIN
1216401D010B0
€ 14.50
3-3
1216401D010C0
ref: 3-3
BEARING,CRANK PIN
1216401D010C0
€ 14.50
3-4
1216401D010D0
ref: 3-4
BEARING,CRANK PIN
1216401D010D0
€ 15.00
3-5
1216444100025
ref: 3-5
OPT
BEARING,CRANK PIN(US:0.25)
1216444100025
€ 15.50
3-6
1216444100050
ref: 3-6
OPT
BEARING,CRANK PIN(US:0.5)
1216444100050
€ 14.50
4-1
1222001D00
ref: 4-1
MODEL K/L
CRANKSHAFT
€ 1,167.50
4-2
1222001D02
ref: 4-2
MODEL M/N/P/R/S/T
CRANKSHAFT
1222001D02
€ 1,167.50
5
0920203016
ref: 5
PIN
0920203016
€ 1.50
6-1
1222901D010A0
ref: 6-1
BEARING,CRANKSHAFT(GREEN)
1222901D010A0
€ 10.50
6-2
1222901D010B0
ref: 6-2
BEARING,CRANKSHAFT(BLACK)
1222901D010B0
€ 11.00
6-3
1222901D010C0
ref: 6-3
BEARING,CRANKSHAFT(BROWN)
1222901D010C0
€ 11.00
6-4
1222901D010D0
ref: 6-4
BEARING,CRANKSHAFT(YELLOW)
1222901D010D0
€ 11.00
6-5
1222944100025
ref: 6-5
OPT
BEARING,CRANKSHAFT(US:0.25)
1222944100025
€ 21.50
6-6
1222944100050
ref: 6-6
OPT
BEARING,CRANKSHAFT(US:0.5)
1222944100050
€ 9.50
7
1222844106
ref: 7
BEARING,CRANK THRUST
1222844106
€ 8.50
8
2111144100
ref: 8
GEAR,PRIMARY DRIVE NO.28
2111144100
€ 57.50
9
0914024007
ref: 9
NUT
0914024007
€ 4.50
10
0916425001
ref: 10
WASHER
0916425001
€ 4.50
11
0834131059
ref: 11
KEY
0834131059
€ 3.00
12
0928322015
ref: 12
SEAL,OIL(22X40X8)
0928322015
€ 10.50
13
1211101D010F0
ref: 13
PISTON (74.00MM)
1211101D010F0
€ 77.00
14
1214001D20
ref: 14
RING SET,PISTON
1214001D20
€ 57.00
15
1215145501
ref: 15
PIN,PISTON (18MM)
1215145501
€ 14.00
16
0938118002A
ref: 16
CIRCLIP,PISTON PIN
0938118002A
€ 1.50
17-1
1210001D00050
ref: 17-1
OPT
PISTON SET(OS:0.5)
1210001D00050
€ 112.50
17-2
1210001D00100
ref: 17-2
OPT
PISTON SET (OS:1.0)
€ 115.00
