REAR WHEEL

GS500EU 1994 (R) GERMANY AUSTRALIA (E22 E24)

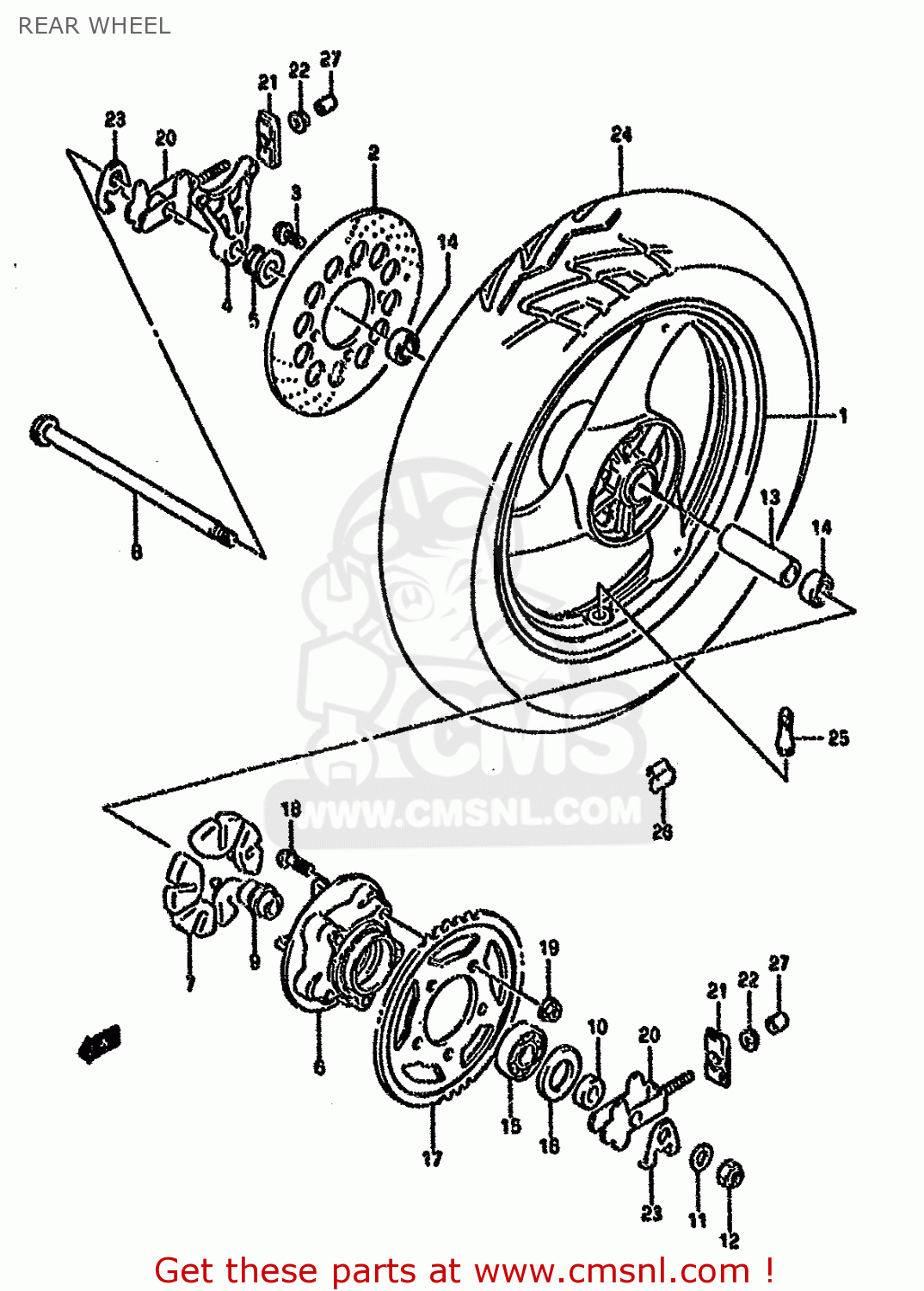

Rear wheel diagram GS500EU 1994 (R) GERMANY AUSTRALIA (E22 E24)

REAR WHEEL GS500EU 1994 (R) GERMANY AUSTRALIA (E22 E24)
REAR WHEEL GS500EU 1994 (R) GERMANY AUSTRALIA (E22 E24)
REAR WHEEL GS500EU 1994 (R) GERMANY AUSTRALIA (E22 E24)
prices are in EUR
ref
part #
description
quantity
1-1
6411134C0028W
ref: 1-1
MODEL K/L/M/N/P/R/S
WHEEL,RR(MT3.50X17)
€ 717.50
1-2
6411134C0017U
ref: 1-2
MODEL T
WHEEL,REAR (MT3.50X17)
6411134C0017U
€ 580.00
2
6921101D00
ref: 2
DISC,RR BRAKE
6921101D00
€ 232.50
3-1
0712008305
ref: 3-1
MODEL K/L/M/N/P
BOLT
€ 3.50
3-2
0712008303
ref: 3-2
MODEL R/S/T
BOLT
0712008303
€ 3.50
4-1
6972143400
ref: 4-1
MODEL K/L
BRACKET,RR,CALIPER
€ 51.50
4-2
6972101D00
ref: 4-2
MODEL M/N/P/R/S/T-69
BRACKET,RR CALIPER
€ 51.50
5
6474019C00
ref: 5
SPACER,RR AXLE,R
6474019C00
€ 19.00
6
6461101D00
ref: 6
DRUM,RR SPROCKET
6461101D00
€ 99.50
7
6465127A01
ref: 7
ABSORBER,RR HUB SHOCK
6465127A01
€ 6.00
8-1
6471101D10
ref: 8-1
-64711-01D00
AXLE,REAR
€ 43.50
8-2
6471101D00
ref: 8-2
AXLE,REAR
6471101D00
€ 43.50
9
6473301D00
ref: 9
RETAINER,RR SPROCKET DRUM
6473301D00
€ 17.50
10
6475119C00
ref: 10
SPACER,RR AXLE,L
6475119C00
€ 12.50
11
0916017047
ref: 11
WASHER(17X30X3)
0916017047
€ 5.00
12
0831921168
ref: 12
NUT 16MM
0831921168
€ 5.00
13
0918017067
ref: 13
SPACER(17.5X25X88)
0918017067
€ 13.50
14
0814363037
ref: 14
BEARING
0814363037
€ 23.00
15
0926225073
ref: 15
BEARING(25X62X17)
0926225073
€ 21.50
16
0928535001
ref: 16
SEAL,OIL(35X62X8)
0928535001
€ 9.00
17
6451101D04
ref: 17
SPROCKET,RR(NT:39-520)
6451101D04
€ 31.00
18
0911910059
ref: 18
BOLT
0911910059
€ 3.50
19
0831931107
ref: 19
NUT
0831931107
€ 3.00
20
6141001D00
ref: 20
ADJUSTER,CHAIN
6141001D00
€ 18.00
21
6142101D00
ref: 21
PLATE,CHAIN ADJUSTER GUIDE
6142101D00
€ 7.50
22
0831931087
ref: 22
NUT
0831931087
€ 2.50
23
6471219C01
ref: 23
WASHER,CHAIN ADJUSTER
6471219C01
€ 5.50
24
6511001D00
ref: 24
TIRE,T/L(130/70-17 62H)
€ 171.50
25-1
4313075150
ref: 25-1
MODEL K/L/M-43130-78
VALVE,TIRE
€ 14.50
25-2
4313078030
ref: 25-2
VALVE,TIRE TR413 BS
4313078030
€ 14.50
25-3
4313024A00
ref: 25-3
MODEL N/P/R/S/T-4313
VALVE ASSY,WHEEL RIM(TR412)
4313024A00
€ 7.00
25-4
4313024A11
ref: 25-4
VALVE ASSEMBLY,WHEEL,TR412
€ 7.00
26-1
5541100A00
ref: 26-1
BALANCER,WHEEL (10G)
€ 6.50
26-2
5541200A01
ref: 26-2
BALANCER,WHEEL (20G)
€ 7.00
26-3
5541300A01
ref: 26-3
BALANCER,WHEEL
€ 4.00
27
6144233300
ref: 27
E22
CAP,CHAIN ADJUSTER
6144233300
€ 6.00
