HEADLAMP (MODEL T)

GS500EU 1994 (R) GERMANY AUSTRALIA (E22 E24)

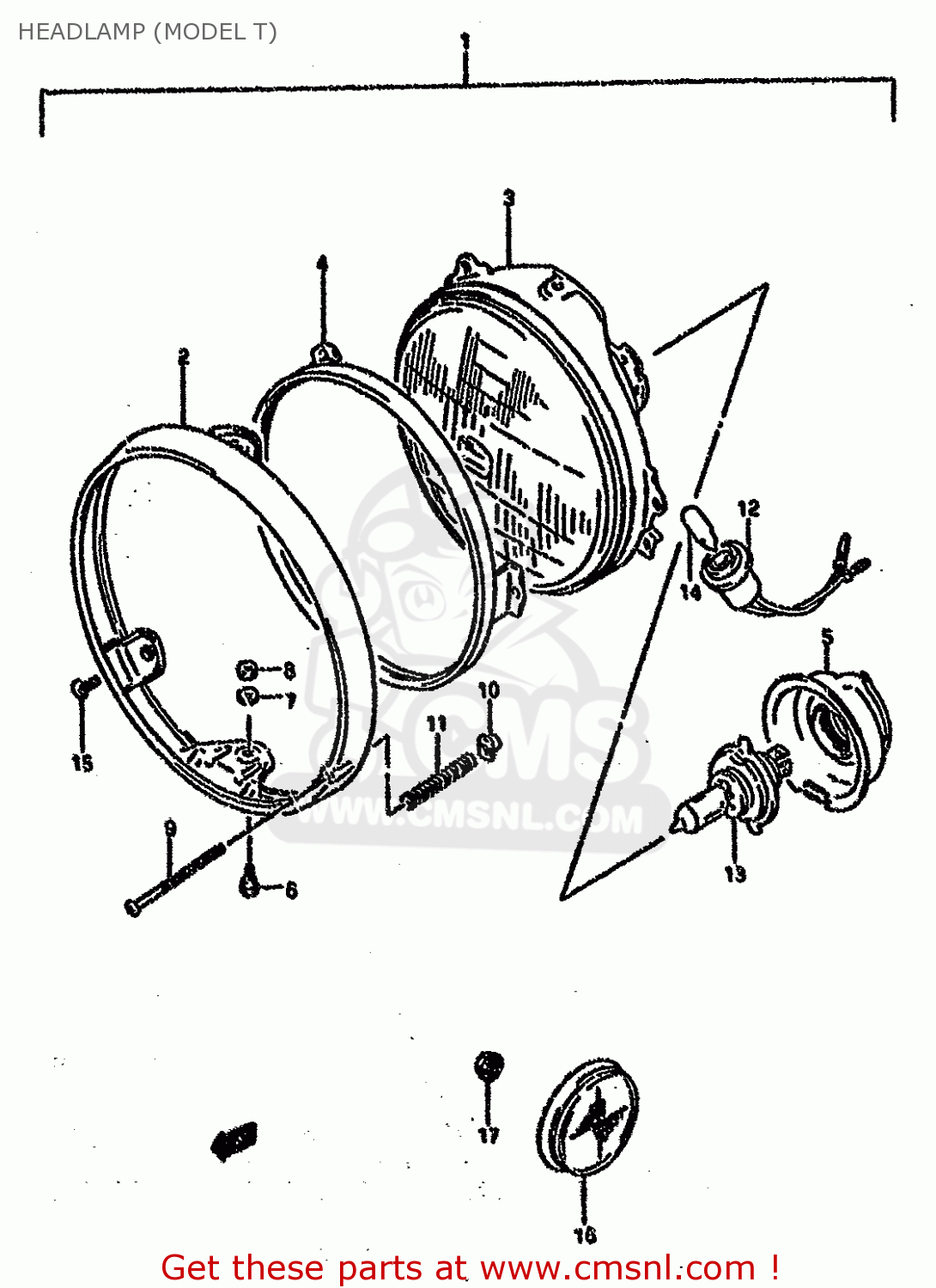

Headlamp (model t) diagram GS500EU 1994 (R) GERMANY AUSTRALIA (E22 E24)

HEADLAMP (MODEL T) GS500EU 1994 (R) GERMANY AUSTRALIA (E22 E24)
HEADLAMP (MODEL T) GS500EU 1994 (R) GERMANY AUSTRALIA (E22 E24)
HEADLAMP (MODEL T) GS500EU 1994 (R) GERMANY AUSTRALIA (E22 E24)
prices are in EUR
ref
part #
description
quantity
1-1
3510010020999
ref: 1-1
HEADLAMP ASSY
€ 0.00
1-2
3510010051999
ref: 1-2
E4,E18,E22,E25,E34,E
HEADLAMP ASSY
€ 0.00
1-3
3510010070999
ref: 1-3
E24
HEADLAMP ASSY
€ 0.00
2
3511101D20
ref: 2
RIM,HEADLAMP
3511101D20
€ 55.50
3-1
3512110D20
ref: 3-1
LAMP UNIT
3512110D20
€ 147.00
3-2
3512110D40
ref: 3-2
E4,E18,E22,E25,E34,E
LAMP UNIT
€ 147.00
3-3
3512110030
ref: 3-3
E24
LAMP UNIT
€ 0.00
4
3512710D20
ref: 4
RING
3512710D20
€ 22.00
5
3517320A01
ref: 5
COVER,SOCKET
3517320A01
€ 14.50
6
3518115611
ref: 6
H/LAMP LENS UNIT FITING SCRE
3518115611
€ 3.00
7
0832101057
ref: 7
WASHER,LOCK
0832101057
€ 2.00
8
0831000053
ref: 8
NUT
€ 2.50
9
3515145900
ref: 9
SCREW
3515145900
€ 4.00
10
3515215611
ref: 10
NUT
3515215611
€ 3.50
11
3515431900
ref: 11
SPRING,ADJUSTING
3515431900
€ 3.50
12
3611804A00
ref: 12
SOCKET
3611804A00
€ 11.50
13
0947112060
ref: 13
BULB(12V60/55W,H4)
0947112060
€ 8.00
14
0947112063
ref: 14
BULB(12V4W)
0947112063
€ 6.00
15
0212205127
ref: 15
SCREW
0212205127
€ 2.50
16
3595014A00
ref: 16
E39
REFLECTOR,REFLEX FR
3595014A00
€ 15.00
17
0831620053
ref: 17
E39
NUT
0831620053
€ 2.00
17
0831620053
ref: 17
E39
NUT
0831620053
€ 2.00
22
0212205127
ref: 22
SCREW
0212205127
€ 2.50
23
3595014A00
ref: 23
E39
REFLECTOR,REFLEX FR
3595014A00
€ 15.00
24
0831620053
ref: 24
E39
NUT
0831620053
€ 2.00
