REAR MASTER CYLINDER

GS500EU 1994 (R) GERMANY AUSTRALIA (E22 E24)

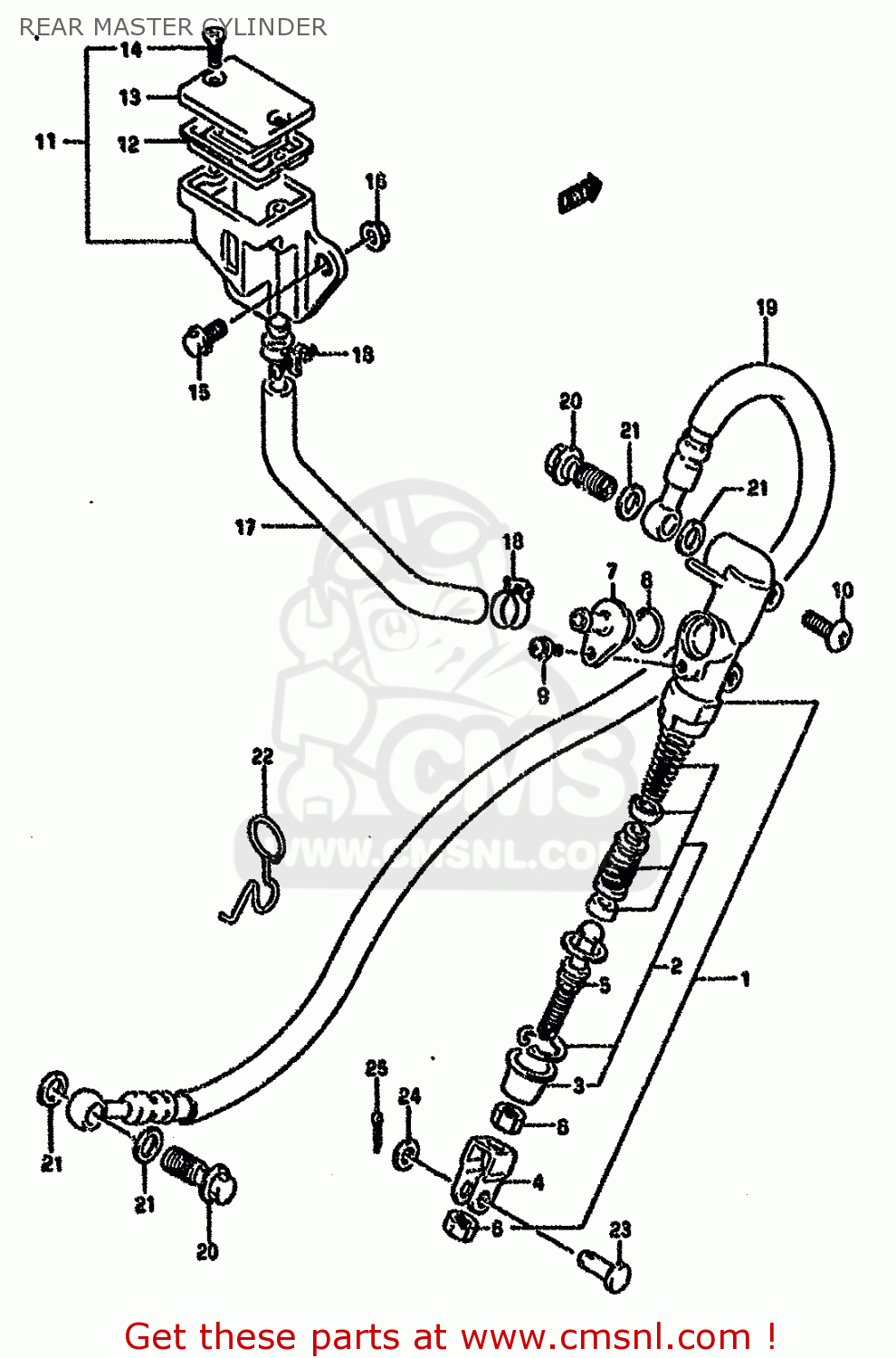

Rear master cylinder diagram GS500EU 1994 (R) GERMANY AUSTRALIA (E22 E24)

REAR MASTER CYLINDER GS500EU 1994 (R) GERMANY AUSTRALIA (E22 E24)
REAR MASTER CYLINDER GS500EU 1994 (R) GERMANY AUSTRALIA (E22 E24)
REAR MASTER CYLINDER GS500EU 1994 (R) GERMANY AUSTRALIA (E22 E24)
prices are in EUR
ref
part #
description
quantity
1
6960001D00
ref: 1
CYLINDER ASSY,RR MASTER
€ 174.50
2
6960004820
ref: 2
PISTON/CUP SET
6960004820
€ 31.00
3
6969100A00
ref: 3
BOOT
6969100A00
€ 3.50
4
6969219A00
ref: 4
YOKE
6969219A00
€ 10.50
5
6967001D00
ref: 5
ROD,PUSH
6967001D00
€ 24.50
6-1
6969324A00
ref: 6-1
-69693-05A00
NUT
€ 1.50
6-2
6969305A00
ref: 6-2
NUT
6969305A00
€ 1.50
7
6967200A00
ref: 7
CONNECTOR
6967200A00
€ 5.50
8
6968634200
ref: 8
O RING
6968634200
€ 3.50
9
0211274123
ref: 9
SCREW
€ 2.50
10-1
0913906054
ref: 10-1
MODEL K
BOLT(6X21)
0913906054
€ 2.50
10-2
0913906056
ref: 10-2
MODEL L
SCREW(6X20)
0913906056
€ 3.00
10-3
0913906057
ref: 10-3
MODEL M/N/P/R/S/T
SCREW(6X25)
0913906057
€ 2.50
11-1
6974001D00
ref: 11-1
MODEL K/L
TANK ASSEMBLY,RESERVOIR
€ 58.00
11-2
6974001D01
ref: 11-2
MODEL M/N
TANK ASSEMBLY,RESERVOIR
€ 58.00
11-3
6974001D02
ref: 11-3
MODEL P/R/S/T
TANK ASSY,RR RESERVOIR
6974001D02
€ 58.00
12
5966704700
ref: 12
DIAPHRAGM
5966704700
€ 8.00
13-1
6966924A00
ref: 13-1
MODEL K/L
CAP
€ 12.00
13-2
6966924A01
ref: 13-2
MODEL M/N
CAP
6966924A01
€ 12.00
13-3
5966905D00
ref: 13-3
MODEL P/R/S/T
CAP
5966905D00
€ 13.50
14
6968904A00
ref: 14
SCREW
6968904A00
€ 2.00
15-1
0151706167
ref: 15-1
MODEL K/L/M/N/P
BOLT 6X16
0151706167
€ 1.50
15-2
0155006163
ref: 15-2
MODEL R/S/T
BOLT
0155006163
€ 2.50
16-1
0915906017
ref: 16-1
MODEL K/L/M/N/P
NUT
0915906017
€ 2.50
16-2
0831610063
ref: 16-2
MODEL R/S/T
NUT
0831610063
€ 2.50
17
6973101D01
ref: 17
HOSE,RESERVOIR TANK
€ 19.50
18-1
0940016302
ref: 18-1
MODEL K/L/M/N/P/R/S
CLAMP
0940016302
€ 4.50
18-2
0940113413
ref: 18-2
MODEL T
CLIP
€ 2.50
19-1
6948001D00
ref: 19-1
MODEL K
HOSE,REAR BRAKE
€ 99.00
19-2
6948001D10
ref: 19-2
MODEL L/M/N/P/R/S/T
HOSE,RR BRAKE
6948001D10
€ 99.00
20-1
0936010017
ref: 20-1
MODEL K/L/M/N/P
BOLT UNION
0936010017
€ 6.50
20-2
0936010039
ref: 20-2
MODEL R/S/T
BOLT UNION
€ 6.50
21
0916110009
ref: 21
WASHER(10X15X1.5)
0916110009
€ 2.00
22
6924301D00
ref: 22
GUIDE,RR BRAKE HOSE
€ 4.00
23
0920006037
ref: 23
PIN
0920006037
€ 5.00
24-1
0832221067
ref: 24-1
MODEL K/L/M/N/P
WASHER
0832221067
€ 2.00
24-2
0832201063
ref: 24-2
MODEL R/S/T
WASHER
0832201063
€ 2.00
25
0411120158
ref: 25
PIN
0411120158
€ 1.50
