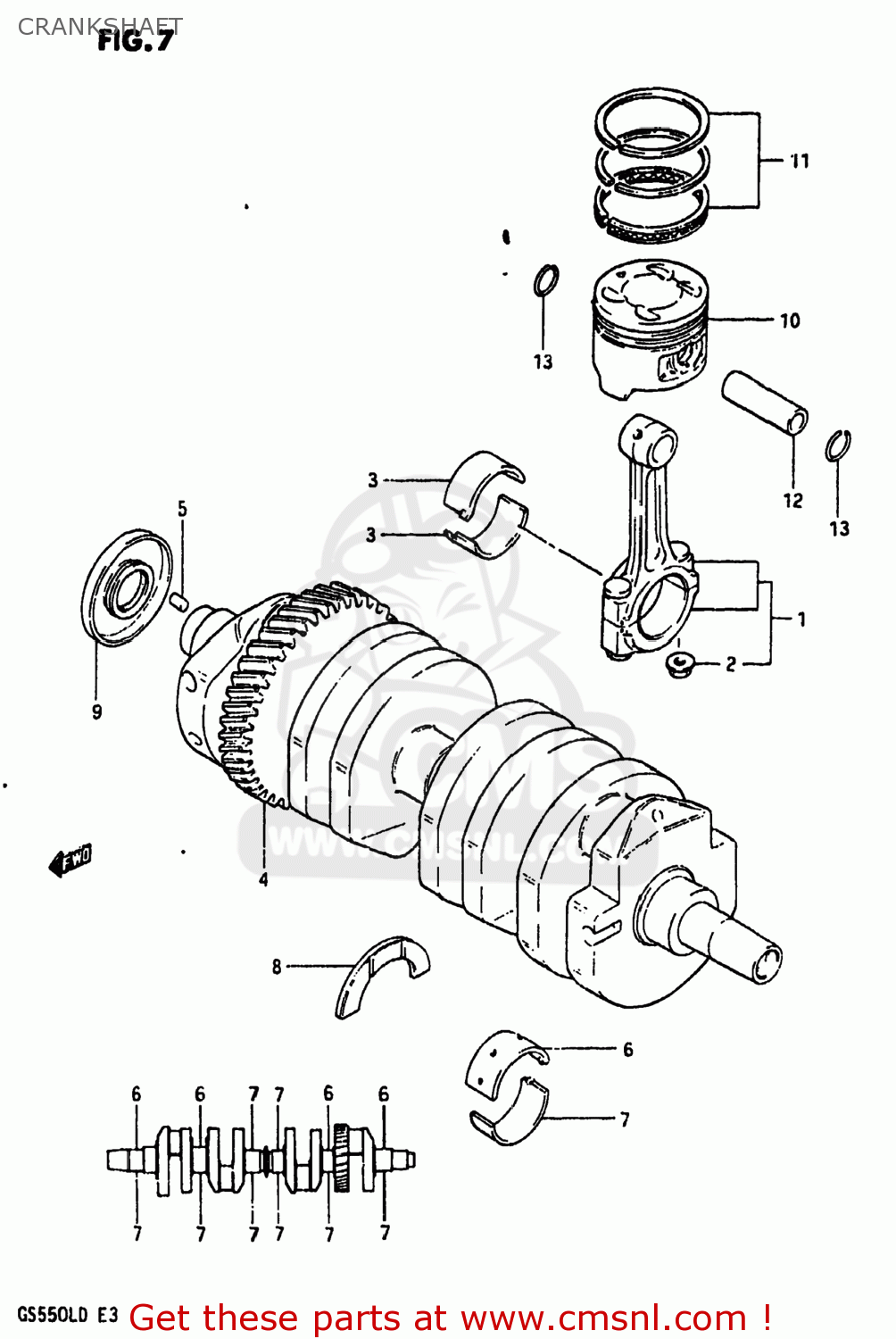

CRANKSHAFT

ref

part #

description

quantity

1

1216043403
ref: 1

ROD ASSEMBLY,CONNECTING

€ 91.00

2

0915908033
ref: 2

NUT

€ 2.50

3-1

1216443400010
ref: 3-1
12164-33300-0A0

BEARING,CRANK PIN

€ 12.00

3-2

1216443400020
ref: 3-2
12164-33300-0B0

BEARING,CRANK PIN

€ 12.50

3-3

1216443400030
ref: 3-3
12164-33300-0C0

BEARING,CRANK PIN

€ 12.50

3-4

1216443400040
ref: 3-4
12164-33300-0D0

BEARING,CRANK PIN

€ 11.50

4

1222043402
ref: 4

CRANKSHAFT ASSEMBLY

€ 898.50

5

0422104089
ref: 5

PIN

€ 1.50

6-1

1222943410010
ref: 6-1
12229-43400-0A0

BEARING,CRANKSHAFT

€ 9.50

6-2

1222943410020
ref: 6-2
12229-43400-0B0

BEARING,CRANKSHAFT

€ 12.00

6-3

1222943410030
ref: 6-3
12229-43400-0C0

BEARING,CRANKSHAFT

€ 10.00

6-4

1222943410040
ref: 6-4
12229-43400-0D0

BEARING,CRANKSHAFT

€ 10.50

7-1

1222943400010
ref: 7-1
12229-43400-0A0

METAL CRANKSHAFT

€ 9.50

7-2

1222943400020
ref: 7-2
12229-43400-0B0

METAL CRANKSHAFT

€ 12.00

7-3

1222943400030
ref: 7-3
12229-43400-0C0

METAL CRANKSHAFT

€ 10.00

7-4

1222943400040
ref: 7-4
12229-43400-0D0

METAL CRANKSHAFT

€ 10.50

8-1

1222843411
ref: 8-1

PLATE,CRANK THRUST

€ 8.50

8-2

1222843412
ref: 8-2

PLATE,CRANK THRUST

€ 8.50

8-3

1222843413
ref: 8-3

PLATE,CRANK THRUST

€ 8.00

8-4

1222843414
ref: 8-4

PLATE,CRANK THRUST

€ 9.50

8-5

1222843415
ref: 8-5

BEARING,THRUST

€ 8.50

8-6

1222843416
ref: 8-6

PLATE,CRANK THRUST

€ 9.50

9

0928330043
ref: 9
09283-30047

OIL SEAL

€ 13.00

10-1

1211143407
ref: 10-1
12111-43420

PISTON

€ 106.50

10-2

1211143407050
ref: 10-2
12103-43830-050

PISTON

€ 106.50

10-3

1211143407100
ref: 10-3
12103-43830-100

PISTON

€ 109.00

11-1

1214043421
ref: 11-1
12140-43422

RING SET,PISTON

€ 54.50

11-2

1214043421050
ref: 11-2
12140-43422-050

RING SET,PISTON (OS:0.5)

€ 32.50

11-3

1214043421100
ref: 11-3
12140-43422-100

RING SET,PISTON (OS:1.0)

€ 13.00

12

1215143400
ref: 12

PIN,PISTON

€ 19.00

13

0938116002
ref: 13
09381-16001

CIRCLIP

€ 1.50
