FUEL TANK

GS550L 1983 (D) USA (E03)

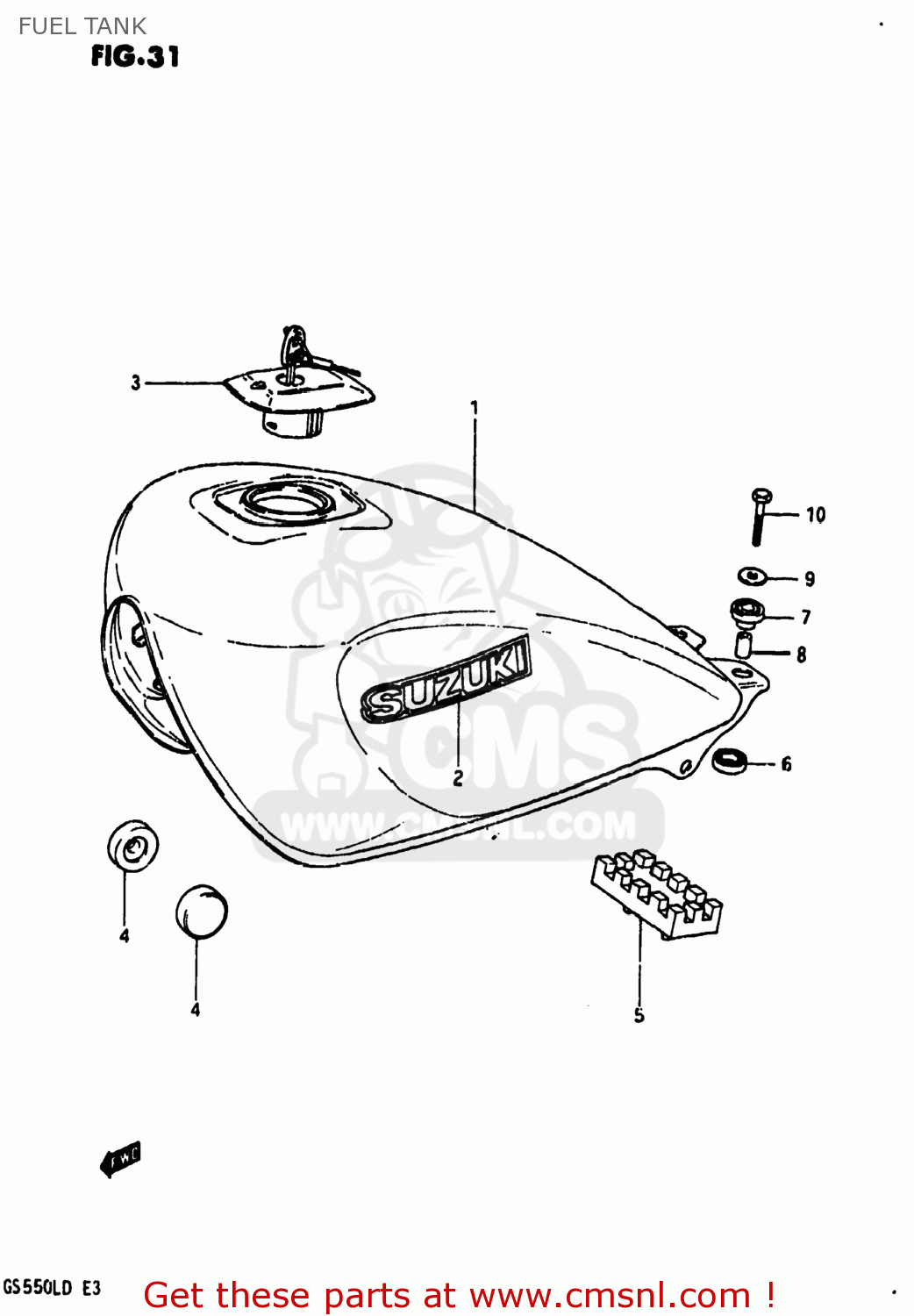

Fuel tank diagram GS550L 1983 (D) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

441004350017U
ref: 1-1
44110-43500-13L

TANK ASSEMBLY,FUEL

€ 404.00

1-2

441004350017T
ref: 1-2
44110-43500-13L

TANK ASSEMBLY,FUEL

€ 404.00

EMBLEM,FUEL TANK

€ 3.00

4420049017KEY
ref: 3
44200-49810

CAP SET,FUEL TANK

€ 121.00

0932910007
ref: 4

CUSHION

€ 3.00

4454143400
ref: 5

CUSHION,FUEL TANK

€ 7.50

0932014013
ref: 6

CUSHION

€ 3.00

0932010020
ref: 7

CUSHION

€ 4.00

0918006072
ref: 8
09180-06271

SPACER

€ 2.00

0916006004
ref: 9
09160-06134

WASHER (6.5X24X1.6)

€ 1.50

0110706308
ref: 10
01500-06307

BOLT

€ 2.50
