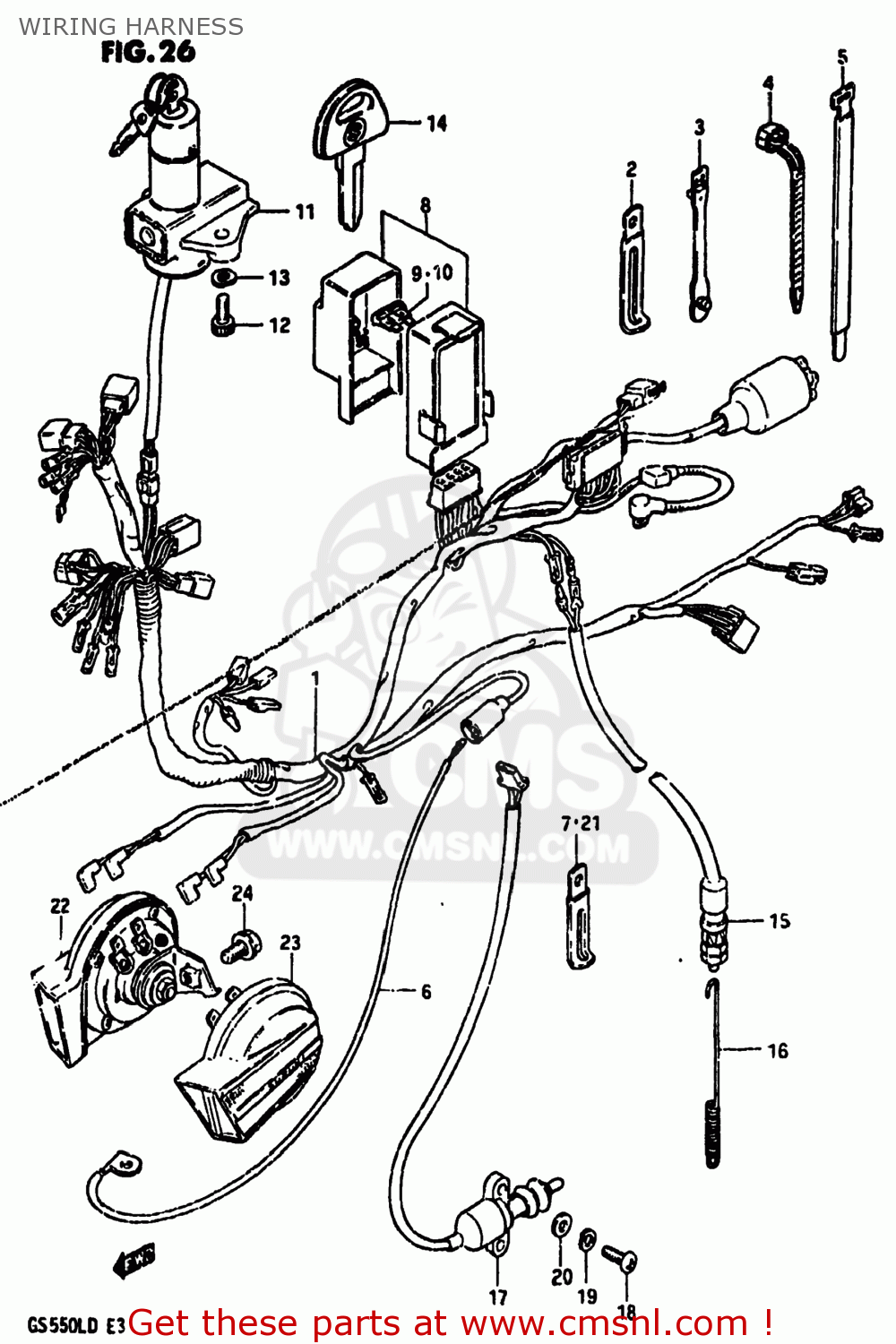

WIRING HARNESS

ref

part #

description

quantity

1

3661043500
ref: 1

HARNESS,WIRING

€ 124.50

2-1

0940406412
ref: 2-1
09404-06432

CLAMP

€ 2.50

2-2

0940406415
ref: 2-2
09404-06433

CLAMP

€ 3.00

3

0940705403
ref: 3

CLAMP,L:88

€ 1.50

4-1

0940714403
ref: 4-1

CLAMP(L:125)

€ 2.50

4-2

0940718402
ref: 4-2

CLAMP(L:165)

€ 2.50

4-3

0940725401
ref: 4-3

CLAMP(L:235)

€ 4.00

5

0940735301
ref: 5
09407-38401

CLAMP

€ 6.50

6

3685143400
ref: 6

WIRE,OIL PRESSURE SWITCH

€ 22.50

7

0940406401
ref: 7
09404-06432

CLAMP L:35

€ 2.50

8

3674043401
ref: 8

FUSE BOX ASSY

€ 61.00

9

0948110101
ref: 9

FUSE(10A)

€ 2.50

10

0948115101
ref: 10

FUSE(15A)

€ 1.50

11

3710049201
ref: 11

SWITCH ASSY,IGNITION

€ 141.00

12

3715247010
ref: 12
07130-0616B

BOLT

€ 3.00

13

0832121068
ref: 13
08321-01067

LOCK WASHER

€ 2.50

14

3714647010
ref: 14

KEY,BLANK

€ 15.00

15

3774004572
ref: 15
37740-48071

SWITCH ASSEMBLY,STOP LAMP

€ 22.00

16

0944306030
ref: 16
09443-06048

SPRING

€ 4.50

17

3784043500
ref: 17
37840-43502

SWITCH ASSEMBLY,SIDE STAND

€ 74.00

18

0211205108
ref: 18
02112-05107

SCREW

€ 2.00

19

0832121058
ref: 19
08321-0105A

LOCK WASHER

€ 2.00

20

0832221058
ref: 20
08322-01057

WASHER

€ 2.50

21

0940406401
ref: 21
09404-06432

CLAMP L:35

€ 2.50

22

3850143560
ref: 22
38501-43561

HORN ASSEMBLY,HIGH PITCH

€ 51.00

23

3850243560
ref: 23
38502-43561

HORN ASSEMBLY,LOW PITCH

€ 38.00

24

0172408165
ref: 24
01500-0816B

BOLT

€ 2.00

all assemblies
