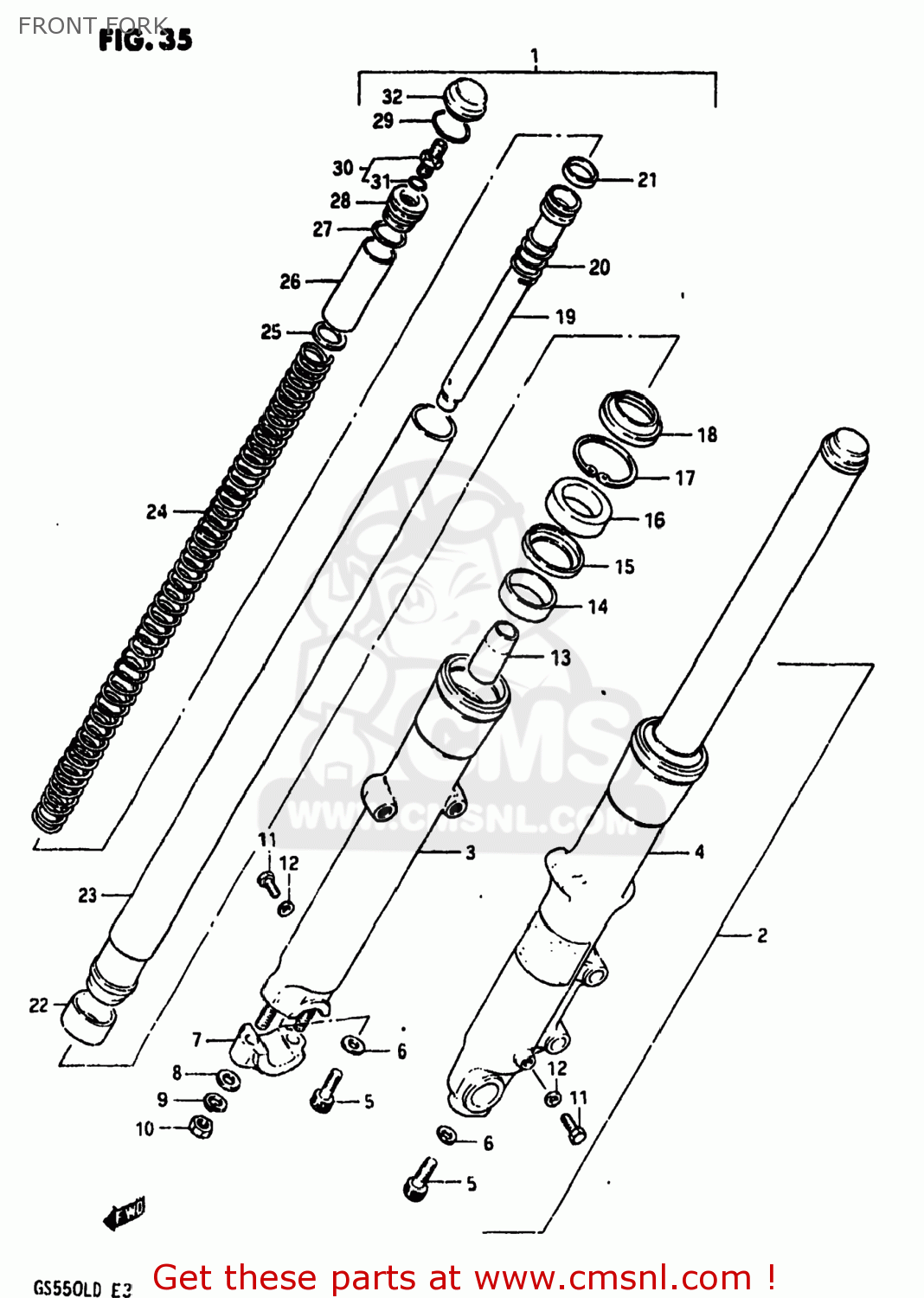

FRONT FORK

ref

part #

description

quantity

1

5110343500
ref: 1

DAMPER ASSEMBLY,RIGHT

€ 218.50

2

5110443510
ref: 2

DAMPER ASSEMBLY,LEFT

€ 284.50

3

5113043500
ref: 3
51130-43530

TUBE,FORK,OUTER,RIGHT

€ 124.00

4

5114043500
ref: 4
51140-43530

TUBE,FORK,LEFT,OUTER

€ 128.50

5

5114748130
ref: 5

BOLT(8X27)

€ 3.50

6

5114831030
ref: 6
51148-36011

GASKET (NAS)

€ 4.00

7

5113243500
ref: 7

HOLDER,AXLE,RIGHT

€ 23.00

8

0832221088
ref: 8
08322-01087

WASHER

€ 2.00

9

0832121088
ref: 9
08321-01087

LOCK WASHER

€ 2.00

10

0914008005
ref: 10
09140-08017

NUT (8MM)

€ 1.50

11

0110706088
ref: 11
09100-06157

BOLT

€ 2.50

12

5118331030
ref: 12

GASKET,DRAIN,PLUG (NAS)

€ 4.00

13

5119543500
ref: 13
51195-45030

PIECE,OIL LOCK

€ 16.00

14

5115231300
ref: 14

BUSHING,GUIDE

€ 23.50

15

5116834210
ref: 15
51168-38A00

SPACER,SEAL

€ 5.50

16

5115309310
ref: 16
51153-03B30

OIL SEAL,FRONT FORK

€ 15.00

17

5155634320
ref: 17

CIRCLIP,INNTERNAL

€ 7.00

18

5157143500
ref: 18
51173-25D00

SEAL,DUST

€ 15.00

19

5114643500
ref: 19
51146-43501

CYLINDER,FRONT FORK

€ 27.00

20

5117738400
ref: 20

SPRING

€ 3.00

21

5119645200
ref: 21

RING,PISTON

€ 5.50

22

5112134210
ref: 22

PISTON

€ 20.50

23

5111043500
ref: 23

TUBE,INNER

€ 141.00

24

5117143500
ref: 24

SPRING

€ 16.00

25

5119243500
ref: 25
51192-20510

SPRING,JOINT

€ 2.00

26

5117643500
ref: 26

SPACER,SPRING

€ 4.00

27

5111743500
ref: 27

O RING

€ 4.50

28

5117243500
ref: 28

GUIDE,SPRING

€ 8.00

29

5116947400
ref: 29

RING,STOPPER

€ 2.50

30

5129345440
ref: 30

VALVE,AIR

€ 17.00

31

5111745440
ref: 31
09280-06005

O-RING

€ 2.50

32

5118943500
ref: 32

CAP,FR FORK

€ 7.00

all assemblies
