STAND

GS550L 1983 (D) USA (E03)

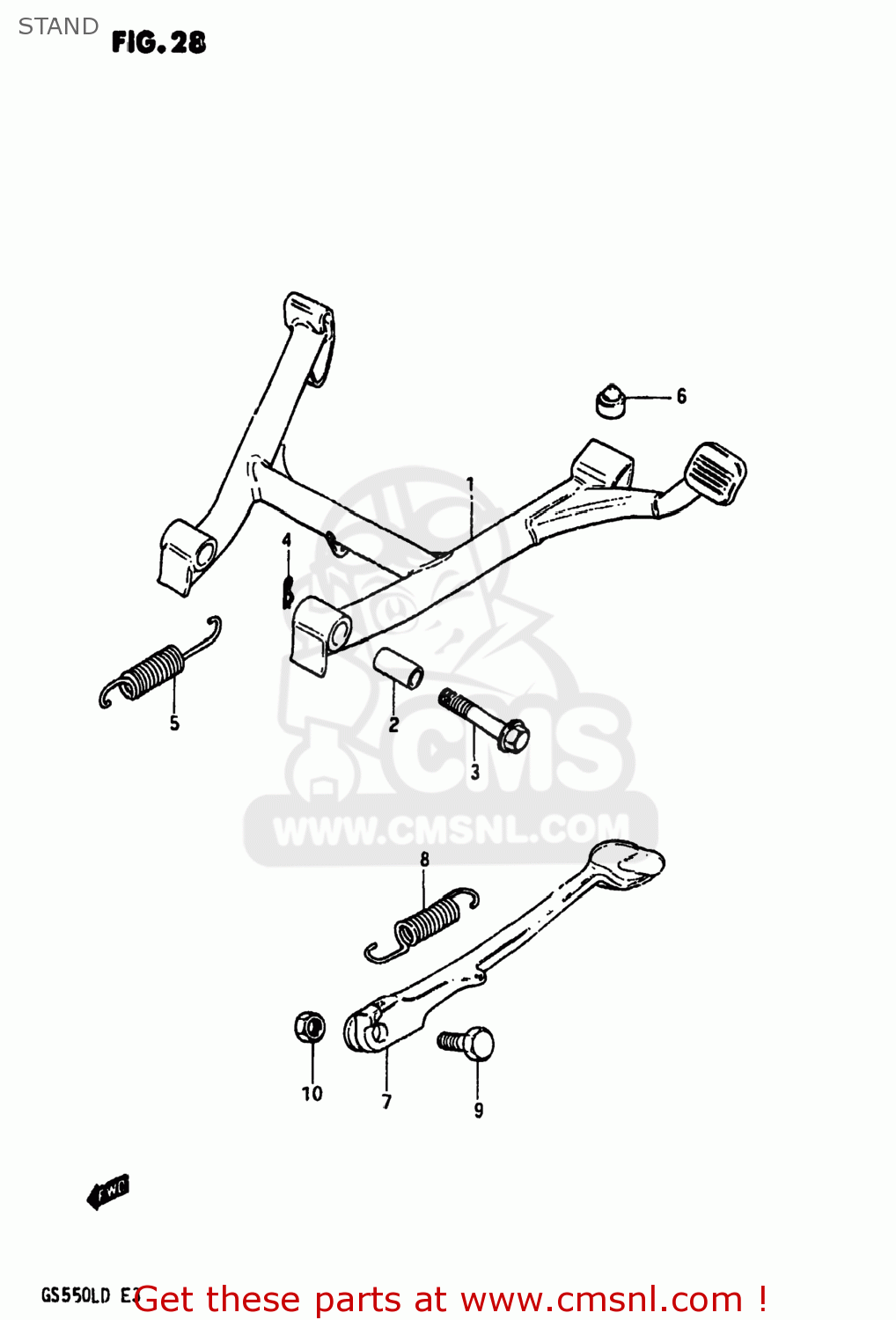

Stand diagram GS550L 1983 (D) USA (E03)

prices are in EUR

ref

part #

description

quantity

4210043500
ref: 1
42100-43501

STAND,CENTER

€ 123.50

0918010084
ref: 2

SPACER (10.5X16X31.8)

€ 3.00

0910110028
ref: 3

BOLT 10X50

€ 4.50

0938510001
ref: 4
09385-10005

CLIP

€ 1.50

0944318012
ref: 5

SPRING

€ 9.00

0932110001
ref: 6

CUSHION

€ 2.50

4231143500291
ref: 7
42311-43501-291

STAND,SIDE

€ 0.00

0944317005
ref: 8
09443-17008-XC0

SPRING

€ 11.50

0911110019
ref: 9
09111-10047

BOLT L:30

€ 4.50

0831022108
ref: 10
08310-00107

NUT

€ 2.50
