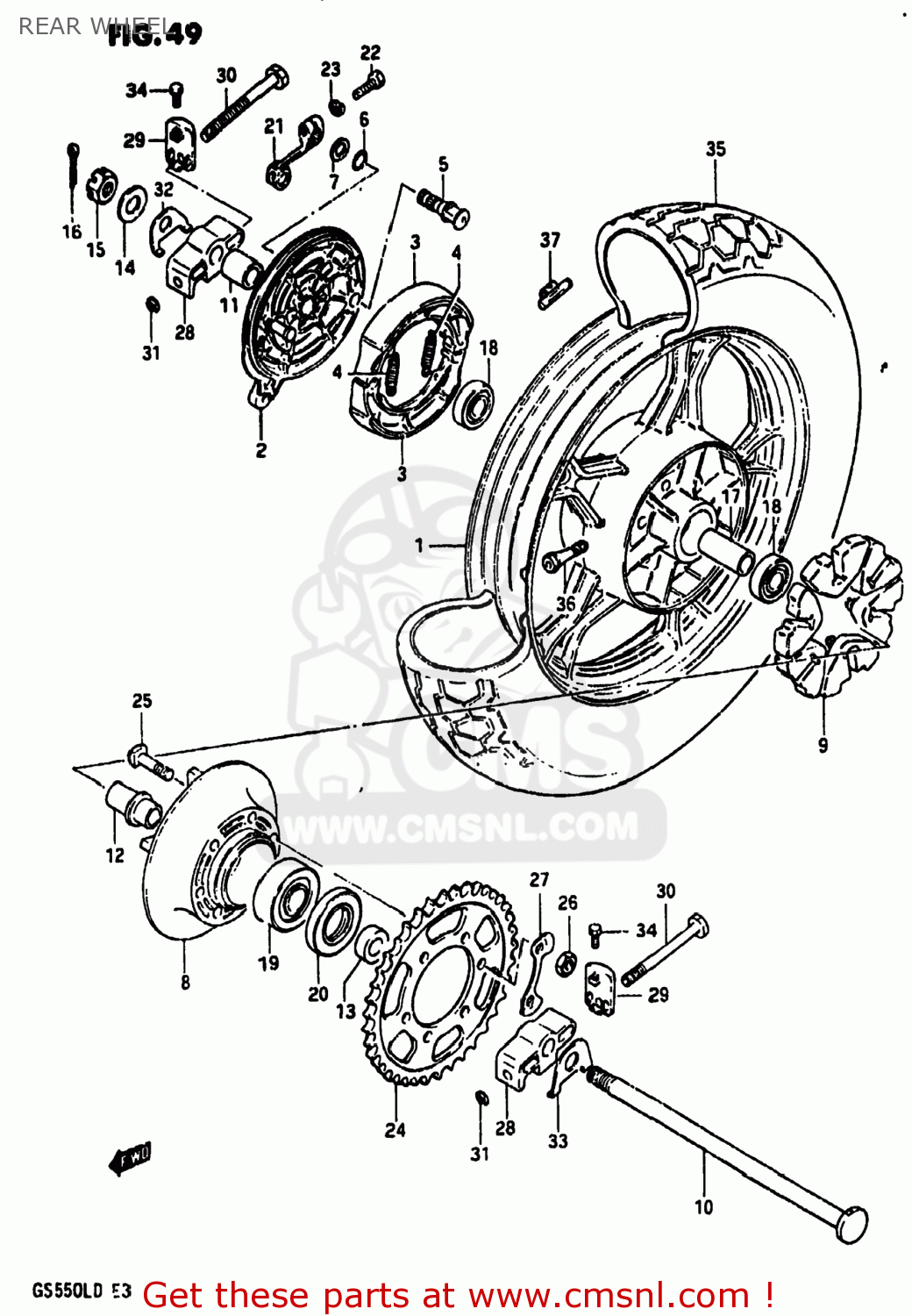

REAR WHEEL

ref

part #

description

quantity

1

6415043500291
ref: 1

WHEEL,REAR

€ 291.00

1

6415043500291
ref: 1

WHEEL,REAR

€ 291.00

2

6421015500
ref: 2

PANEL,REAR HUB

€ 126.00

3

6441011301
ref: 3
64400-11860

SHOE,BRAKE

€ 29.50

4

5542030000
ref: 4

SPRING,BRAKE SHOE

€ 3.50

5

5444008003
ref: 5
54440-08004

CAM,FRONT BRAKE

€ 19.00

6

0928015001
ref: 6
09280-15003

O-RING,BOSS

€ 2.00

7

0916015001
ref: 7
09160-15048

WASHER (15X24X1.6)

€ 2.50

8

6461131001
ref: 8
64611-31003

DRUM,REAR SPROCKET MOUNT

€ 140.00

9

6465131000
ref: 9
64651-31001

ABSORBER,REAR HUB SHOCK

€ 9.50

10

6471115501
ref: 10
64711-15502

AXLE,REAR

€ 51.50

11

0918017070
ref: 11

SPACER (17.5X28X35)

€ 13.00

12

6473331300
ref: 12

RETAINER,RR SPROCKET DRUM

€ 16.50

13

0918017068
ref: 13

SPACER (17X33X12.5)

€ 0.00

14

0832211168
ref: 14
08322-01167

WASHER

€ 2.00

15

0914116001
ref: 15

NUT

€ 6.50

16

0411140308
ref: 16
04111-4030A

PIN,COTTER

€ 1.50

17

0918017069
ref: 17

SPACER(17.5X25X70)

€ 15.00

18

0814363037
ref: 18

BEARING

€ 23.00

19

0811363050
ref: 19
09262-25073

BEARING

€ 21.50

20

0928533001
ref: 20

SEAL,OIL(33X62X7)

€ 20.00

21

6445115500
ref: 21

LEVER,REAR BRAKE CAM

€ 23.00

22

0110706258
ref: 22
01500-06257

BOLT

€ 2.00

23

0832121068
ref: 23
08321-01067

LOCK WASHER

€ 2.50

24

6451131731
ref: 24

SPROCKET,REAR

€ 62.00

25

0911910002
ref: 25
09105-10001

BOLT

€ 3.50

26

0914010026
ref: 26
09140-10026-XC0

NUT

€ 2.00

27

0916910007
ref: 27

WASHER

€ 7.50

28

6141115500
ref: 28

BODY,CHAIN ADJUSTER

€ 23.50

29

6142115500
ref: 29
61421-15501

PLATE,CHAIN ADJUSTER

€ 107.00

30

6143116700
ref: 30

BOLT,CHAIN ADJUSTER

€ 4.50

31

0833211046
ref: 31
08332-1104A

E RING

€ 2.00

32

6471343400
ref: 32

WASHER,CHAIN ADJUSTER RH

€ 3.50

33

6471243401
ref: 33

WASHER,CHAIN ADJUSTER

€ 3.00

34

0912805004
ref: 34

BOLT(5X8)

€ 2.00

35-1

6510043510
ref: 35-1
65100-15515

TIRE

€ 128.50

35-2

6510043550
ref: 35-2
65100-43560

TIRE

€ 139.00

36

4313075150
ref: 36
43130-78030

VALVE,TIRE

€ 14.50

37-1

5541145100
ref: 37-1
55412-17G00

BALANCER,WHEEL

€ 7.00

37-2

5541245100
ref: 37-2

BALANCER,WHEEL

€ 4.00

37-3

5541345100
ref: 37-3
55411-00A00-10V

BALANCER,WHEEL

€ 6.50
