CRANKCASE COVER (~E.NO.103836)
GS650E 1981 (X) USA (E03)

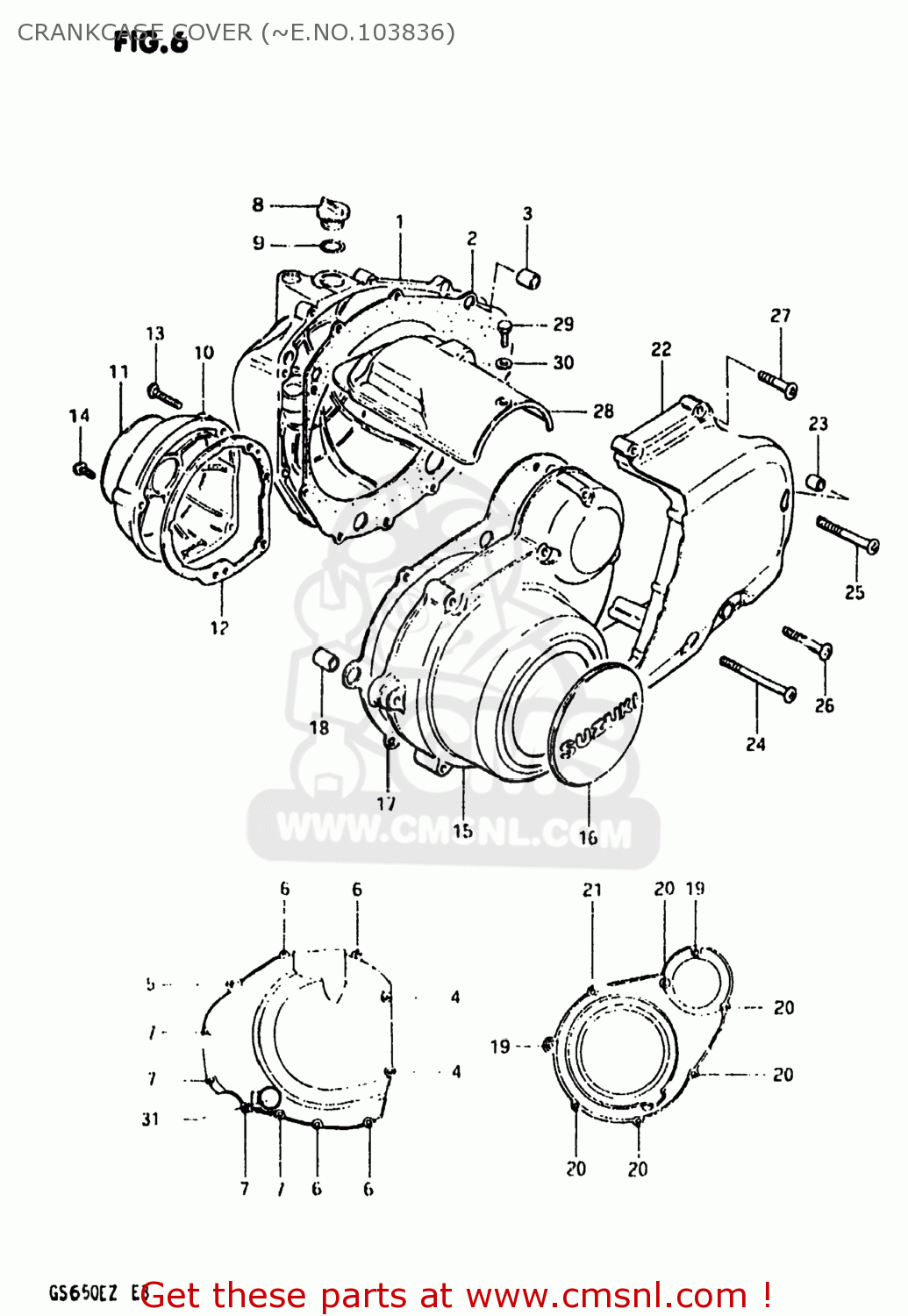

Crankcase cover (~e.no.103836) diagram GS650E 1981 (X) USA (E03)
CRANKCASE COVER (~E.NO.103836) GS650E 1981 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1134034500
ref: 1
11340-34501
COVER,CLUTCH
€ 82.50
2
1148247000
ref: 2
11482-47000-H17
GASKET,CLUTCH COVER (MCA)
€ 17.00
3
0920613001
ref: 3
04211-13189
PIN
€ 2.50
4
0211206658
ref: 4
02112-06657
SCREW 6X65
€ 2.00
5
0211206458
ref: 5
02112-06457
SCREW (6X45)
€ 2.00
6
0211206258
ref: 6
02112-06257
SCREW
€ 2.00
7
0211206208
ref: 7
02112-06207
SCREW
€ 2.00
8
0925930001
ref: 8
09200-30810
CAP
€ 8.50
9
0928032005
ref: 9
O RING(D:2.2,ID:32)
€ 2.00
10
1138147001
ref: 10
11381-47002
COVER,CONTACT BREAKER
€ 58.50
11
6823534500
ref: 11
EMBLEM,CONTACT BREAKER COVER
€ 13.00
12
1149147000
ref: 12
GASKET,CONTACT BREAKER COVER (NAS)
€ 3.00
13
0211205308
ref: 13
02112-0530A
SCREW
€ 1.50
14
0211205168
ref: 14
02112-05167
SCREW
€ 2.50
15
1135147000
ref: 15
11351-47001
COVER
€ 174.50
16
6823334200
ref: 16
EMBLEM,MAGNETO COVER
€ 28.50
17
1148347000
ref: 17
11483-47000-H17
GASKET,MAGNETO COVER (MCA)
€ 16.50
18
0920613001
ref: 18
04211-13189
PIN
€ 2.50
19
0211206458
ref: 19
02112-06457
SCREW (6X45)
€ 2.00
20
0211206408
ref: 20
02112-06407
SCREW
€ 2.00
21
0211206358
ref: 21
02112-06357
SCREW (6X35)
€ 2.50
22
1136134500
ref: 22
11360-34501
COVER,SPROCKET
€ 41.00
23
0421109129
ref: 23
PIN
€ 2.00
24
0211206958
ref: 24
02112-0695B
SCREW (6*95)
€ 2.50
25
0211206858
ref: 25
02112-06857
SCREW 6X85
€ 2.50
26
0211206808
ref: 26
02112-06807
SCREW 6X80
€ 3.00
27
0211206308
ref: 27
02112-06307
SCREW 6X30
€ 2.50
28
1138247001
ref: 28
COVER,STARTER MOTOR
€ 19.00
29
0110405108
ref: 29
01500-0510B
BOLT
€ 1.50
30
0832221058
ref: 30
08322-01057
WASHER
€ 2.50
31
1197145010
ref: 31
LENS,OIL LEVEL CHECK
€ 13.00
