STEERING STEM (MODEL Z)
GS650E 1981 (X) USA (E03)

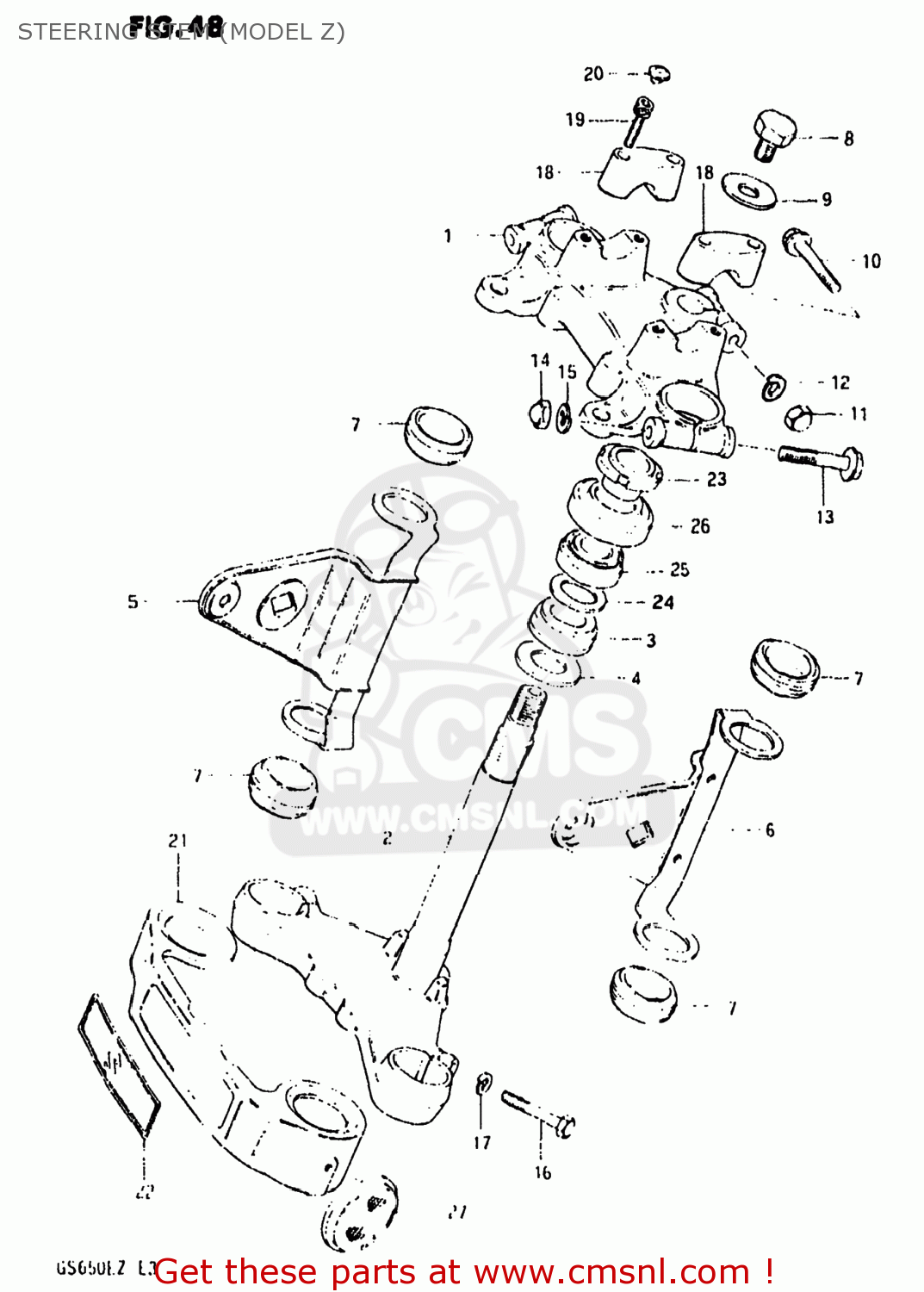

Steering stem (model z) diagram GS650E 1981 (X) USA (E03)
STEERING STEM (MODEL Z) GS650E 1981 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5131134200291
ref: 1
HEAD,STEERING STEM
€ 87.50
2
5140134810
ref: 2
51400-44870
STEM,STEERING
€ 215.50
3
0926530005
ref: 3
09265-30009
BEARING
€ 49.50
4
0821130402
ref: 4
09181-30184
WASHER,THRUST
€ 4.00
5
5153034200291
ref: 5
51500-34810-291
BRACKET,HEADLAMP,RIGHT
€ 57.50
6
5154034200291
ref: 6
BRACKET,HEADLAMP,LEFT
€ 43.00
7
5155347000
ref: 7
51553-34280
CUSHION,HEADLAMP BRACKET
€ 3.50
8
0910412015
ref: 8
BOLT 12X20
€ 4.00
9
0916012048
ref: 9
WASHER (12.5X26X1.6)
€ 2.00
10
0151708508
ref: 10
01550-08507
BOLT
€ 3.50
11
0831311085
ref: 11
08313-10083
NUT,M8X1.25X12
€ 2.00
12
0832121088
ref: 12
08321-01087
LOCK WASHER
€ 2.00
13
0151710558
ref: 13
01550-10557
BOLT 10X55
€ 3.00
14
0914510002
ref: 14
NUT
€ 4.00
15
0832131108
ref: 15
08321-01107
LOCK WASHER
€ 2.00
16
0110710408
ref: 16
01500-10407
BOLT 10X40
€ 3.00
17
0832121108
ref: 17
08321-01107
LOCK WASHER
€ 2.00
18
5621134300291
ref: 18
HOLDER,HANDLEBAR(BLACK)
€ 42.00
19
0910608013
ref: 19
07130-0830A
BOLT
€ 3.00
20
0925006004
ref: 20
CAP(OD:14.5)
€ 1.50
21
5187134501
ref: 21
COVER,FRONT FORK
€ 34.00
22
6821134500
ref: 22
EMBLEM
€ 8.50
23
5163134200
ref: 23
NUT,STEERING STEM
€ 23.00
24
0916018002
ref: 24
WASHER(18.5X24X1)
€ 2.00
25
0926525008
ref: 25
09265-25019
TAPER,ROLLER BEARING
€ 48.50
26
5164340501
ref: 26
51643-40502
DUST SEAL,STEERING,UPPER
€ 8.00
27
3595049080
ref: 27
REFLEX REFLECTOR,RR
€ 17.50
