FRONT FORK (MODEL X)
GS650E 1981 (X) USA (E03)

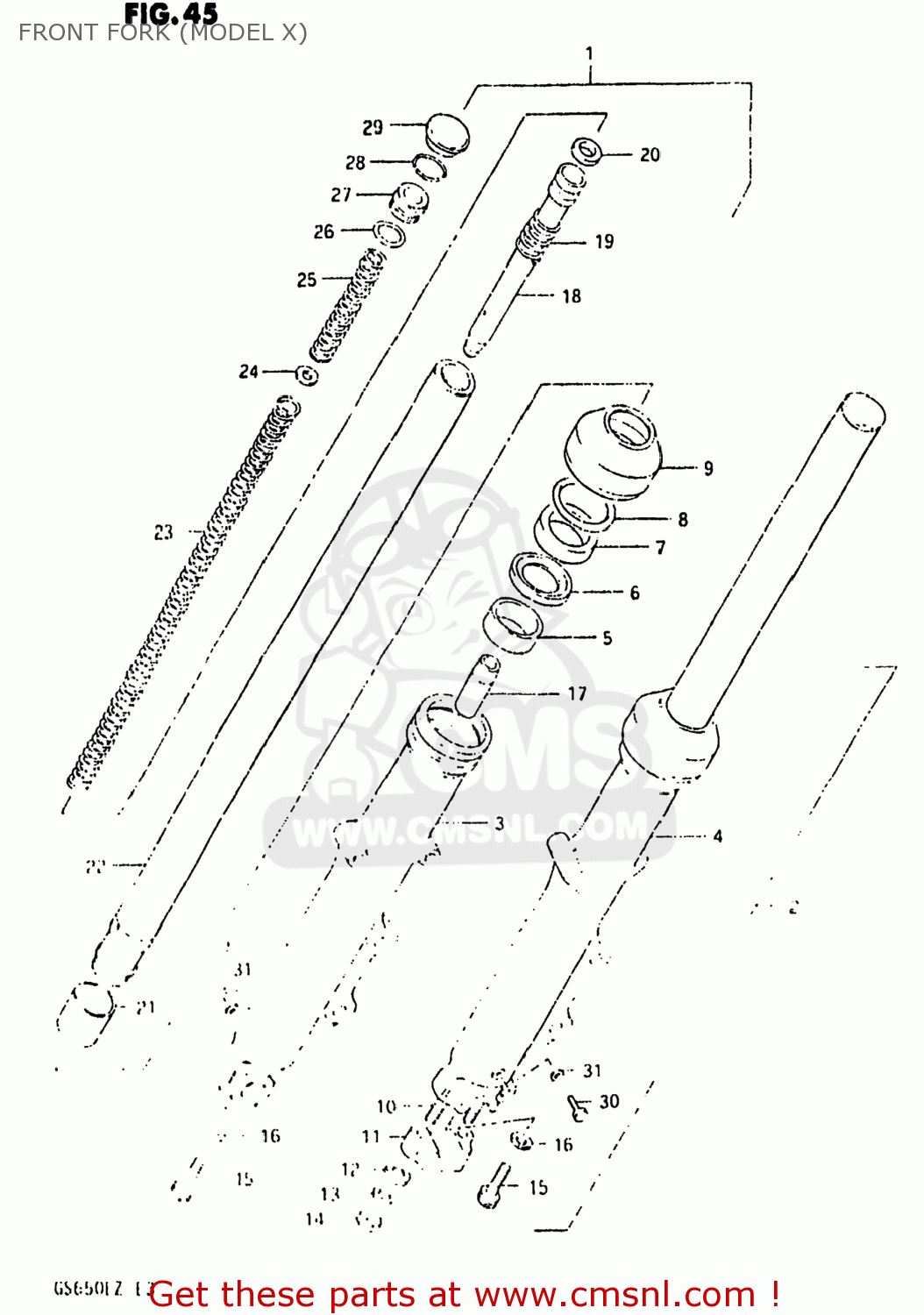

Front fork (model x) diagram GS650E 1981 (X) USA (E03)
FRONT FORK (MODEL X) GS650E 1981 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5110334520
ref: 1
DAMPER ASSEMBLY,RIGHT
€ 185.50
2
5110434520
ref: 2
DAMPER ASSEMBLY,LEFT
€ 163.50
3
5113034300291
ref: 3
TUBE,FORK,OUTER,RIGHT
€ 0.00
4
5114034300291
ref: 4
TUBE,OUTER,LEFT
€ 0.00
5
5115245400
ref: 5
BUSH,GUIDE
€ 14.00
6
5116845031
ref: 6
51168-30B00
SPACER,SEAL
€ 5.00
7
5115334200
ref: 7
51153-19D10
OIL SEAL,FRONT FORK
€ 14.00
8
5115631231
ref: 8
51156-01A00
CIRCLIP,FORK OIL SEAL
€ 3.50
9
5157134200
ref: 9
51571-20520
BOOT
€ 19.50
10
0142108258
ref: 10
01421-0825A
STUD 8X25
€ 2.50
11
5113244040291
ref: 11
51132-44040-15T
HOLDER,AXLE
€ 38.50
12
0832221088
ref: 12
08322-01087
WASHER
€ 2.00
13
0832121088
ref: 13
08321-01087
LOCK WASHER
€ 2.00
14
0831012088
ref: 14
08310-00087
NUT
€ 2.00
15
5114748130
ref: 15
BOLT(8X27)
€ 3.50
16
5114831030
ref: 16
51148-36011
GASKET (NAS)
€ 4.00
17
5119545030
ref: 17
PIECE,OIL LOCK
€ 16.00
18
5114634200
ref: 18
51146-47600
CYLINDER,FRONT FORK
€ 14.50
19
5117745030
ref: 19
SPRING,FORK REBOUND
€ 4.00
20
5119631230
ref: 20
RING
€ 7.50
21
5112145400
ref: 21
PISTON
€ 22.00
22
5111047400
ref: 22
TUBE,FORK,INNER
€ 153.00
23
5118447400
ref: 23
SPRING,FRONT FORK
€ 20.00
24
5119247200
ref: 24
WASHER,SPRING
€ 2.50
25
5117147030
ref: 25
SPRING
€ 0.00
26
5111731030
ref: 26
51181-31030
O-RING
€ 3.50
27
5117547400
ref: 27
SPRING SEAT B
€ 5.50
28
5116947400
ref: 28
RING,STOPPER
€ 2.50
29
5118931230
ref: 29
CAP
€ 6.50
30
0910006011
ref: 30
BOLT(6X8)
€ 2.50
31
5118331030
ref: 31
GASKET,DRAIN,PLUG (NAS)
€ 4.00
