CRANKCASE COVER (E.NO.103837~)
GS650E 1981 (X) USA (E03)

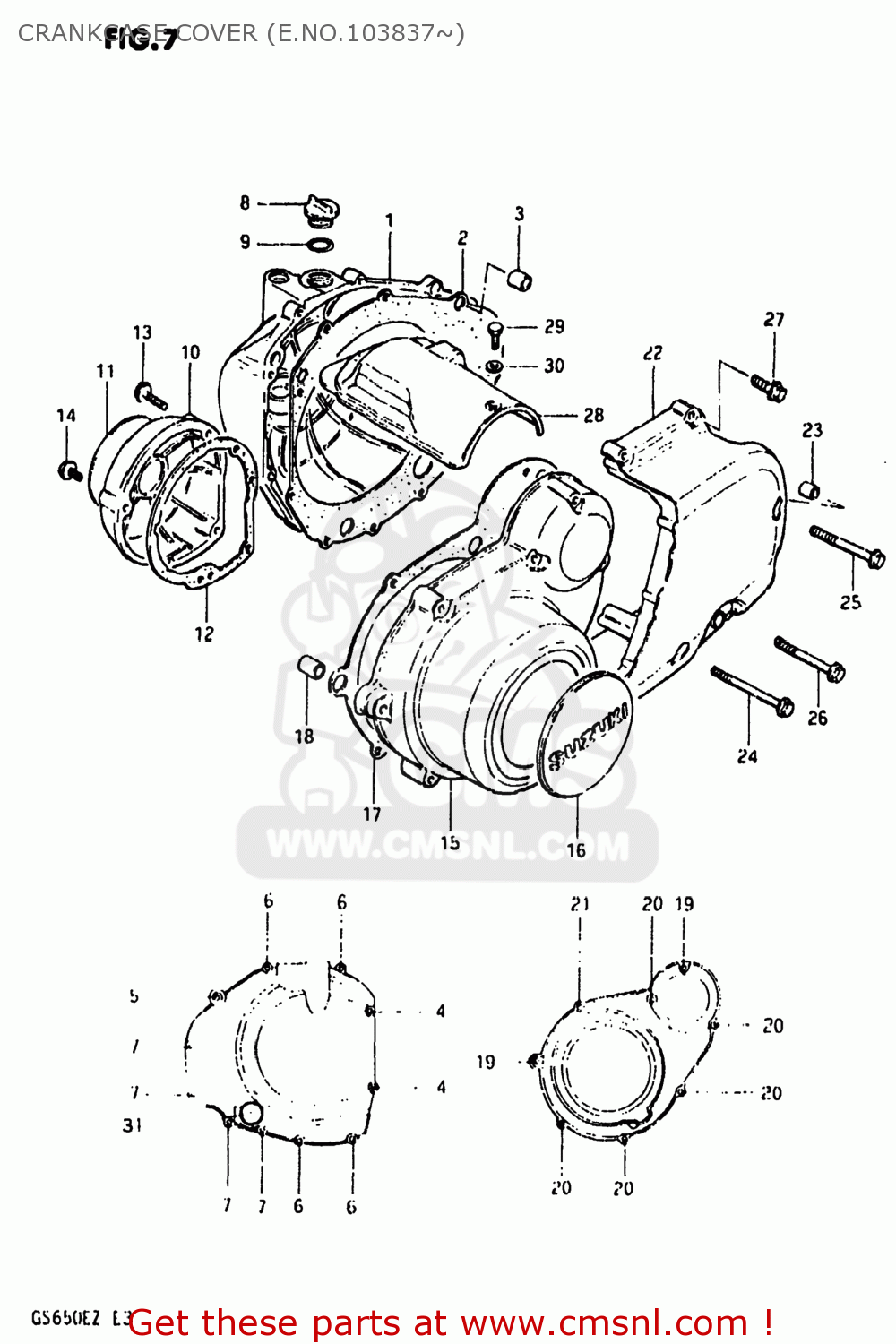

Crankcase cover (e.no.103837~) diagram GS650E 1981 (X) USA (E03)
CRANKCASE COVER (E.NO.103837~) GS650E 1981 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1134034501
ref: 1
COVER,CLUTCH
€ 82.50
2
1148247000
ref: 2
11482-47000-H17
GASKET,CLUTCH COVER (MCA)
€ 17.00
3
0920613001
ref: 3
04211-13189
PIN
€ 2.50
4
0154706658
ref: 4
01547-06657
BOLT (6X65)
€ 2.00
5
0154706458
ref: 5
01547-06457
BOLT
€ 2.50
6
0154706258
ref: 6
01547-06257
BOLT
€ 2.50
7
0154706208
ref: 7
01547-06207
BOLT (6X20)
€ 2.50
8
0925930001
ref: 8
09200-30810
CAP
€ 8.50
9
0928032005
ref: 9
O RING(D:2.2,ID:32)
€ 2.00
10
1138147002
ref: 10
COVER,CONTACT BREAKER
€ 58.50
11
6823534500
ref: 11
EMBLEM,CONTACT BREAKER COVER
€ 13.00
12
1149147000
ref: 12
GASKET,CONTACT BREAKER COVER (NAS)
€ 3.00
13
0154405308
ref: 13
01547-05307
BOLT (5*30)
€ 2.00
14
0154405168
ref: 14
01547-05167
BOLT 5X16
€ 2.00
15
1135147001
ref: 15
COVER,MAGNETO
€ 174.50
16
6823334200
ref: 16
EMBLEM,MAGNETO COVER
€ 28.50
17
1148347000
ref: 17
11483-47000-H17
GASKET,MAGNETO COVER (MCA)
€ 16.50
18
0920613001
ref: 18
04211-13189
PIN
€ 2.50
19
0154706458
ref: 19
01547-06457
BOLT
€ 2.50
20
0154706408
ref: 20
01547-06407
BOLT (6X40)
€ 2.50
21
0154706358
ref: 21
01547-06357
BOLT (6X35)
€ 2.50
22
1136034501
ref: 22
COVER,SPROCKET
€ 41.00
23
0421109129
ref: 23
PIN
€ 2.00
24
0154706958
ref: 24
01547-06957
BOLT 6X95
€ 4.00
25
0154706858
ref: 25
01547-06857
BOLT (6X85)
€ 2.50
26
0154706808
ref: 26
01547-0680B
BOLT
€ 3.50
27
0154706308
ref: 27
01547-06307
BOLT (6X30)
€ 2.50
28
1138247001
ref: 28
COVER,STARTER MOTOR
€ 19.00
29
0110405108
ref: 29
01500-0510B
BOLT
€ 1.50
30
0832221058
ref: 30
08322-01057
WASHER
€ 2.50
31
1197145010
ref: 31
LENS,OIL LEVEL CHECK
€ 13.00
