SEAT

GS650E 1981 (X) USA (E03)

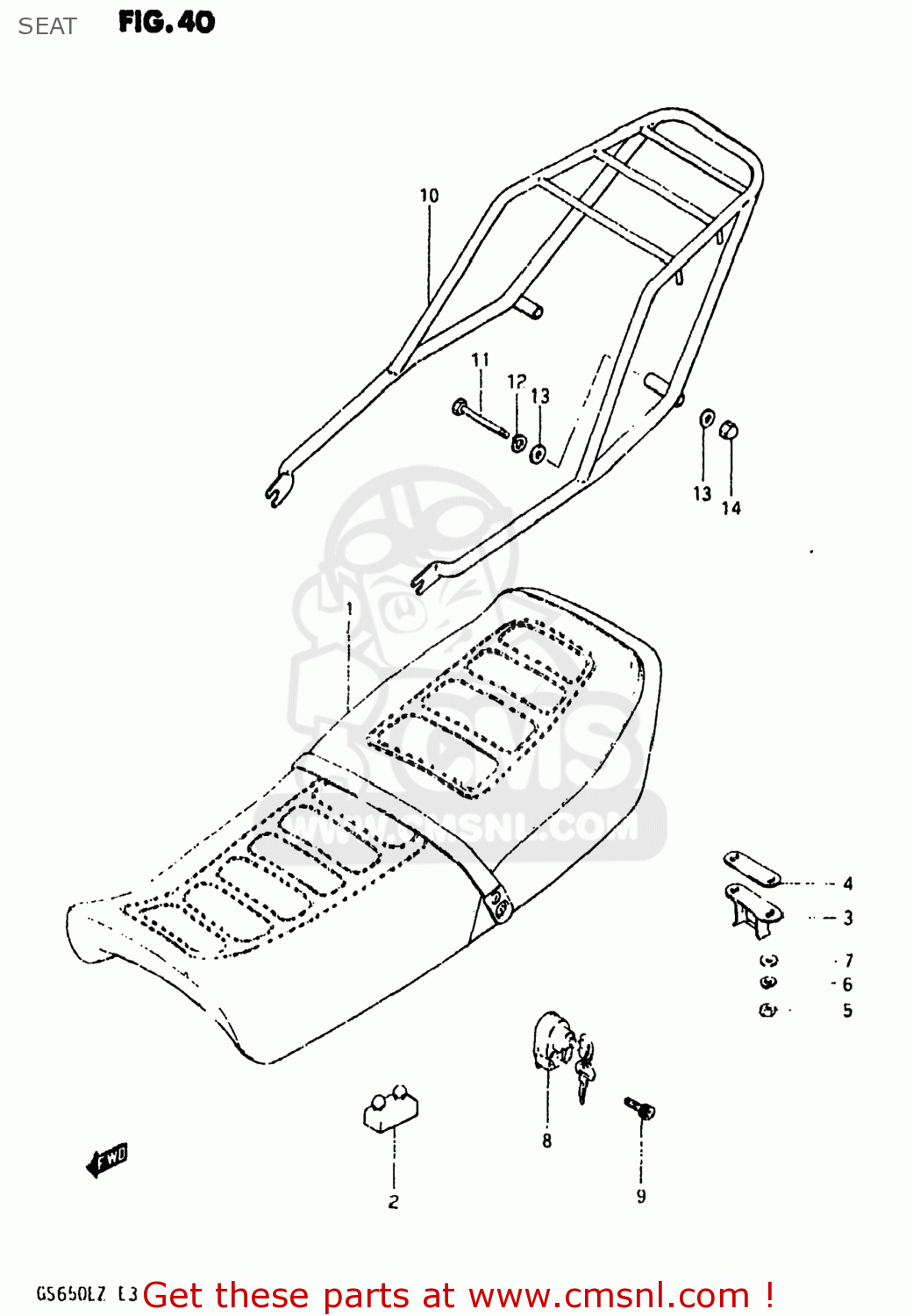

Seat diagram GS650E 1981 (X) USA (E03)

SEAT GS650E 1981 (X) USA (E03)

SEAT GS650E 1981 (X) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

451003452041G
ref: 1-1
45100-34522-48G

SEAT ASSEMBLY

€ 338.00

1-2

451003452147G
ref: 1-2
45100-34522-48G

SEAT ASSEMBLY

€ 338.00

2

0932108006
ref: 2

CUSHION

€ 3.00

3

4521044101
ref: 3

STRIKER,SEAT LOCK

€ 32.50

4

4521744100
ref: 4

SHIM,SEAT LOCK STRIKER

€ 4.50

5

0831022068
ref: 5
08310-00067

NUT 6MM

€ 2.50

6

0832121068
ref: 6
08321-01067

LOCK WASHER

€ 2.50

7

0832221068
ref: 7
08322-01067

WASHER

€ 2.00

8

9570034210
ref: 8

LOCK ASSY,HELMET

€ 59.00

9

0910605008
ref: 9
07130-0525B

BOLT 5X25

€ 2.00

10

4631034500
ref: 10

CARRIER

€ 39.50

11

0910008024
ref: 11
09100-08228

BOLT 8X105

€ 4.00

12

0832121088
ref: 12
08321-01087

LOCK WASHER

€ 2.00

13

0832211088
ref: 13
08322-01087

WASHER

€ 2.00

14

0831311088
ref: 14
08313-10087

NUT

€ 2.50
