Buy Suzuki GS Parts Online


REAR WHEEL

GS650E 1981 (X) USA (E03)

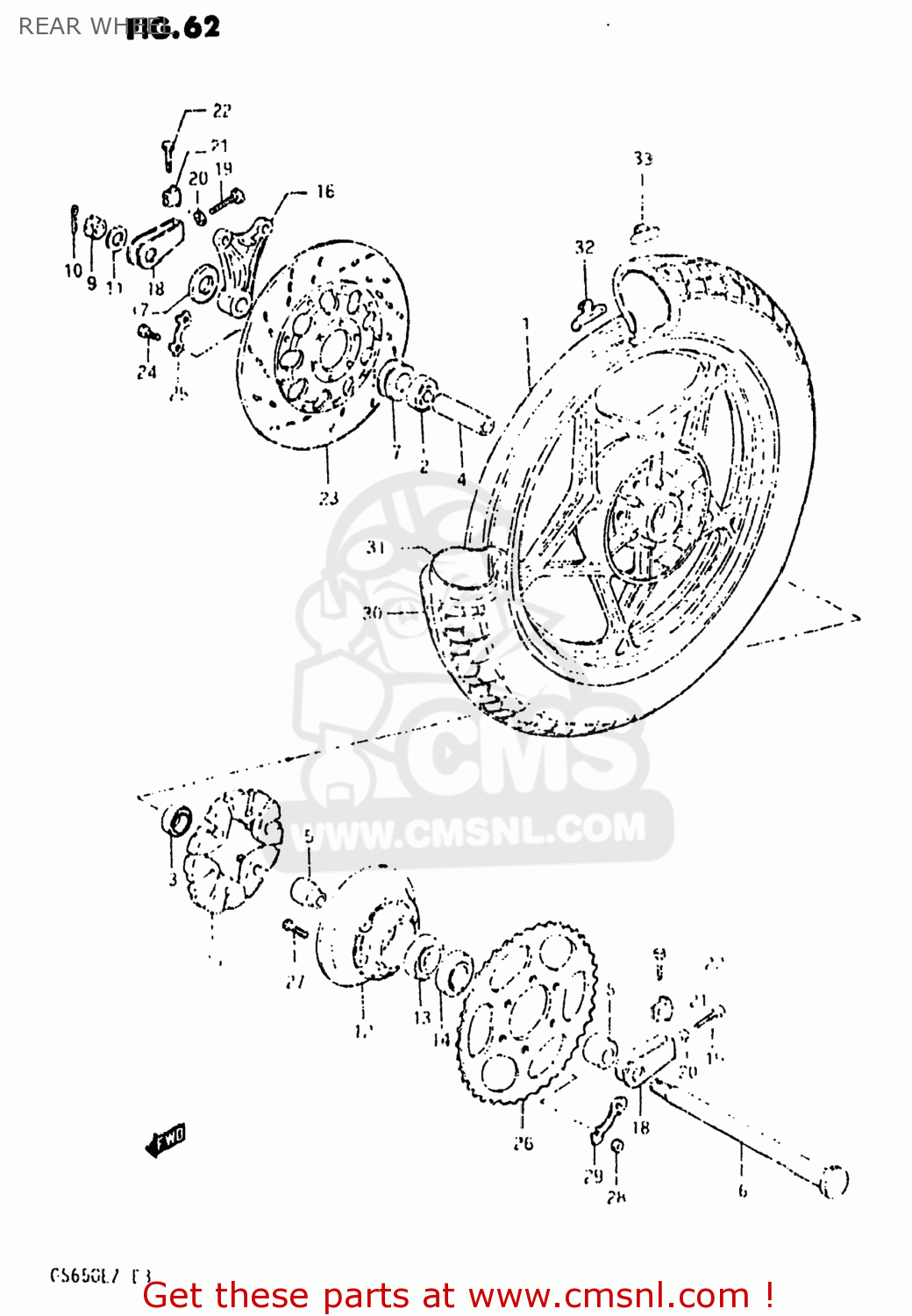

Rear wheel diagram GS650E 1981 (X) USA (E03)

REAR WHEEL GS650E 1981 (X) USA (E03)
REAR WHEEL GS650E 1981 (X) USA (E03)
REAR WHEEL GS650E 1981 (X) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
641114930012U
ref: 1
CASTING WHEEL,REAR 2.15
641114930012U
€ 420.00
2
0813363037
ref: 2
BEARING
0813363037
€ 28.50
3
0815363037
ref: 3
BEARING
0815363037
€ 19.50
4
6473145000
ref: 4
SPACER,REAR HUB BEARING
6473145000
€ 18.50
5
6473347000
ref: 5
RETAINER,REAR SPROCKET D
€ 16.50
6
6471147200
ref: 6
AXLE,REAR
6471147200
€ 30.50
7
6474047001
ref: 7
64740-47002
SPACER,REAR AXLE
6474047001
€ 12.50
8
0918017048
ref: 8
SPACER (17X33X21.1)
0918017048
€ 7.50
9
0914116001
ref: 9
NUT
0914116001
€ 6.50
10
0411140308
ref: 10
04111-4030A
PIN,COTTER
0411140308
€ 1.50
11
0916017013
ref: 11
09160-17050
WASHER (17X30X3.2)
0916017013
€ 2.00
12
6461131001
ref: 12
64611-31003
DRUM,REAR SPROCKET MOUNT
€ 140.00
13
0811363060
ref: 13
09262-30077
BEARING
0811363060
€ 47.50
14
0928533001
ref: 14
SEAL,OIL(33X62X7)
0928533001
€ 20.00
15
6465131000
ref: 15
64651-31001
ABSORBER,REAR HUB SHOCK
6465131000
€ 9.50
16
6972147001
ref: 16
BRACKET,RR,CALIPER
6972147001
€ 27.50
17
6474147300
ref: 17
SPACER,REAR CARIPER BRACKET
€ 7.00
18-1
6141033000
ref: 18-1
61410-47200
ADJUSTER,CHAIN
6141033000
€ 58.00
18-2
6141047200
ref: 18-2
ADJUSTER,CHAIN
6141047200
€ 58.00
19-1
0910408006
ref: 19-1
09104-08034
BOLT
0910408006
€ 3.00
19-2
0910408018
ref: 19-2
09104-08034
BOLT 8X50
0910408018
€ 3.00
20
0831012088
ref: 20
08310-00087
NUT
0831012088
€ 2.00
21
6143331000
ref: 21
61433-3100V
SUPPORTER,CHAIN ADJUST
6143331000
€ 22.50
22
0151708508
ref: 22
01550-08507
BOLT
0151708508
€ 3.50
23
5921018450
ref: 23
DISC,RR BRAKE
5921018450
€ 446.00
24
0910008094
ref: 24
BOLT(8X30)
0910008094
€ 2.50
25
0916908016
ref: 25
WASHER
0916908016
€ 3.50
26-1
6451147620
ref: 26-1
SPROCKET,REAR (NT:45)
6451147620
€ 48.00
26-2
6451147650
ref: 26-2
SPROCKET,REAR
6451147650
€ 35.50
27
0911910002
ref: 27
09105-10001
BOLT
0911910002
€ 3.50
28
0914010026
ref: 28
09140-10026-XC0
NUT
0914010026
€ 2.00
29
0916910007
ref: 29
WASHER
0916910007
€ 7.50
30-1
6510034530
ref: 30-1
TIRE
€ 0.00
30-2
6510034550
ref: 30-2
TIRE
€ 0.00
31-1
6520015030
ref: 31-1
65200-49015
TUBE ASSEMBLY,WHEEL,INNER
€ 39.00
31-2
6520047620
ref: 31-2
TUBE ASSEMBLY,WHEEL,INNER
€ 0.00
32-1
5541147001
ref: 32-1
BALANCER,WHEEL
5541147001
€ 4.00
32-2
5541247001
ref: 32-2
BALANCER,WHEEL
5541247001
€ 3.50
33-1
5541145100
ref: 33-1
55412-17G00
BALANCER,WHEEL
5541145100
€ 7.00
33-2
5541245100
ref: 33-2
BALANCER,WHEEL
5541245100
€ 4.00
