CRANKCASE
GS650G 1982 (Z) USA (E03)

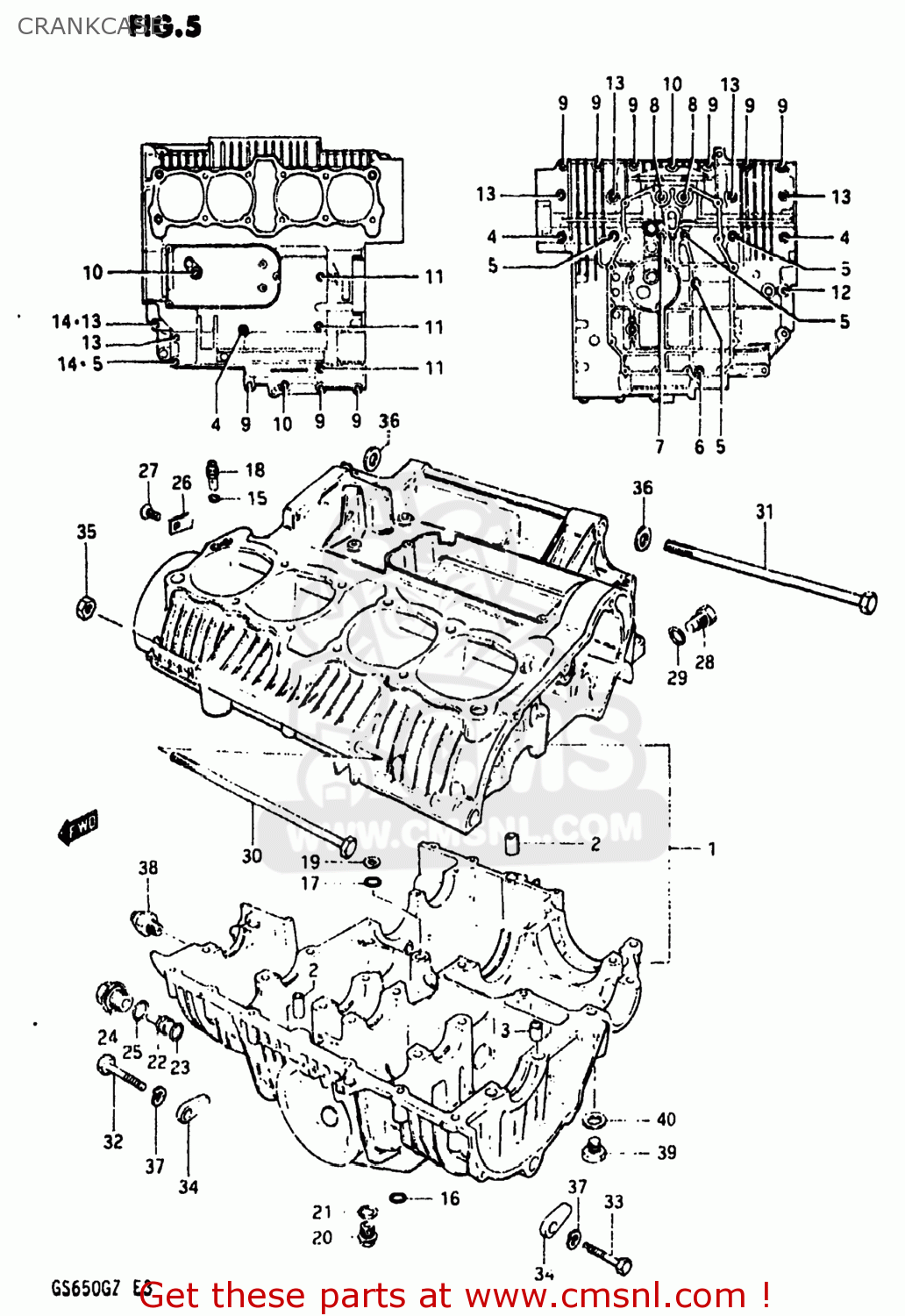

Crankcase diagram GS650G 1982 (Z) USA (E03)
CRANKCASE GS650G 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1130034870
ref: 1-1
11300-34873
CRANKCASE SET
€ 932.50
1-2
1130034871
ref: 1-2
11300-34873
CRANKCASE SET
€ 932.50
1-3
1130034872
ref: 1-3
11300-34873
CRANKCASE SET
€ 932.50
2
0920611005
ref: 2
09206-11017
PIN (11X20)(SUS)
€ 6.50
3
0920613004
ref: 3
PIN(10.4X13X22)
€ 3.00
4
0910308024
ref: 4
09103-08134
BOLT
€ 3.00
5
0910308026
ref: 5
09103-08109
BOLT
€ 3.50
6
0910308038
ref: 6
BOLT(8X135)
€ 4.00
7
0910308040
ref: 7
BOLT(8X140)
€ 4.00
8
0910608015
ref: 8
07130-0860B
BOLT
€ 4.50
9
0151706408
ref: 9
01550-06407
BOLT
€ 2.50
10
0151706558
ref: 10
01550-06557
BOLT
€ 2.50
11
0151706908
ref: 11
01550-06907
BOLT (6X90)
€ 2.00
12
0151708708
ref: 12
01550-08707
BOLT (8X70)
€ 2.00
13
0151708958
ref: 13
01550-08957
BOLT (8X95)
€ 3.50
14
0831616088
ref: 14
08316-10087
NUT
€ 2.50
15
0928004002
ref: 15
09280-04004
O-RING,OIL GALLERY JET
€ 2.00
16
0928012005
ref: 16
09280-12012
O-RING
€ 5.00
17
0928013001
ref: 17
O RING(D:3.2,ID:12.9)
€ 4.00
18
0949324009
ref: 18
JET(12)
€ 10.50
19
0821205161
ref: 19
WASHER
€ 1.50
20
0924716002
ref: 20
PLUG
€ 3.50
21
0916816002
ref: 21
GASKET(16X22X2) (NAS)
€ 2.00
22
1132945400
ref: 22
PIN,OIL GALLERY
€ 2.50
23
0928010005
ref: 23
09280-10016
SEAL (D:1.9 ID:9.8)
€ 3.50
24
0924718001
ref: 24
PLUG
€ 8.00
25
0928018004
ref: 25
O RING(D:2.4,ID:17.8)
€ 5.50
26
1131934200
ref: 26
PLATE,OIL GALLERY PLUG
€ 2.50
27
0212206168
ref: 27
02122-06167
SCREW
€ 2.00
28
0924712005
ref: 28
PLUG
€ 0.00
29
0916812002
ref: 29
GASKET(12.1X16.2X3.7) (NAS)
€ 2.00
30
0910010111
ref: 30
09103-10138
BOLT
€ 11.50
31
0910110010
ref: 31
09101-10010-XC0
BOLT 10X250
€ 49.50
32
0110710558
ref: 32
01500-1055A
BOLT 10X55
€ 3.50
34
0915910020
ref: 34
NUT
€ 7.50
35
0831931105
ref: 35
08319-3110A
NUT 10MM
€ 3.00
36
0832211108
ref: 36
08322-01107
WASHER
€ 2.50
37
0832121108
ref: 37
08321-01107
LOCK WASHER
€ 2.00
38
3782034200
ref: 38
37820-33D10
SWITCH ASSEMBLY
€ 29.00
39
0924714001
ref: 39
09247-14002
PLUG
€ 5.00
40
0916814004
ref: 40
GASKET(14X19.2X2) (NAS)
€ 2.50
