SEAT
GS650G 1982 (Z) USA (E03)

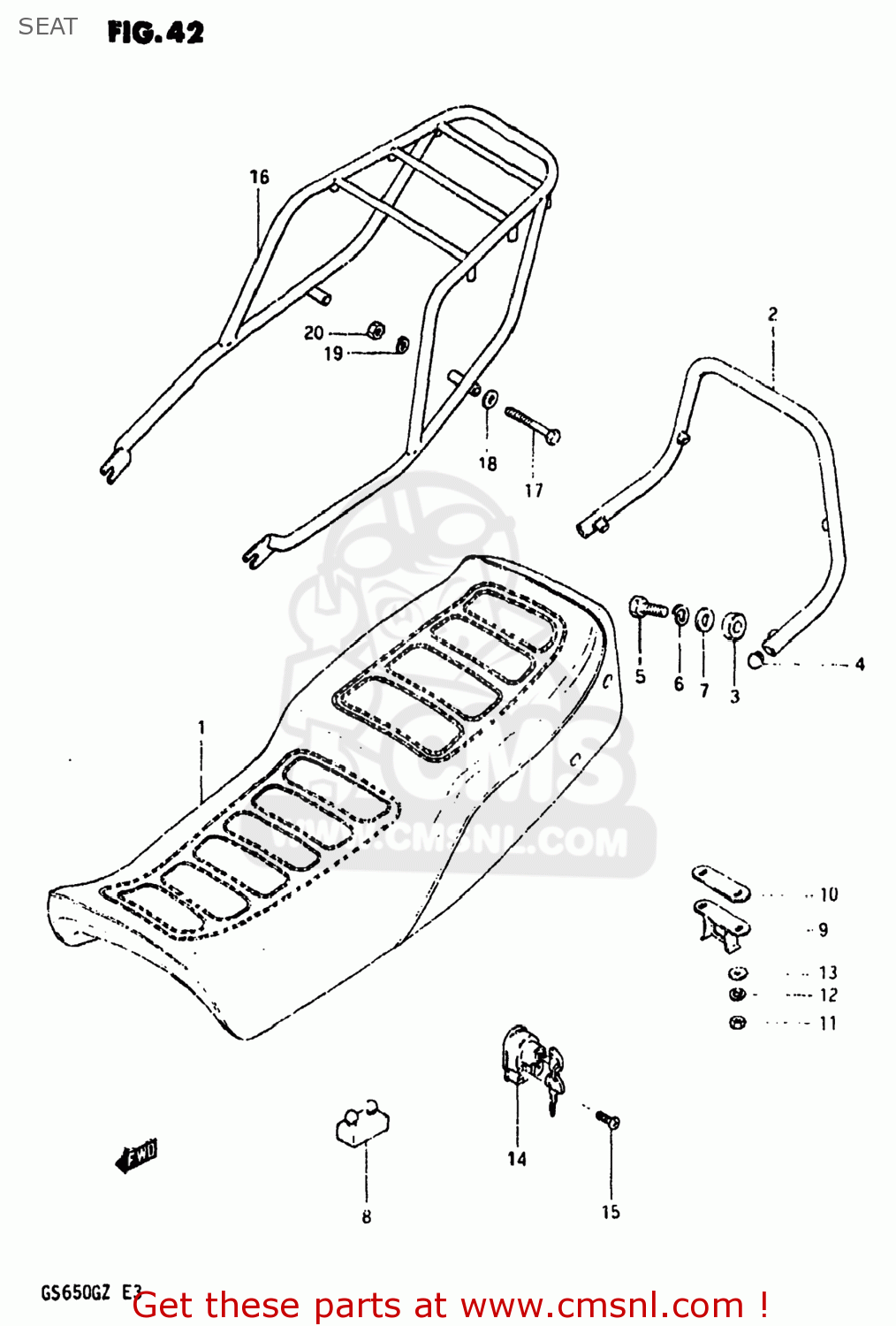

Seat diagram GS650G 1982 (Z) USA (E03)
SEAT GS650G 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
451003421141G
ref: 1-1
45100-34240-48G
SEAT ASSEMBLY
€ 447.50
1-2
451003421247G
ref: 1-2
45100-34240-48G
SEAT ASSEMBLY
€ 447.50
2
4621034201
ref: 2
HANDLE,PILLION RIDER
€ 35.50
3
4621249000
ref: 3
CUSHION
€ 15.00
4
4621349000
ref: 4
END,SHEET HANDLE
€ 5.50
5
0110708208
ref: 5
01500-08207
BOLT
€ 3.00
6
0832121088
ref: 6
08321-01087
LOCK WASHER
€ 2.00
7
0832221088
ref: 7
08322-01087
WASHER
€ 2.00
8
0932108006
ref: 8
CUSHION
€ 3.00
9
4521044101
ref: 9
STRIKER,SEAT LOCK
€ 32.50
10
4521744100
ref: 10
SHIM,SEAT LOCK STRIKER
€ 4.50
11
0831022068
ref: 11
08310-00067
NUT 6MM
€ 2.50
12
0832121068
ref: 12
08321-01067
LOCK WASHER
€ 2.50
13
0832221068
ref: 13
08322-01067
WASHER
€ 2.00
14
9570034210
ref: 14
LOCK ASSY,HELMET
€ 59.00
15
0910605008
ref: 15
07130-0525B
BOLT 5X25
€ 2.00
16
4631034200
ref: 16
CARRIER
€ 37.50
17
0120408957
ref: 17
BOLT
€ 8.50
18
0832211088
ref: 18
08322-01087
WASHER
€ 2.00
19
0832121088
ref: 19
08321-01087
LOCK WASHER
€ 2.00
20
0831022088
ref: 20
08310-00087
NUT 8MM
€ 2.00
