GEAR SHIFTING
GS650G 1982 (Z) USA (E03)

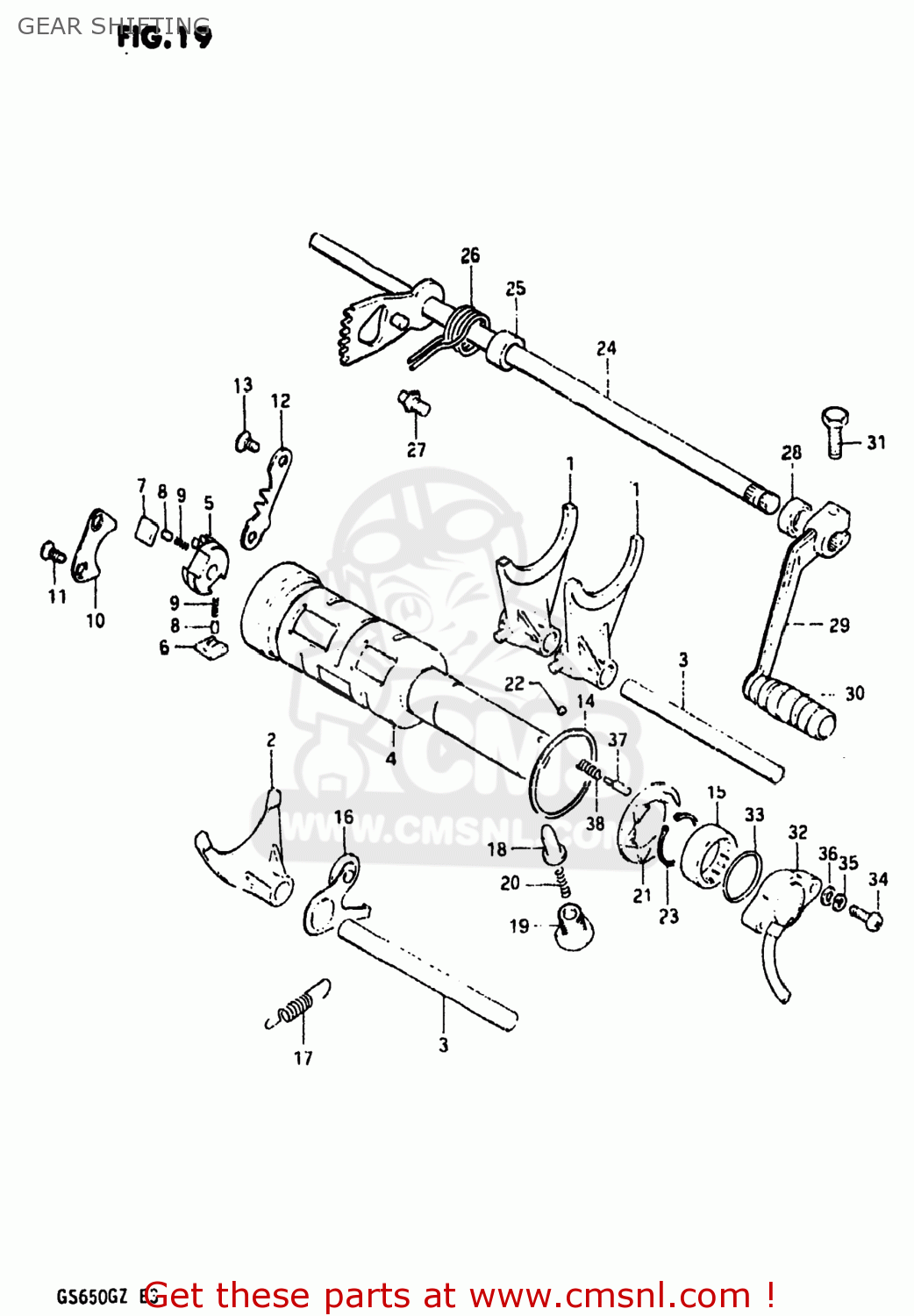

Gear shifting diagram GS650G 1982 (Z) USA (E03)
GEAR SHIFTING GS650G 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2521134200
ref: 1
FORK,GEAR SHIFT NO.1
€ 68.00
2
2523134200
ref: 2
FORK,GEAR SHIFT NO.3
€ 49.00
3
2541131000
ref: 3
25411-18900
SHAFT,GEAR SHIFT FORK
€ 14.50
4
2531034200
ref: 4
25310-34201
CAM,GEAR SHIFT
€ 207.50
5
2532234200
ref: 5
25322-31310
SHIFTER,GEAR SHIFT CAM
€ 14.50
6
2532334200
ref: 6
25323-34201
PAWL,GEAR SHIFT NO.1
€ 6.00
7
2532434200
ref: 7
25324-34201
PAWL,GEAR SHIFT NO.2
€ 6.00
8
0926105003
ref: 8
PIN(5X8)
€ 1.50
9
0944004003
ref: 9
SPRING
€ 1.50
10
2533134200
ref: 10
LIFTER,GEAR SHIFT PAWL
€ 0.00
11
0212206128
ref: 11
02122-06127
SCREW
€ 3.00
12
2534134200
ref: 12
GUIDE,GEAR SHIFT
€ 0.00
13
0212206128
ref: 13
02122-06127
SCREW
€ 3.00
14
0916040001
ref: 14
WASHER(40X45X1)
€ 2.50
15
0926325031
ref: 15
09263-25018
BEARING
€ 17.50
16
2535034200
ref: 16
STOPPER,GEAR SHIFTING
€ 9.50
17
0944308023
ref: 17
SPRING
€ 1.50
18
2535130010
ref: 18
STOPPER,GEAR SHIFT CAM NO.2
€ 6.50
19
2535430000
ref: 19
HOLDER,GEAR SHIFT CAM STOP SPR
€ 6.50
20
0944006020
ref: 20
SPRING
€ 14.00
21
2538145400
ref: 21
PLATE,GEAR SHIFT CAM STOPPER
€ 10.50
22
0621104063
ref: 22
04221-04069
PIN 4X6
€ 2.00
23
0833111258
ref: 23
08331-3125A
CIRCLIP
€ 2.00
24
2551034200
ref: 24
SHAFT,GEAR SHIFT
€ 58.00
25
0918012068
ref: 25
SPACER(12X20X15.3)
€ 3.00
26
0944426017
ref: 26
SPRING
€ 5.00
27
2567101000
ref: 27
25671-01011
STOPPER,GEAR SHIFT CAM
€ 3.00
28
0928512002
ref: 28
09285-12006
OIL SEAL
€ 7.00
29
2560034200
ref: 29
25600-34211
LEVER ASSEMBLY,GEAR SHIFTING
€ 33.00
30
2565216500
ref: 30
RUBBER,GEAR SHIFT PEDAL
€ 4.00
31
0110708208
ref: 31
01500-08207
BOLT
€ 3.00
32-1
3772034200
ref: 32-1
BASE ASSEMBLY,NEUTRAL SWITCH TERMINAL
€ 52.00
32-2
3772045100
ref: 32-2
TERMINAL BASE ASSY,GEAR SHIFT
€ 92.50
33
0928026003
ref: 33
09280-26005
O-RING (D:2.4 ID:26.2)
€ 2.50
34
0211205208
ref: 34
02112-05207
SCREW 5X20
€ 3.00
35
0832121058
ref: 35
08321-0105A
LOCK WASHER
€ 2.00
36
0832221058
ref: 36
08322-01057
WASHER
€ 2.50
37
0920905011
ref: 37
PIN(5X15.5)
€ 2.00
38
0944004010
ref: 38
SPRING
€ 1.50
