WIRING HARNESS
GS650G 1982 (Z) USA (E03)

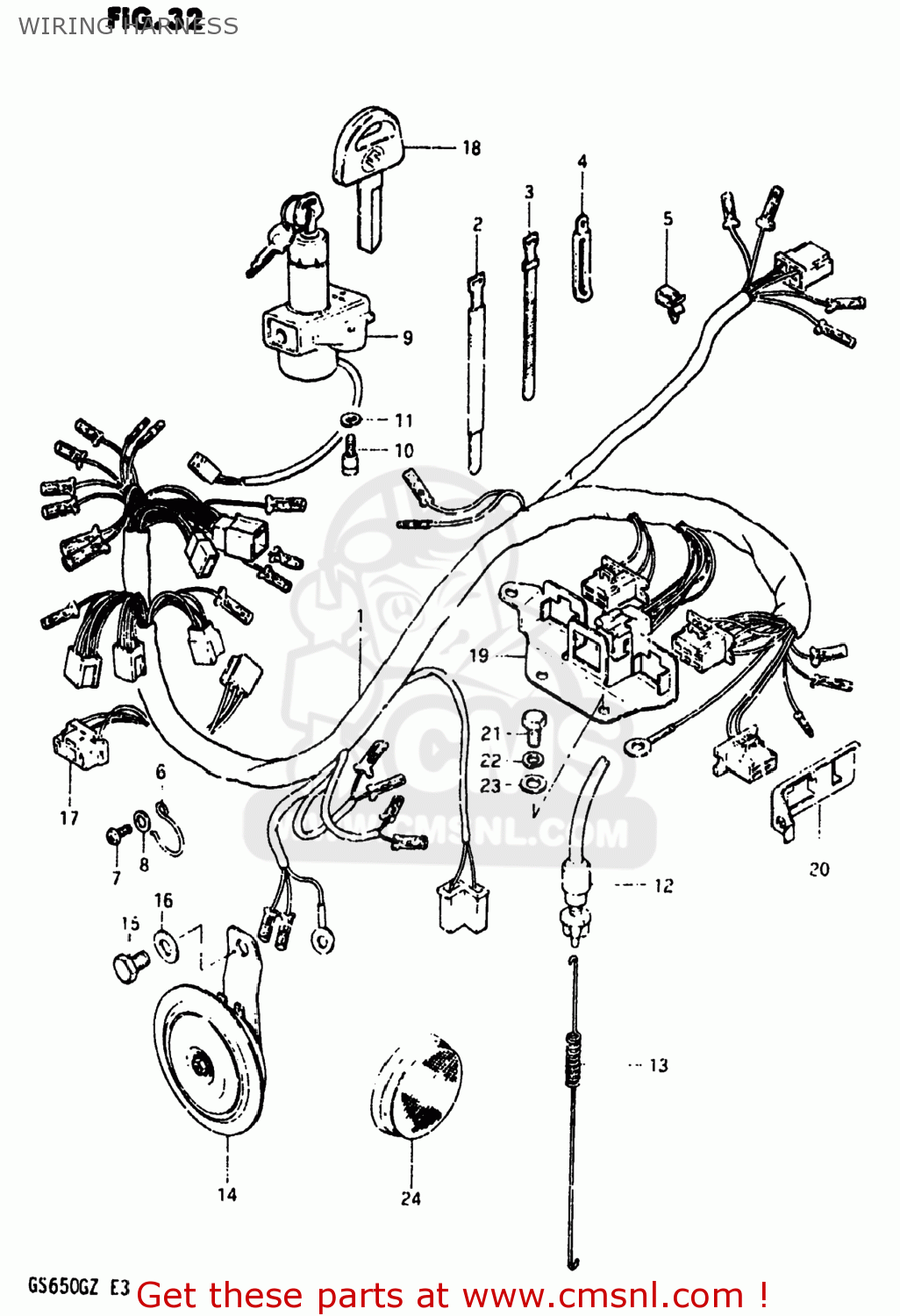

Wiring harness diagram GS650G 1982 (Z) USA (E03)
WIRING HARNESS GS650G 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
3661034200
ref: 1-1
HARNESS,WIRING
€ 86.00
1-2
3661034220
ref: 1-2
HARNESS,WIRING
€ 101.50
2
0940718301
ref: 2
CLAMP
€ 6.00
3
0940714401
ref: 3
CLAMP
€ 3.00
4
0940406414
ref: 4
09404-06433
CLAMP
€ 3.00
5
0940305305
ref: 5
CLIP
€ 3.00
6
3661944000
ref: 6
36619-44002
GUIDE,WIRING HARNESS
€ 2.50
7
0211206128
ref: 7
02112-06127
SCREW 6X12
€ 2.00
8
0832221068
ref: 8
08322-01067
WASHER
€ 2.00
9
3710047011
ref: 9
37100-45301
LOCK ASSEMBLY,STEERING
€ 127.50
10
3715247010
ref: 10
07130-0616B
BOLT
€ 3.00
11
0832121068
ref: 11
08321-01067
LOCK WASHER
€ 2.50
12
3774004571
ref: 12
37740-48071
SWITCH ASSEMBLY,STOP LAMP
€ 22.00
13
0944306018
ref: 13
09443-06018-XC0
SPRING
€ 4.50
14-1
3850034220
ref: 14-1
38500-34221
HORN ASSEMBLY
€ 0.00
14-2
3850034230
ref: 14-2
HORN ASSEMBLY
€ 41.00
15
0110708128
ref: 15
01500-08127
BOLT 8X12
€ 2.50
16
0832211088
ref: 16
08322-01087
WASHER
€ 2.00
17
3685234000
ref: 17
36853-30500
LEAD WIRE,HEADLAMP
€ 13.00
18
3714647010
ref: 18
KEY,BLANK
€ 15.00
19
4745034200
ref: 19
PLATE, COUPLER HOLDER (A)
€ 0.00
20
4745234200
ref: 20
PLATE, COUPLER HOLDER (B)
€ 8.50
21
0110706128
ref: 21
01500-06127
BOLT
€ 2.00
22
0832121068
ref: 22
08321-01067
LOCK WASHER
€ 2.50
23
0832221068
ref: 23
08322-01067
WASHER
€ 2.00
24
3595049080
ref: 24
REFLEX REFLECTOR,RR
€ 17.50
