OIL PUMP - OIL FILTER
GS650G 1982 (Z) USA (E03)

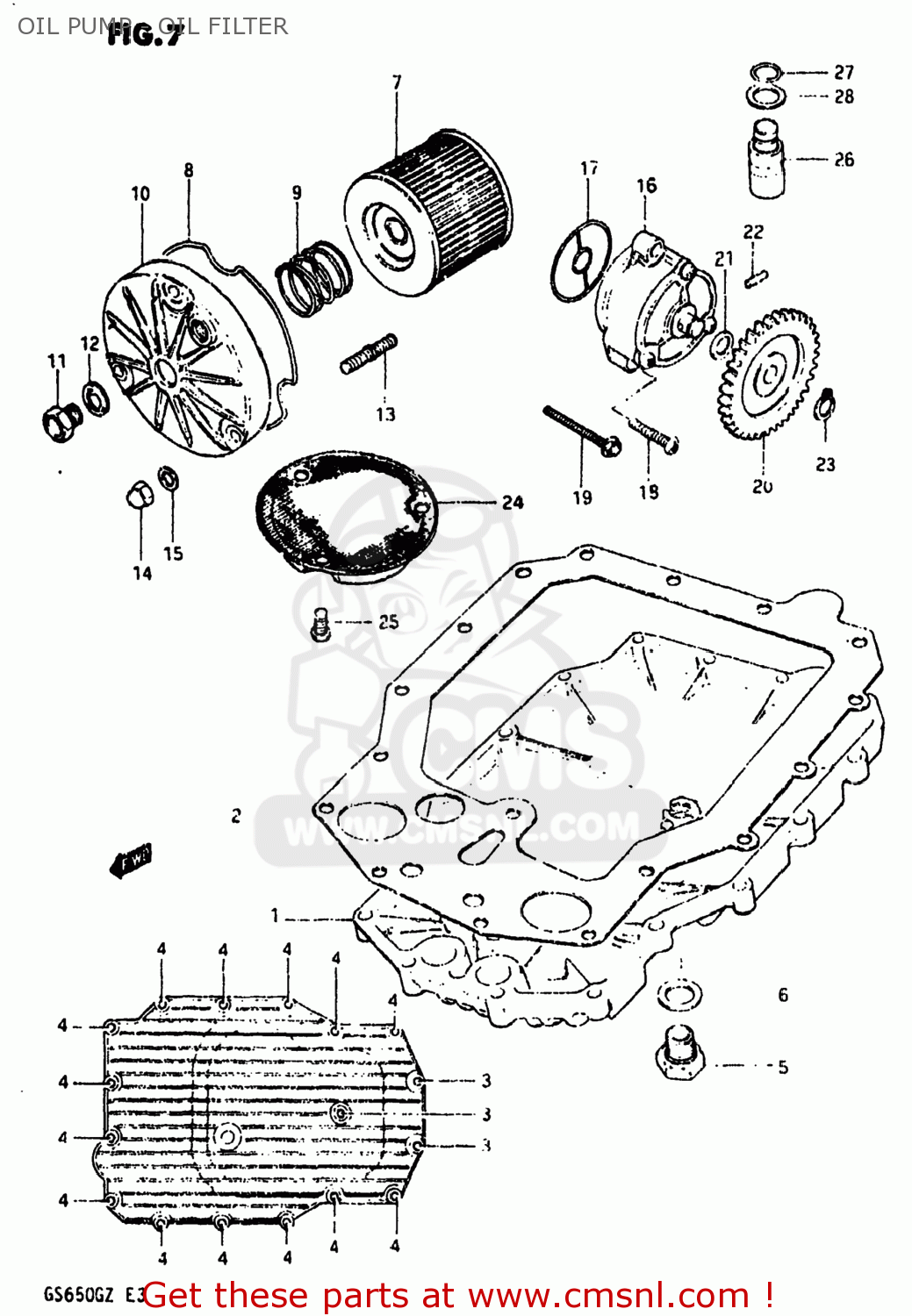

Oil pump - oil filter diagram GS650G 1982 (Z) USA (E03)
OIL PUMP - OIL FILTER GS650G 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1151134200
ref: 1-1
11511-34201
PAN,OIL
€ 84.00
1-2
1151134201
ref: 1-2
PAN,OIL
€ 84.00
2-1
1148934200
ref: 2-1
11489-34210
GASKET,OIL PAN (MCA)
€ 14.50
2-2
1148934201
ref: 2-2
11489-34210
GASKET,OIL PAN (MCA)
€ 14.50
3
0151706308
ref: 3
01550-06307
BOLT
€ 2.00
4
0151706258
ref: 4
01550-06257
BOLT
€ 2.50
5
0924714001
ref: 5
09247-14002
PLUG
€ 5.00
6
0916814004
ref: 6
GASKET(14X19.2X2) (NAS)
€ 2.50
7
1651045040
ref: 7
FILTER ASSY,ENGINE OIL
€ 7.50
8
1651845000
ref: 8
O RING,OIL FILTER CHAMBER CAP
€ 7.50
9
0944032004
ref: 9
SPRING
€ 13.50
10
1651234200
ref: 10
16512-33311
CAP,OIL FILTER
€ 47.00
11
0924714001
ref: 11
09247-14002
PLUG
€ 5.00
12
0916814004
ref: 12
GASKET(14X19.2X2) (NAS)
€ 2.50
13
0142106208
ref: 13
01421-0620A
STUD 6X20
€ 2.50
14
0831311068
ref: 14
08313-10067
NUT
€ 2.00
15
0832221068
ref: 15
08322-01067
WASHER
€ 2.00
16-1
1640034300
ref: 16-1
16400-34310
PUMP ASSEMBLY,OIL
€ 125.50
16-2
1640034310
ref: 16-2
PUMP ASSEMBLY,ENGINE OIL
€ 125.50
17
1649149200
ref: 17
16491-31300
O-RING,OIL PUMP
€ 12.50
18
0211206258
ref: 18
02112-06257
SCREW
€ 2.00
19
0151706408
ref: 19
01550-06407
BOLT
€ 2.50
20
1633149990
ref: 20
16331-49000
GEAR,OIL PUMP DRIVEN
€ 84.50
21
0822110185
ref: 21
SHIM
€ 2.00
22
0926104009
ref: 22
PIN(4X15.8)
€ 1.50
23
0833131109
ref: 23
CIRCLIP
€ 2.00
24
1652034200
ref: 24
STRAINER,ENGINE OIL
€ 9.00
25
0211206128
ref: 25
02112-06127
SCREW 6X12
€ 2.00
26
1644034200
ref: 26
REGULATOR ASSEMBLY,ENGINE
€ 37.50
27
0928012005
ref: 27
09280-12012
O-RING
€ 5.00
28
0821214181
ref: 28
WASHER
€ 2.00
