REAR SWINGING ARM
GS650G 1982 (Z) USA (E03)

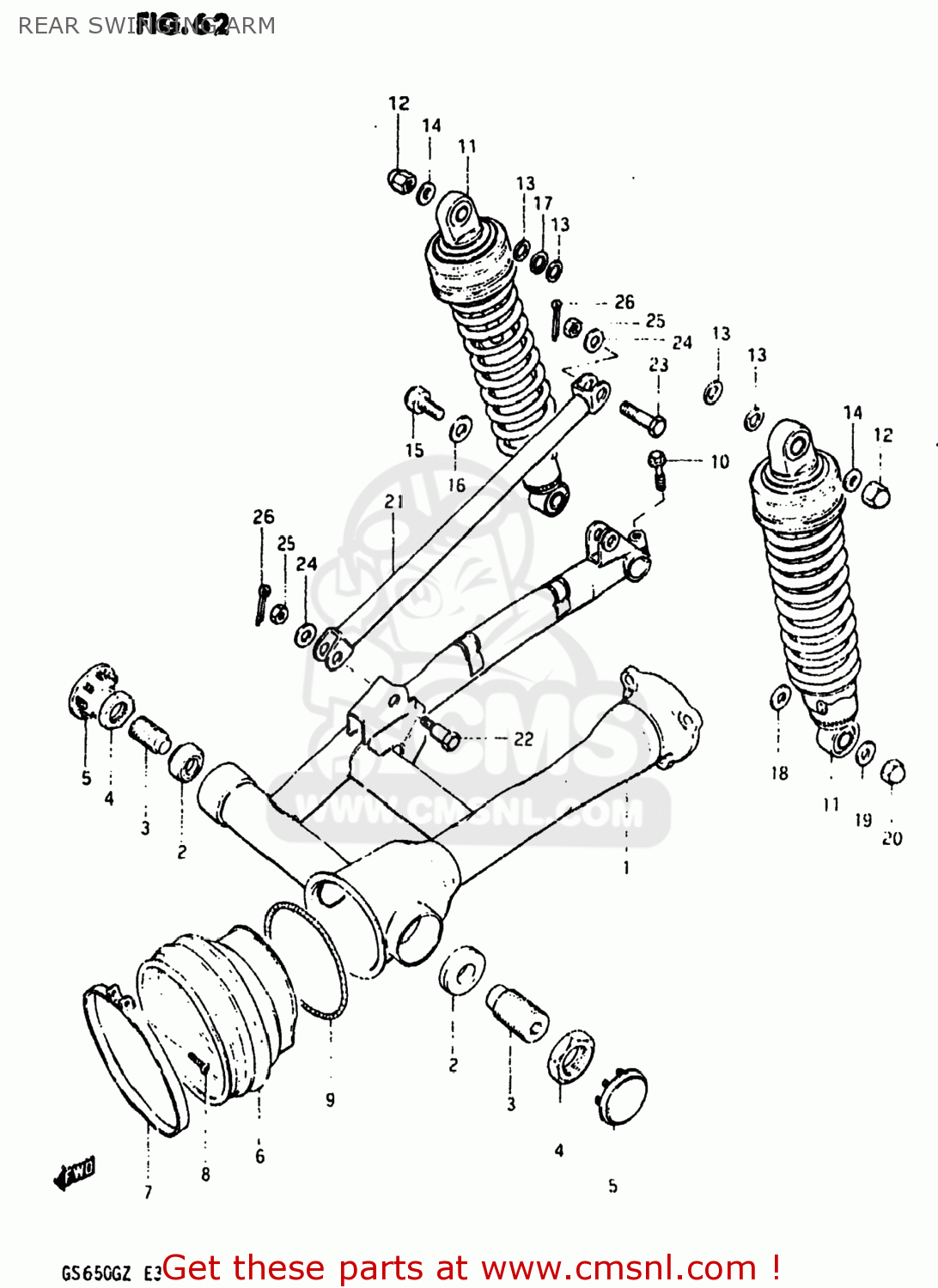

Rear swinging arm diagram GS650G 1982 (Z) USA (E03)
REAR SWINGING ARM GS650G 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6110034841019
ref: 1
SWING ARM ASSEMBLY,REAR
€ 378.00
2
0926515003
ref: 2
BEARING(15X35X11.75)
€ 51.50
3
6121334300
ref: 3
61213-34301
BOLT,REAR SWING ARM PIVOT
€ 16.00
4
0914022004
ref: 4
NUT (22MM)
€ 4.00
5
6122234301
ref: 5
61222-34302
CAP,REAR SWING ARM PIVOT
€ 12.50
6
6137234300
ref: 6
BOOT,PROPELLER SHAFT
€ 22.50
7
0940200304
ref: 7
09402-00303
CLAMP
€ 5.00
8
0321104255
ref: 8
03211-0425B
SCREW 4X25
€ 2.00
9
6137334300
ref: 9
61373-3430V
SPRING,PROPELLER SHAFT
€ 6.50
10
0151708258
ref: 10
01550-08257
BOLT
€ 2.50
11-1
6210034200
ref: 11-1
ABSORBER ASSEMBLY,REAR SHOCK
€ 133.00
11-2
6210034220
ref: 11-2
62100-34X00
ABSORBER ASSEMBLY,REAR SHOCK
€ 126.00
12
0914510001
ref: 12
NUT
€ 2.50
13
0832211128
ref: 13
08322-01127
WASHER
€ 2.00
14
0916010001
ref: 14
09160-10093
WASHER
€ 2.00
15
0910412014
ref: 15
BOLT 12X33
€ 4.00
16
0916012004
ref: 16
09160-12088
WASHER (12.5X24X1.6)
€ 2.00
17
0916012012
ref: 17
09160-12082
WASHER (12.5X24X3.2)
€ 2.50
18
0832211128
ref: 18
08322-01127
WASHER
€ 2.00
19
0916010001
ref: 19
09160-10093
WASHER
€ 2.00
20
0831311108
ref: 20
08313-10107
NUT, LOWER LH
€ 2.50
21
6431034300019
ref: 21
64310-49200-019
TORQUE LINK,REAR
€ 22.50
22
0911110011
ref: 22
09111-10022-XC0
BOLT
€ 8.00
23
0910110017
ref: 23
BOLT(10X39)
€ 5.00
24
0832211108
ref: 24
08322-01107
WASHER
€ 2.50
25
0831441108
ref: 25
08314-4010B
NUT
€ 2.50
26
0411120208
ref: 26
04111-2020A
PIN 20X20
€ 1.50
