CRANKCASE
GS650M 1983 (D) USA (E03)

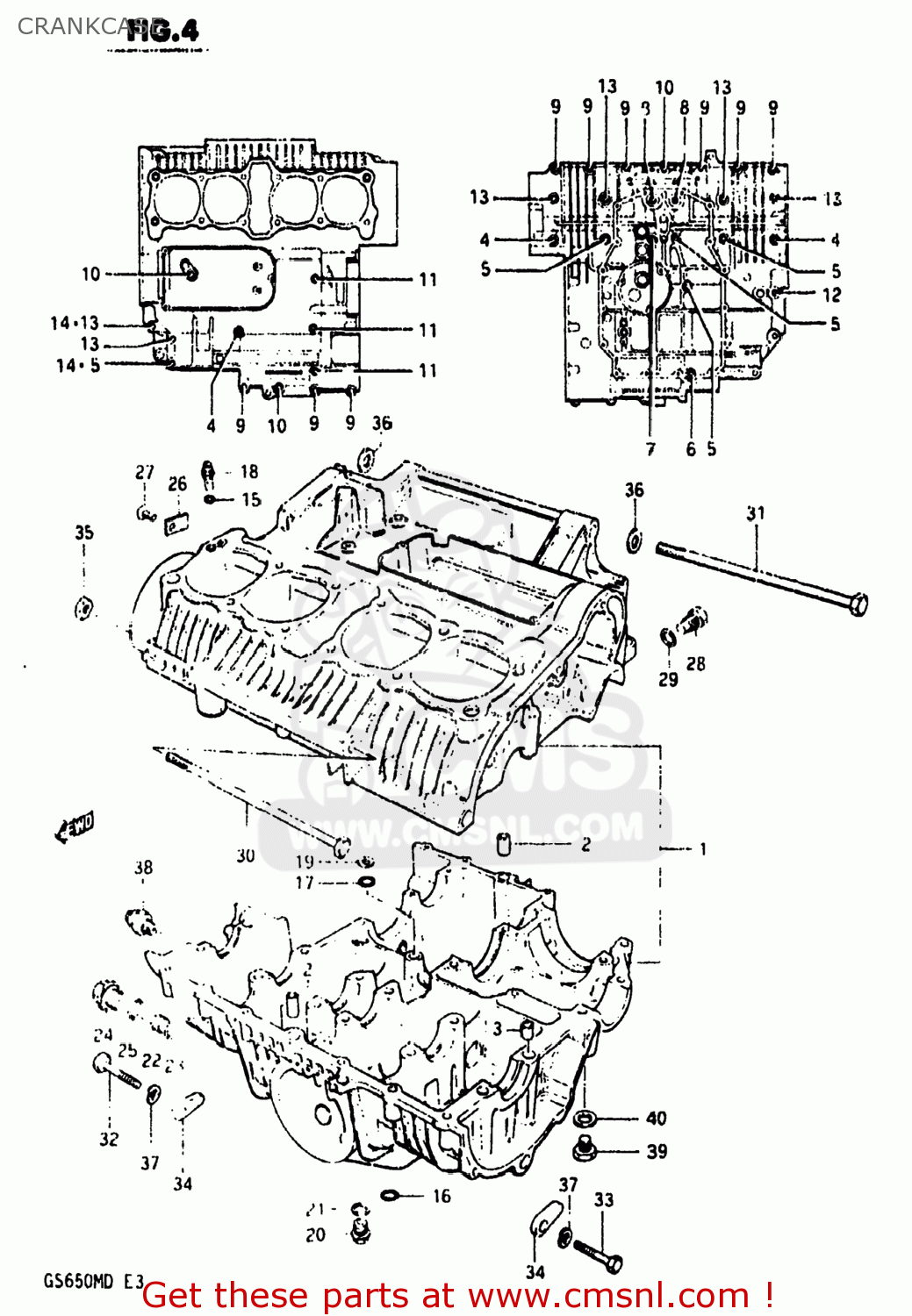

Crankcase diagram GS650M 1983 (D) USA (E03)
CRANKCASE GS650M 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1130034890
ref: 1
11300-34891
CRANKCASE SET
€ 571.50
2
0920611005
ref: 2
09206-11017
PIN (11X20)(SUS)
€ 6.50
3
0920613004
ref: 3
PIN(10.4X13X22)
€ 3.00
4
0910308024
ref: 4
09103-08134
BOLT
€ 3.00
5
0910308091
ref: 5
09103-08109
BOLT
€ 3.50
6
0910308038
ref: 6
BOLT(8X135)
€ 4.00
7
0910308040
ref: 7
BOLT(8X140)
€ 4.00
8
0910608015
ref: 8
07130-0860B
BOLT
€ 4.50
9
0151706405
ref: 9
01550-0640A
BOLT (6X40)
€ 2.00
10
0151706555
ref: 10
01550-0655B
BOLT 6X55
€ 2.00
11
0151706905
ref: 11
01550-0690B
BOLT (6X90)
€ 3.50
12
0151708705
ref: 12
BOLT (8X70)
€ 2.50
13
0151708955
ref: 13
01550-0895A
BOLT (8X95)
€ 3.50
14
0831616085
ref: 14
08316-1008B
NUT 8MM
€ 3.00
15
0928004002
ref: 15
09280-04004
O-RING,OIL GALLERY JET
€ 2.00
16
0928012005
ref: 16
09280-12012
O-RING
€ 5.00
17
0928013001
ref: 17
O RING(D:3.2,ID:12.9)
€ 4.00
18
0949324009
ref: 18
JET(12)
€ 10.50
19
0821205161
ref: 19
WASHER
€ 1.50
20
0924716002
ref: 20
PLUG
€ 3.50
21
0916816002
ref: 21
GASKET(16X22X2) (NAS)
€ 2.00
22
1132945400
ref: 22
PIN,OIL GALLERY
€ 2.50
23
0928010005
ref: 23
09280-10016
SEAL (D:1.9 ID:9.8)
€ 3.50
24
0924718001
ref: 24
PLUG
€ 8.00
25
0928018004
ref: 25
O RING(D:2.4,ID:17.8)
€ 5.50
26
1131934200
ref: 26
PLATE,OIL GALLERY PLUG
€ 2.50
27
0212206168
ref: 27
02122-06167
SCREW
€ 2.00
28
0924712005
ref: 28
PLUG
€ 0.00
29
0916812002
ref: 29
GASKET(12.1X16.2X3.7) (NAS)
€ 2.00
30
0910010138
ref: 30
09103-10138
BOLT
€ 11.50
31
0910010142
ref: 31
BOLT
€ 0.00
32
0110710555
ref: 32
01500-1055A
BOLT 10X55
€ 3.50
33
0110710405
ref: 33
01500-1040A
BOLT
€ 2.50
34
0915910020
ref: 34
NUT
€ 7.50
35
0831931105
ref: 35
08319-3110A
NUT 10MM
€ 3.00
36
0832211105
ref: 36
08322-0110A
WASHER
€ 2.50
37
0832121105
ref: 37
08321-0110A
LOCK WASHER
€ 3.00
38
3782034200
ref: 38
37820-33D10
SWITCH ASSEMBLY
€ 29.00
39
0924714001
ref: 39
09247-14002
PLUG
€ 5.00
40
0916814004
ref: 40
GASKET(14X19.2X2) (NAS)
€ 2.50
