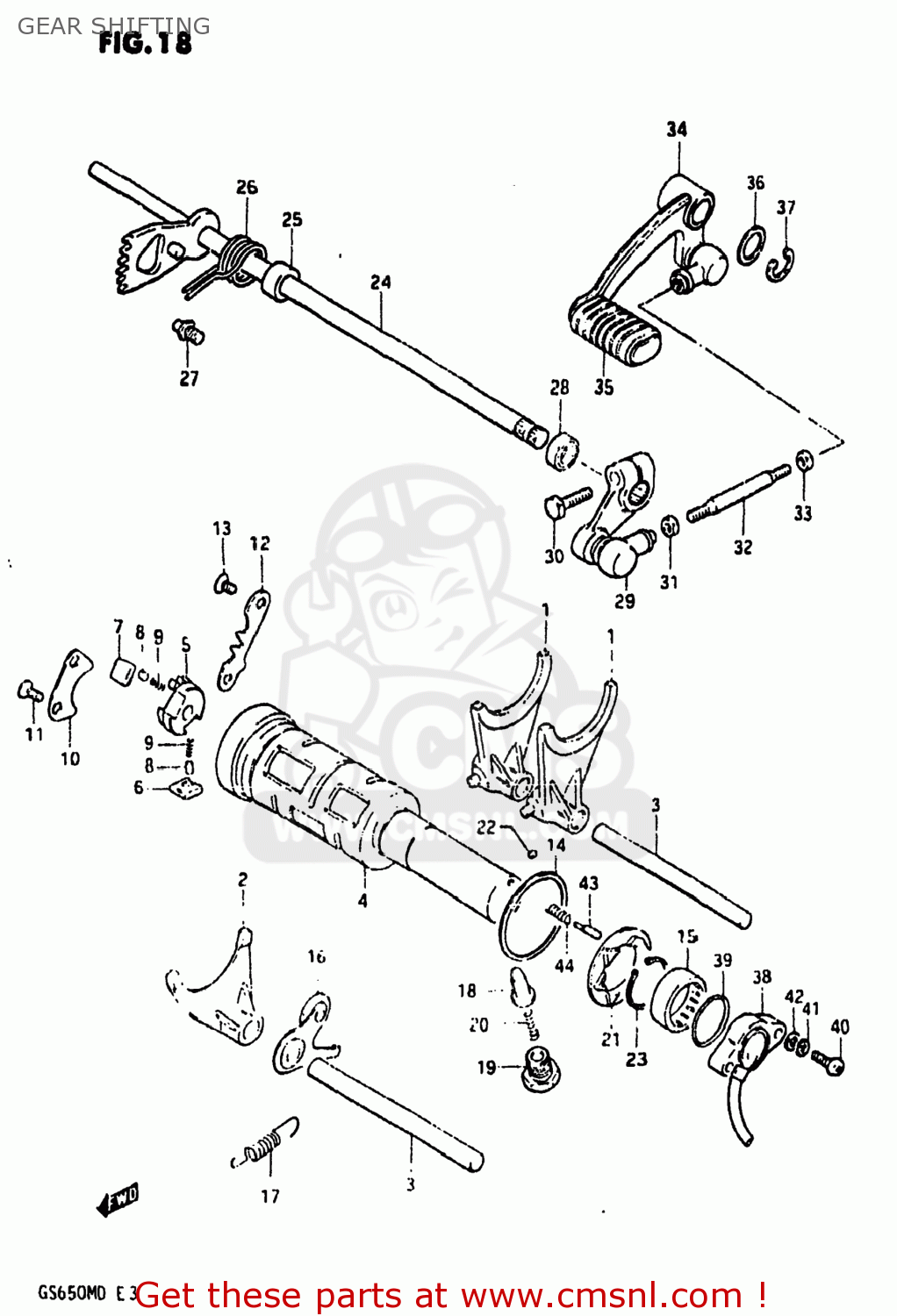

GEAR SHIFTING

ref

part #

description

quantity

1

2521134200
ref: 1

FORK,GEAR SHIFT NO.1

€ 68.00

2

2523134200
ref: 2

FORK,GEAR SHIFT NO.3

€ 49.00

3

2541131000
ref: 3
25411-18900

SHAFT,GEAR SHIFT FORK

€ 14.50

4

2531034201
ref: 4

CAM,GEAR SHIFT

€ 207.50

5

2532211000
ref: 5
25322-31310

RETAINER,GEAR SHIFT CAM

€ 14.50

6

2532311000
ref: 6
25323-34201

PAWL,GEAR SHIFT NO.1

€ 6.00

7

2532411000
ref: 7
25324-34201

PAWL,GEAR SHIFT NO.2

€ 6.00

8

0926105003
ref: 8

PIN(5X8)

€ 1.50

9

0944004003
ref: 9

SPRING

€ 1.50

10

2533134200
ref: 10

LIFTER,GEAR SHIFT PAWL

€ 0.00

11

0212206128
ref: 11
02122-06127

SCREW

€ 3.00

12

2534134200
ref: 12

GUIDE,GEAR SHIFT

€ 0.00

13

0212206128
ref: 13
02122-06127

SCREW

€ 3.00

14

0916040001
ref: 14

WASHER(40X45X1)

€ 2.50

15

0926325018
ref: 15

BEARING(25X32X12)

€ 17.50

16

2535034200
ref: 16

STOPPER,GEAR SHIFTING

€ 9.50

17

0944308023
ref: 17

SPRING

€ 1.50

18

2535130010
ref: 18

STOPPER,GEAR SHIFT CAM NO.2

€ 6.50

19

2535430000
ref: 19

HOLDER,GEAR SHIFT CAM STOP SPR

€ 6.50

20

0944006020
ref: 20

SPRING

€ 14.00

21

2538145400
ref: 21

PLATE,GEAR SHIFT CAM STOPPER

€ 10.50

22

0621104063
ref: 22
04221-04069

PIN 4X6

€ 2.00

23

0833131258
ref: 23
08331-3125A

CIRCLIP,25MM

€ 2.00

24

2551034200
ref: 24

SHAFT,GEAR SHIFT

€ 58.00

25

0918012068
ref: 25

SPACER(12X20X15.3)

€ 3.00

26

0944426017
ref: 26

SPRING

€ 5.00

27

2567101000
ref: 27
25671-01011

STOPPER,GEAR SHIFT CAM

€ 3.00

28

0928512002
ref: 28
09285-12006

OIL SEAL

€ 7.00

29

2552047000
ref: 29

ARM,GEAR SHIFT LINK

€ 53.50

30

0110706208
ref: 30
01500-06207

BOLT

€ 2.00

31

0831011068
ref: 31
08310-00067

NUT

€ 2.50

32

2552534300
ref: 32
25525-12B00

ROD,GEAR SHIFT LINK

€ 12.00

33

0914006011
ref: 33

NUT

€ 1.50

34

2560034310
ref: 34

LEVER ASSEMBLY,GEAR SHIFTING

€ 38.50

35

2565249300
ref: 35

RUBBER,PEDAL

€ 5.50

36

0916012011
ref: 36

WASHER(12.5X20X1)

€ 1.50

37

0833131128
ref: 37
08331-3112A

CIRCLIP

€ 2.00

38

3772045100
ref: 38

TERMINAL BASE ASSY,GEAR SHIFT

€ 92.50

39

0928026003
ref: 39
09280-26005

O-RING (D:2.4 ID:26.2)

€ 2.50

40

0211205208
ref: 40
02112-05207

SCREW 5X20

€ 3.00

41

0832121058
ref: 41
08321-0105A

LOCK WASHER

€ 2.00

42

0832221058
ref: 42
08322-01057

WASHER

€ 2.50

43

0920905011
ref: 43

PIN(5X15.5)

€ 2.00

44

0944004010
ref: 44

SPRING

€ 1.50
