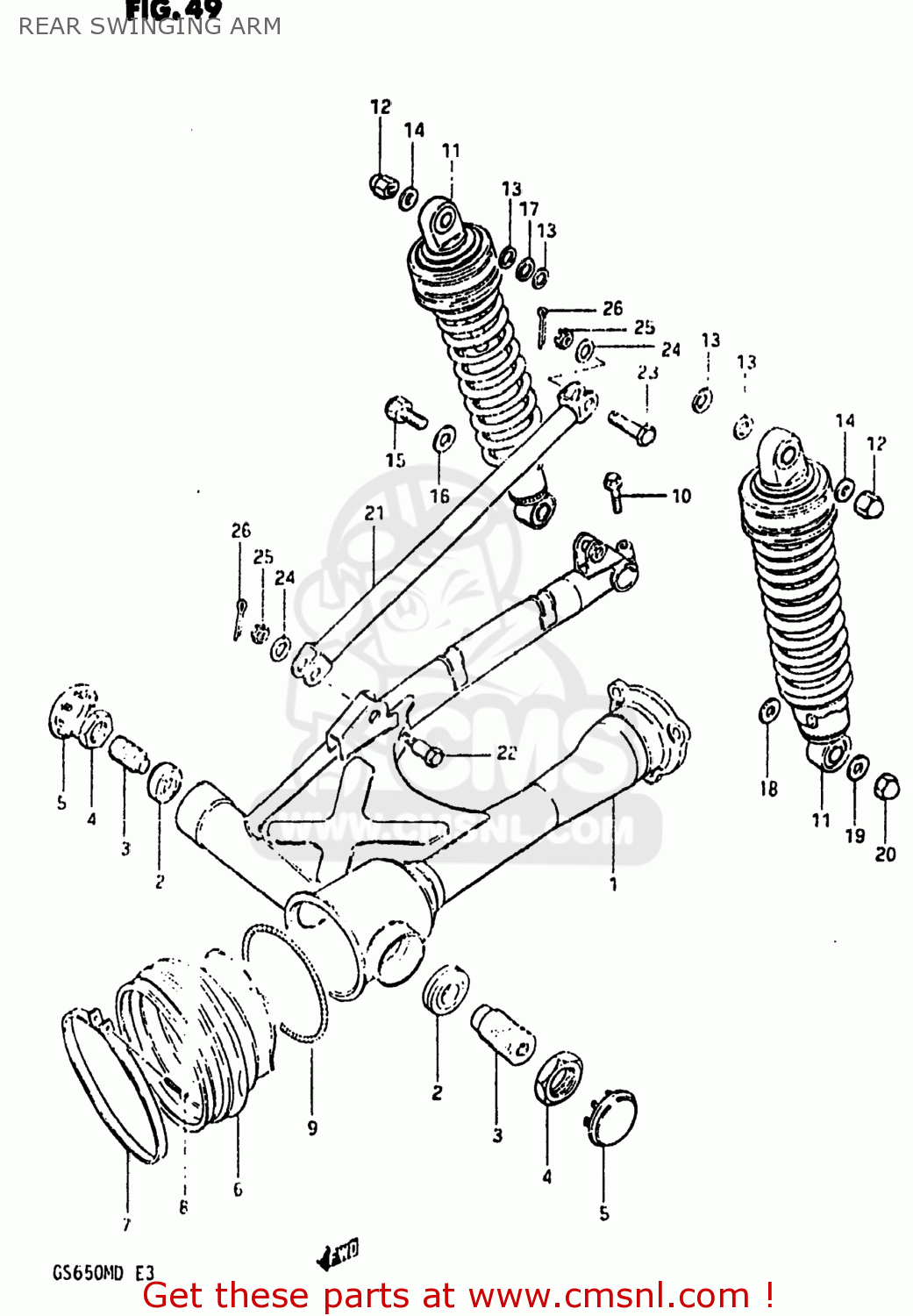

REAR SWINGING ARM

ref

part #

description

quantity

1

611003485015T
ref: 1

ARM,REAR SWING

€ 334.50

2

0926515003
ref: 2

BEARING(15X35X11.75)

€ 51.50

3

6121334300
ref: 3
61213-34301

BOLT,REAR SWING ARM PIVOT

€ 16.00

4

0914022004
ref: 4

NUT (22MM)

€ 4.00

5

6122234301
ref: 5
61222-34302

CAP,REAR SWING ARM PIVOT

€ 12.50

6

6137234300
ref: 6

BOOT,PROPELLER SHAFT

€ 22.50

7

0940200304
ref: 7
09402-00303

CLAMP

€ 5.00

8

0321104255
ref: 8
03211-0425B

SCREW 4X25

€ 2.00

9

6137334300
ref: 9
61373-3430V

SPRING,PROPELLER SHAFT

€ 6.50

10

0151708258
ref: 10
01550-08257

BOLT

€ 2.50

11

6210034360
ref: 11

ABSORBER ASSEMBLY,REAR SHOCK

€ 126.00

12

0914510001
ref: 12

NUT

€ 2.50

13

0832211128
ref: 13
08322-01127

WASHER

€ 2.00

14

0916010001
ref: 14
09160-10093

WASHER

€ 2.00

15

0910412014
ref: 15

BOLT 12X33

€ 4.00

16

0916012004
ref: 16
09160-12088

WASHER (12.5X24X1.6)

€ 2.00

17

0916012012
ref: 17
09160-12082

WASHER (12.5X24X3.2)

€ 2.50

18

0832211128
ref: 18
08322-01127

WASHER

€ 2.00

19

0916010001
ref: 19
09160-10093

WASHER

€ 2.00

20

0831311108
ref: 20
08313-10107

NUT, LOWER LH

€ 2.50

21

643103430015T
ref: 21
64310-49200-15T

TORQUE LINK,REAR

€ 12.00

22

0911110011
ref: 22
09111-10022-XC0

BOLT

€ 8.00

23

0910110017
ref: 23

BOLT(10X39)

€ 5.00

24

0832211108
ref: 24
08322-01107

WASHER

€ 2.50

25

0831441108
ref: 25
08314-4010B

NUT

€ 2.50

26

0411120208
ref: 26
04111-2020A

PIN 20X20

€ 1.50
