SEAT
GS650M 1983 (D) USA (E03)

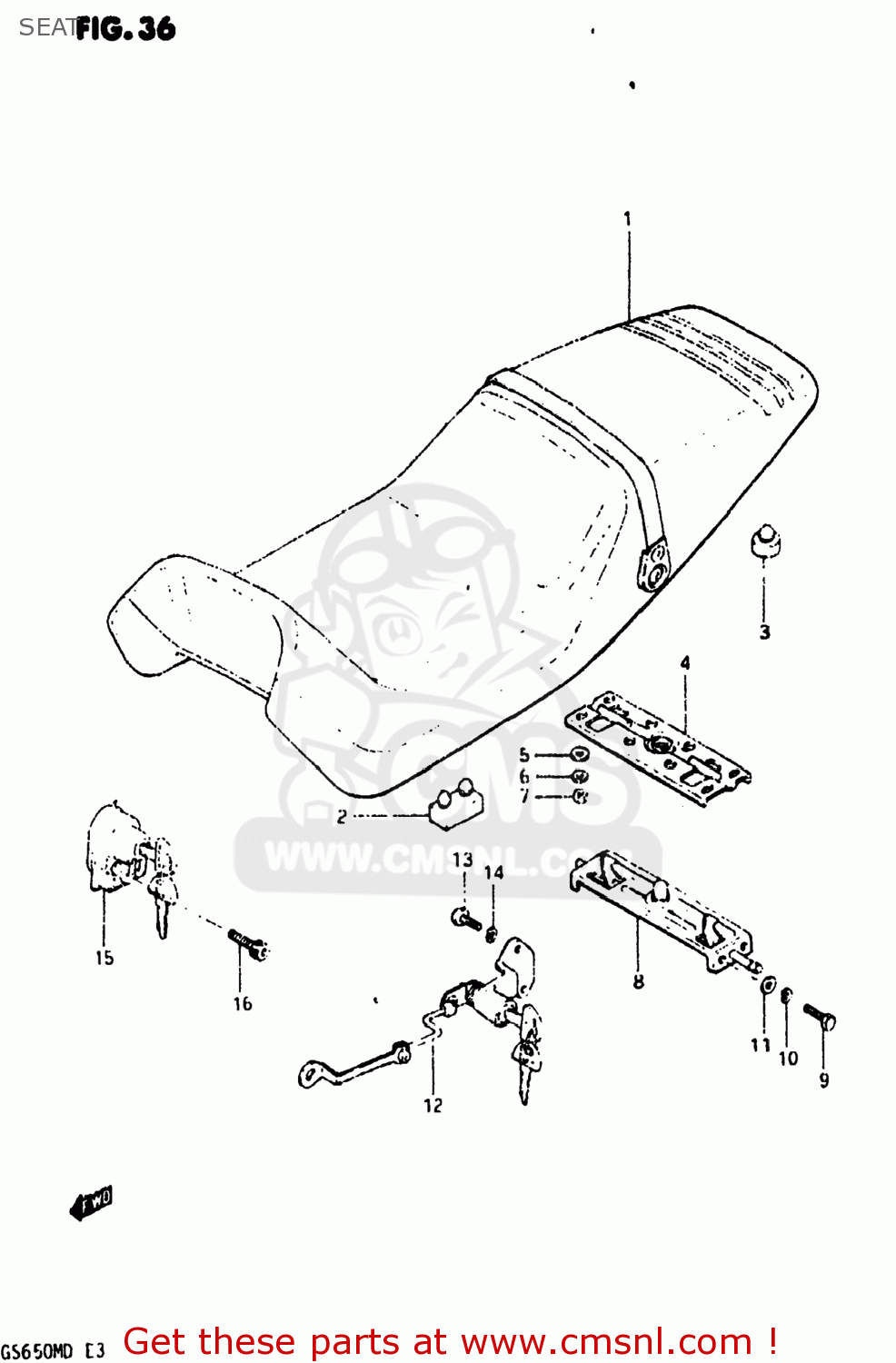

Seat diagram GS650M 1983 (D) USA (E03)
SEAT GS650M 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
451003433087V
ref: 1
45100-34340-87V
SEAT ASSEMBLY
€ 354.00
2
0932108006
ref: 2
CUSHION
€ 3.00
3
0932110001
ref: 3
CUSHION
€ 2.50
4
4512434300
ref: 4
PLATE,SEAT LOCK GUIDE
€ 12.50
5
0832221068
ref: 5
08322-01067
WASHER
€ 2.00
6
0832121068
ref: 6
08321-01067
LOCK WASHER
€ 2.50
7
0831022068
ref: 7
08310-00067
NUT 6MM
€ 2.50
8
4522034302
ref: 8
PLATE,CLAMP GUIDE
€ 55.50
9
0110405108
ref: 9
01500-0510B
BOLT
€ 1.50
10
0832121058
ref: 10
08321-0105A
LOCK WASHER
€ 2.00
11
0832221058
ref: 11
08322-01057
WASHER
€ 2.50
12
9570034810
ref: 12
LOCK ASSEMBLY,SEAT
€ 46.50
13
0110405108
ref: 13
01500-0510B
BOLT
€ 1.50
14
0832121058
ref: 14
08321-0105A
LOCK WASHER
€ 2.00
15
9570034210
ref: 15
LOCK ASSY,HELMET
€ 59.00
16
0910605008
ref: 16
07130-0525B
BOLT 5X25
€ 2.00
