AIR CLEANER

GSF1200 2000 (Y) (E02 E04 E18 E22 E24 E25 E34)

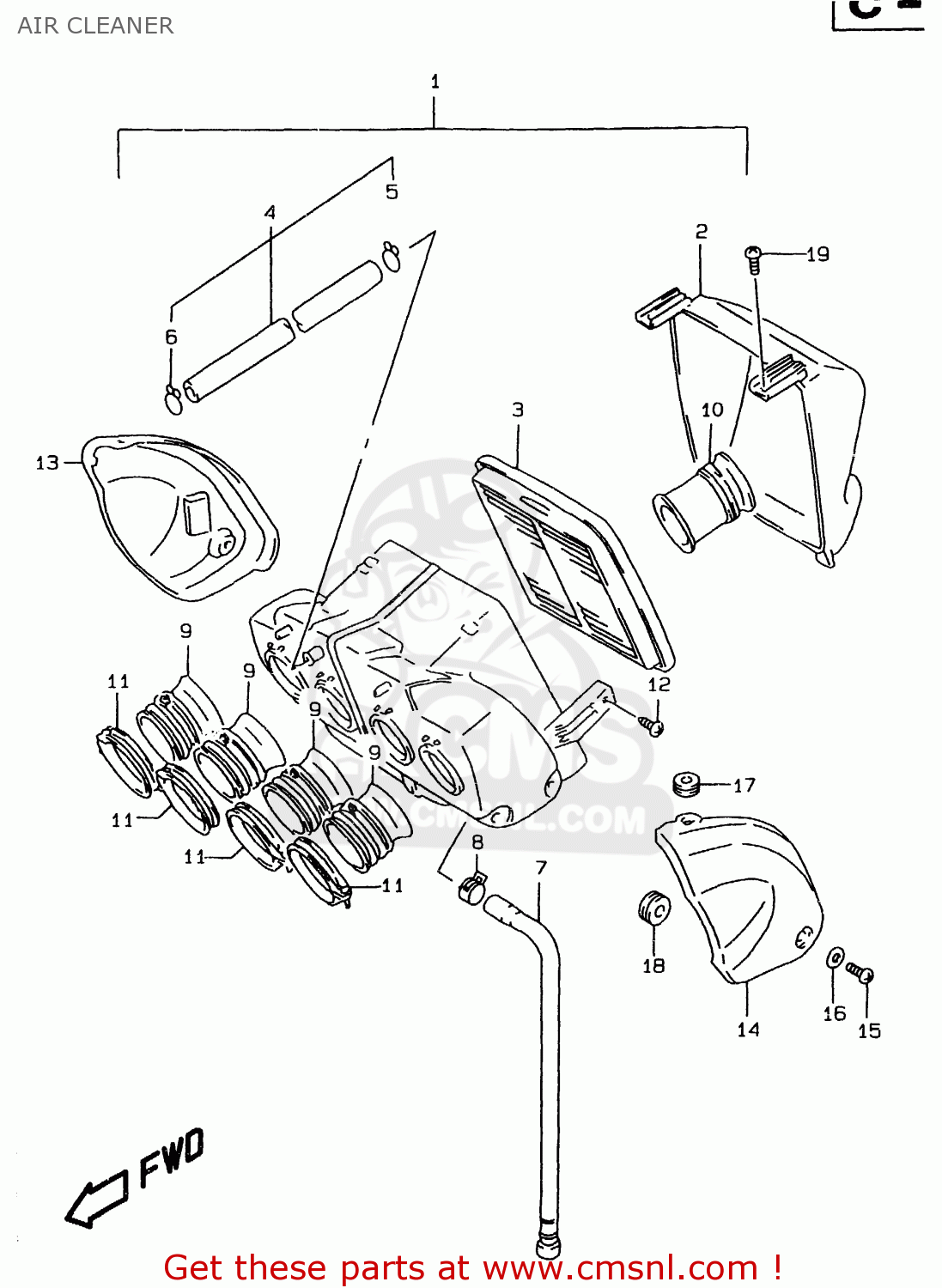

Air cleaner diagram GSF1200 2000 (Y) (E02 E04 E18 E22 E24 E25 E34)

AIR CLEANER GSF1200 2000 (Y) (E02 E04 E18 E22 E24 E25 E34)

AIR CLEANER GSF1200 2000 (Y) (E02 E04 E18 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

1

1370027E00
ref: 1

CLEANER ASSY,AIR

€ 324.50

2

1374017E02
ref: 2

CAP,AIR CLEANER

€ 38.50

3

1378017E00
ref: 3

FILTER,AIR

€ 34.50

4

1385027E00
ref: 4

TUBE,BREATHER

€ 18.00

5

0940114301
ref: 5

CLIP

€ 2.00

6

0940116401
ref: 6

CLIP

€ 3.00

7

1387021458
ref: 7

TUBE,DRAIN

€ 23.50

8

0940113413
ref: 8
MODEL T/V

CLIP

€ 2.50

8

0940113417
ref: 8
MODEL W/X

CLIP

€ 2.50

9

1388101D00
ref: 9
MODEL T/V

TUBE,OUTLET

€ 20.00

9

1388101D01
ref: 9
MODEL W/X

TUBE,OUTLET

€ 20.00

10

1389131E10
ref: 10

TUBE,INLET

€ 22.00

11

0940268208
ref: 11

CLAMP

€ 6.00

12

0214205127
ref: 12

SCREW

€ 1.50

13

1391027E00
ref: 13

COVER COMP,AIR CLEANER,RIGHT

€ 69.00

14

1392027E00
ref: 14

COVER COMP,AIR CLEANER,LEFT

€ 72.50

15

0913905025
ref: 15

SCREW(5X14)

€ 2.00

16

0916905013
ref: 16

WASHER

€ 8.00

17

0932006504
ref: 17
<-09320-05006

CUSHION

€ 4.00

18

0932008018
ref: 18

CUSHION

€ 4.00

19

0214206123
ref: 19

SCREW 6X12

€ 2.00
