CARBURETOR FITTING

GSF1200 2000 (Y) (E02 E04 E18 E22 E24 E25 E34)

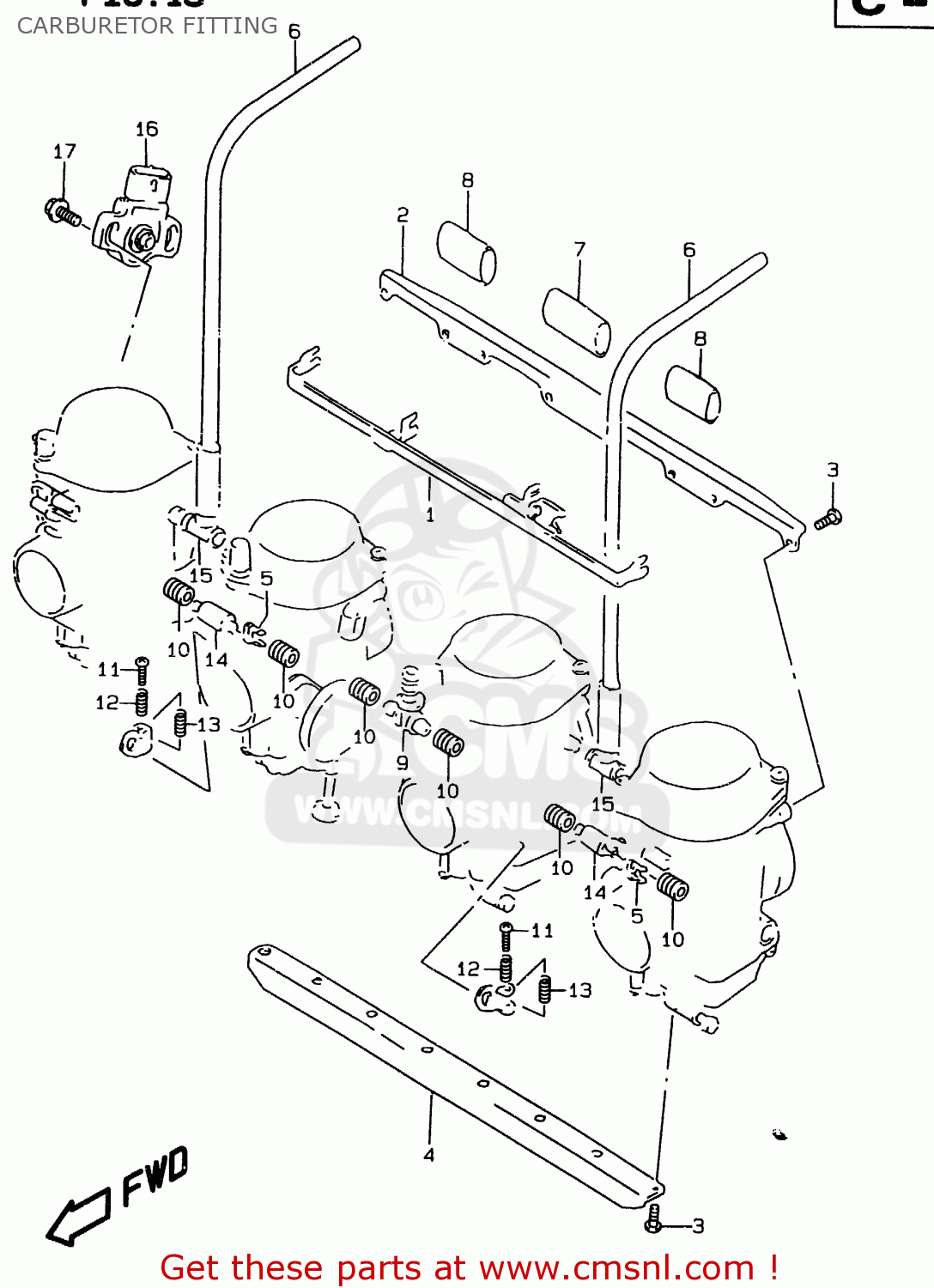

Carburetor fitting diagram GSF1200 2000 (Y) (E02 E04 E18 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

1341326D00
ref: 1

LEVER

€ 21.00

1362817C10
ref: 2

PLATE

€ 29.50

0211205127
ref: 3

SCREW

€ 2.50

1362817D00
ref: 4

PLATE

€ 27.00

1343917C00
ref: 5

HOLDER

€ 12.00

1368440C00
ref: 6

HOSE(7X10.2X475)

€ 22.00

1368443440
ref: 7

HOSE(16X19X100)

€ 6.50

1368443440
ref: 8

HOSE(16X19X100)

€ 6.50

1368544B00
ref: 9

NIPPLE

€ 10.00

1367344B00
ref: 10

SEAL

€ 6.00

1326744B00
ref: 11

SCREW

€ 3.50

1327144B00
ref: 12

SPRING

€ 4.00

1326817C10
ref: 13

SPRING

€ 7.00

1355626D00
ref: 14

PIPE

€ 10.00

1368420C10
ref: 15

HOSE

€ 7.00

1355013D60
ref: 16

SENSOR ASSY,THROTTLE

€ 129.50

1360520C00
ref: 17

SCREW,SENSOR

€ 3.00
