STEERING STEM (GSF1200SAV/SAW/SAX)

GSF1200 2000 (Y) (E02 E04 E18 E22 E24 E25 E34)

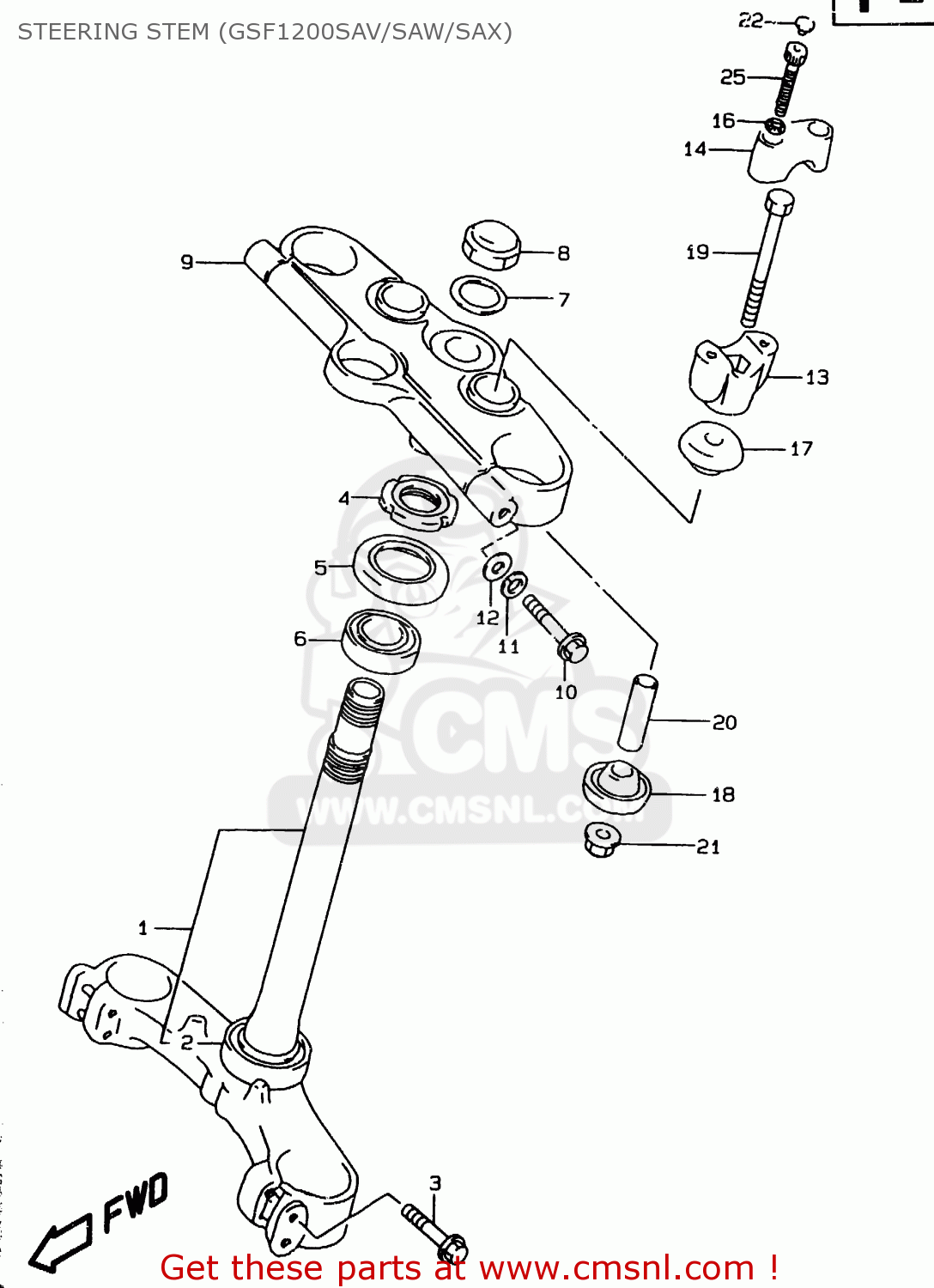

Steering stem (gsf1200sav/saw/sax) diagram GSF1200 2000 (Y) (E02 E04 E18 E22 E24 E25 E34)

STEERING STEM (GSF1200SAV/SAW/SAX) GSF1200 2000 (Y) (E02 E04 E18 E22 E24 E25 E34)

STEERING STEM (GSF1200SAV/SAW/SAX) GSF1200 2000 (Y) (E02 E04 E18 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

1

5141027E01
ref: 1

STEM,STEERING

€ 534.00

2

0926530009
ref: 2

BEARING(30X55X17)

€ 49.50

3

0155008407
ref: 3

BOLT

€ 3.50

4

5163128000
ref: 4

NUT,STEERING STEM(25X44X10)

€ 12.50

5

5164349002
ref: 5

SEAL,STEERING UPR DUST

€ 7.50

6

0926525019
ref: 6

BEARING(25X47X15)

€ 48.50

7

5135624B01
ref: 7

WASHER(22.5X32X1.6)

€ 3.00

8

5135324B00
ref: 8

NUT,CAP

€ 21.50

9

5131127E00
ref: 9

HEAD,STEERING STEM

€ 423.50

10

0155008407
ref: 10

BOLT

€ 3.50

11

0832101087
ref: 11

WASHER,LOCK

€ 2.00

12

0832201087
ref: 12

WASHER

€ 2.00

13

5622127E00
ref: 13

HOLDER,HANDLE UNDER

€ 48.50

14

5621127E00
ref: 14

HOLDER,HANDLE UPR

€ 33.00

15

0713008307
ref: 15

BOLT

€ 4.50

16

0916408015
ref: 16

WASHER

€ 3.00

17

5624127E00
ref: 17

CUSHION,RUBBER UPR

€ 32.50

18

5624228C60
ref: 18

CUSHION,RUBBER UNDER

€ 22.50

19

5632127E00
ref: 19

BOLT,HANDLE HOLDER(10X70)

€ 6.00

20

5624342A00
ref: 20

SPACER

€ 6.00

21

0831931107
ref: 21

NUT

€ 3.00

22

0925006011
ref: 22

CAP(OD:11)

€ 2.50
