SIGNAL GENERATOR

GSF1200 2000 (Y) (E02 E04 E18 E22 E24 E25 E34)

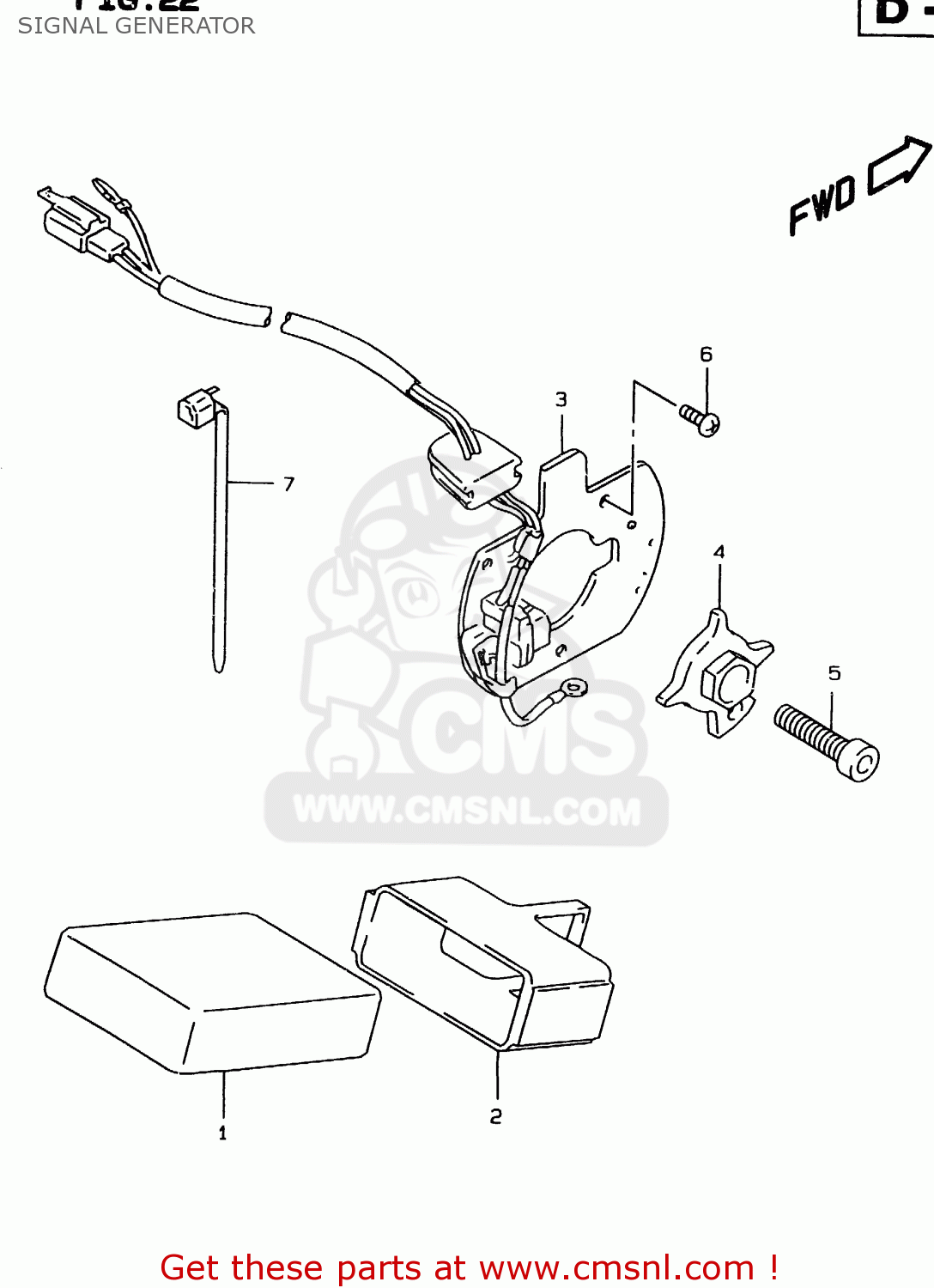

Signal generator diagram GSF1200 2000 (Y) (E02 E04 E18 E22 E24 E25 E34)

SIGNAL GENERATOR GSF1200 2000 (Y) (E02 E04 E18 E22 E24 E25 E34)

SIGNAL GENERATOR GSF1200 2000 (Y) (E02 E04 E18 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

1

3290027E10
ref: 1

IGNITOR ASSY

€ 605.00

1

3290027E20
ref: 1
E18

IGNITOR ASSY

€ 914.50

2

3298040C01
ref: 2

CUSHION,IGNITOR

€ 9.50

3

3311017C00
ref: 3

GENERATOR ASSY,SIGNAL

€ 324.00

4

3312019C20
ref: 4

ROTOR,SIGNAL GENERATOR

€ 182.00

5

0713008303
ref: 5

BOLT

€ 3.00

6

0211205103
ref: 6

SCREW

€ 2.00

7

0940714403
ref: 7
<-09407-11401

CLAMP(L:125)

€ 2.50
