SECOND AIR (GSF1200SAV/SAW/SAX E18)

GSF1200 2000 (Y) (E02 E04 E18 E22 E24 E25 E34)

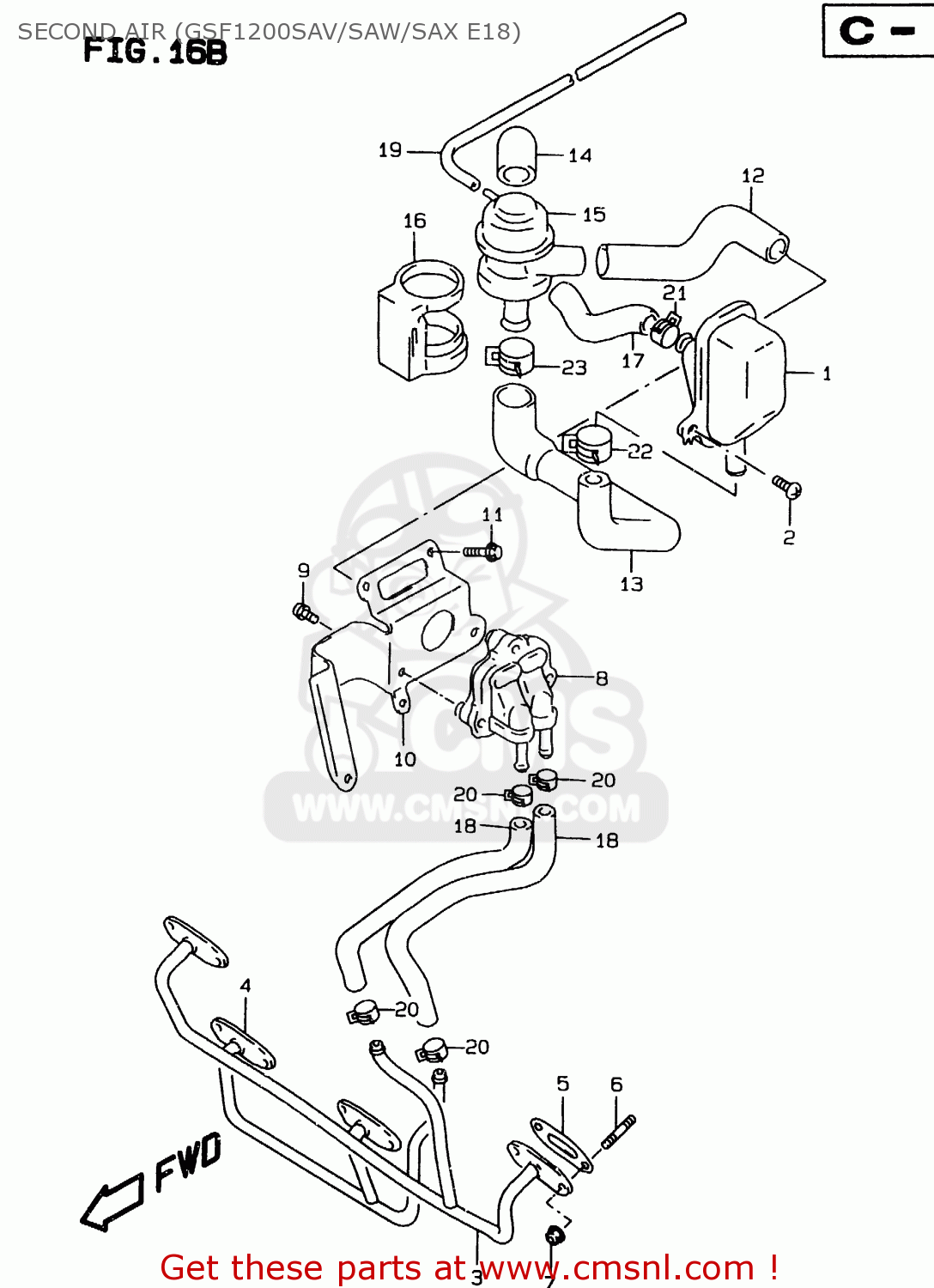

Second air (gsf1200sav/saw/sax e18) diagram GSF1200 2000 (Y) (E02 E04 E18 E22 E24 E25 E34)

SECOND AIR (GSF1200SAV/SAW/SAX E18) GSF1200 2000 (Y) (E02 E04 E18 E22 E24 E25 E34)

SECOND AIR (GSF1200SAV/SAW/SAX E18) GSF1200 2000 (Y) (E02 E04 E18 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

1

1380027E00
ref: 1

CLEANER ASSY,2ND AIR

€ 36.00

2

0214206163
ref: 2

SCREW

€ 2.50

3

1841027E10
ref: 3

PIPE COMP,SECOND AIR,OUTER

€ 0.00

4

1842027E10
ref: 4

PIPE COMP,SECOND AIR,INNER

€ 0.00

5

1844117C10
ref: 5

GASKET,SECOND AIR PIPE (NAS)

€ 7.00

6

0142106163
ref: 6

STUD BOLT

€ 2.00

7

0831610063
ref: 7

NUT

€ 2.50

8

1845048B00
ref: 8

VALVE ASSY,2ND AIR REED

€ 125.50

9

0713005167
ref: 9

BOLT

€ 2.50

10

1867027E00
ref: 10

BRACKET COMP,REED VALVE

€ 0.00

11

0155006123
ref: 11

BOLT

€ 2.50

12

1852127E10
ref: 12

HOSE,SECOND AIR SWITCH VALVE

€ 0.00

13

1871127E10
ref: 13

HOSE,SECOND AIR CLEANER

€ 0.00

14

1848339A00
ref: 14

CAP,SWITCHING VALVE

€ 7.50

15

1851046E00
ref: 15

VALVE ASSEMBLY,SECOND AIR SWITCH

€ 0.00

16

1848701D00
ref: 16

CUSHION,2ND AIR VALVE

€ 10.00

17

1873127E10
ref: 17

HOSE,SECOND AIR CLEANER INLET

€ 0.00

18

0935590145600
ref: 18
L:600->200

HOSE(9X14X600)

€ 10.00

19

0935940701600
ref: 19
L:600->400, MODEL V

HOSE(4X7X600)

€ 9.00

19

0935940701600
ref: 19
L:600->200, MODEL W/

HOSE(4X7X600)

€ 9.00

20

0940113417
ref: 20

CLIP

€ 2.50

21

0940116402
ref: 21
MODEL V

CLIP

€ 2.00

21

0940116403
ref: 21
MODEL W/X

CLIP

€ 2.00

22

0940121403
ref: 22
MODEL V

CLIP

€ 3.00

22

0940120405
ref: 22
MODEL W/X

CLIP

€ 3.00

23

0940125403
ref: 23

CLIP

€ 3.00
