CRANKSHAFT

GSF1200 2000 (Y) (E02 E04 E18 E22 E24 E25 E34)

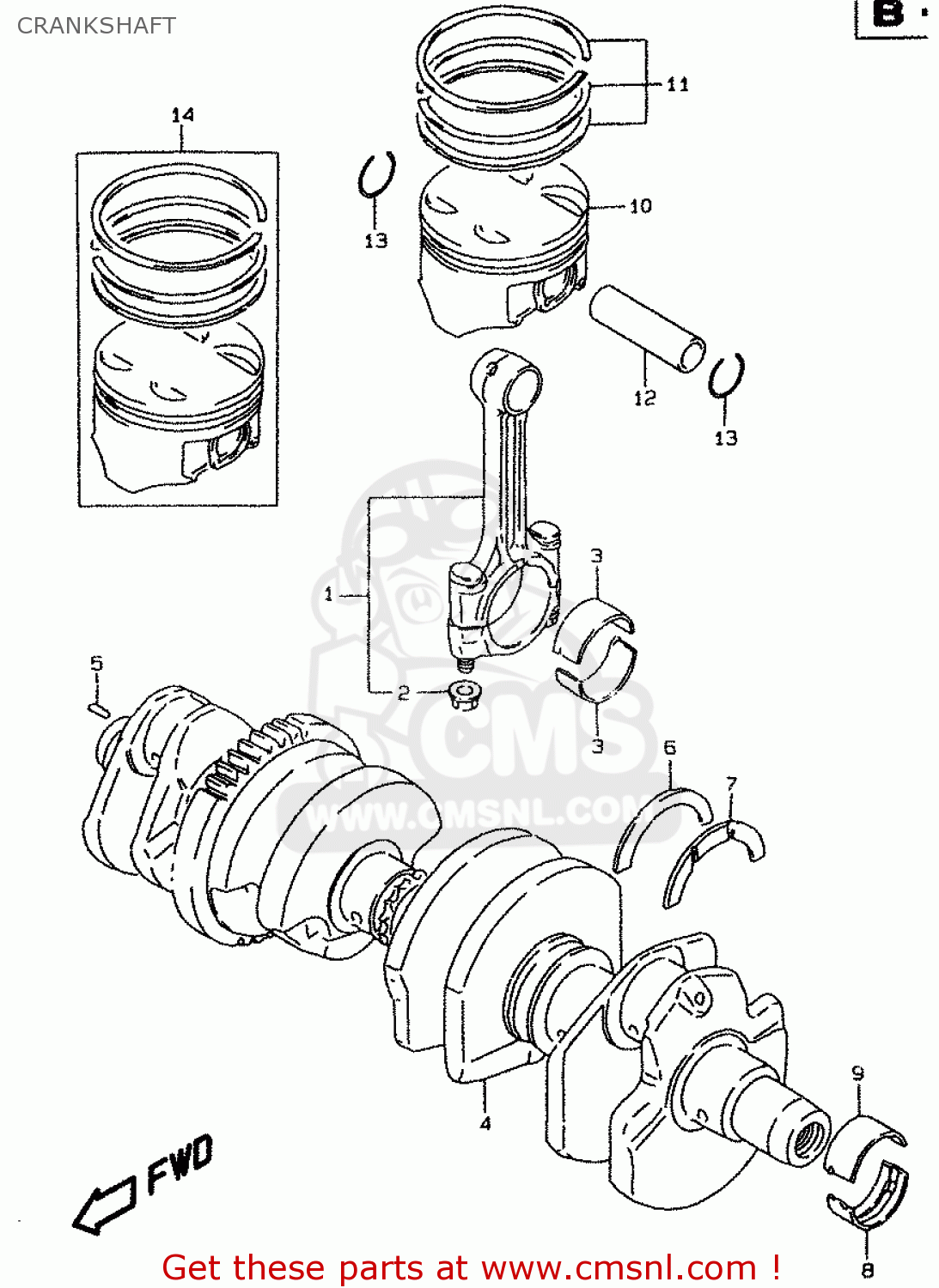

Crankshaft diagram GSF1200 2000 (Y) (E02 E04 E18 E22 E24 E25 E34)

CRANKSHAFT GSF1200 2000 (Y) (E02 E04 E18 E22 E24 E25 E34)

CRANKSHAFT GSF1200 2000 (Y) (E02 E04 E18 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

1

1216040C02
ref: 1
MODEL T/V/W

ROD ASSEMBLY,CONNECTING

€ 167.00

1

1216040C03
ref: 1
MODEL X

CONNECTING ROD ASSY

€ 167.00

2

0915909001
ref: 2

NUT

€ 4.50

3

1216446E010A0
ref: 3

BEARING,CRANK PIN

€ 17.50

3

1216446E010B0
ref: 3

BEARING,CRANK PIN

€ 16.50

3

1216446E010C0
ref: 3

BEARING,CRANK PIN

€ 17.50

3

1216446E010D0
ref: 3

BEARING,CRANK PIN

€ 16.50

4

1200027830
ref: 4
~E.NO.110512

CRANKSHAFT SET

€ 28,588.50

4

1200027831
ref: 4
E.NO.110513~

CRANKSHAFT SET

€ 28,588.50

5

0422104089
ref: 5

PIN

€ 1.50

6

1222848B000E0
ref: 6
RH

BEARING,CRANK THRUST(GREEN)

€ 8.00

7

1222848B000A0
ref: 7
LH

BEARING,CRANK THRUST(PINK)

€ 7.50

7

1222848B000B0
ref: 7
LH

BEARING,CRANK THRUST(BROWN)

€ 7.50

7

1222848B000C0
ref: 7
LH

BEARING,CRANK THRUST(RED)

€ 7.50

7

1222848B000D0
ref: 7
LH

BEARING,CRANK THRUST(YELLOW)

€ 7.50

7

1222848B000E0
ref: 7
LH

BEARING,CRANK THRUST(GREEN)

€ 8.00

7

1222848B000F0
ref: 7
LH

BEARING,CRANK THRUST(BLUE)

€ 7.50

7

1222848B000G0
ref: 7
LH

BEARING,CRANK THRUST(ORANGE)

€ 7.50

7

1222848B000H0
ref: 7
LH

BEARING,CRANK THRUST(BLACK)

€ 7.50

8

1222906B000A0
ref: 8
LOWER

BEARING,CRANKSHAFT LWR

€ 12.00

8

1222906B000B0
ref: 8
LOWER

BEARING,CRANKSHAFT LWR

€ 12.50

8

1222906B000C0
ref: 8
LOWER

BEARING,CRANKSHAFT LWR

€ 12.00

8

1222906B000D0
ref: 8
LOWER

BEARING,CRANKSHAFT LWR

€ 12.50

9

1222906B100A0
ref: 9
UPPER

BEARING,CRANKSHAFT UPR

€ 12.00

9

1222906B100B0
ref: 9
UPPER

BEARING,CRANKSHAFT UPR

€ 12.50

9

1222906B100C0
ref: 9
UPPER

BEARING,CRANKSHAFT UPR

€ 12.00

9

1222906B100D0
ref: 9
UPPER

BEARING,CRANKSHAFT UPR

€ 11.50

10

1211127E010F0
ref: 10

PISTON

€ 98.00

11

1214027E20
ref: 11

RING SET,PISTON

€ 89.50

12

1215105A00
ref: 12

PIN,PISTON

€ 12.00

13

0938120004
ref: 13

CIRCLIP,PISTON PIN

€ 2.00

14

1210027E01050
ref: 14
OPT

PISTON SET (OS:0.5)

€ 154.00

all assemblies
