FUEL TANK (MODEL V)

GSF1200S BANDIT 2000 (Y) USA (E03)

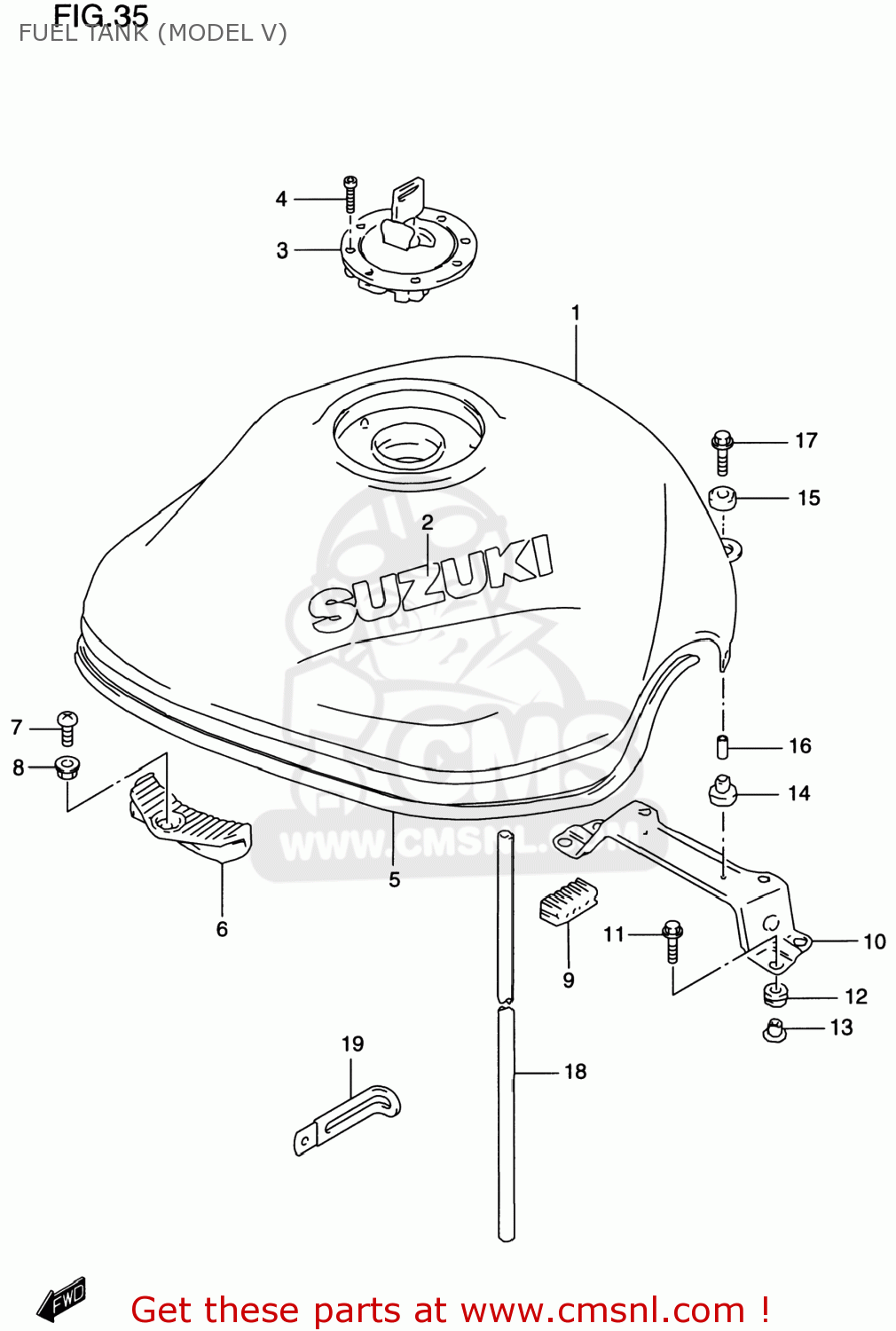

Fuel tank (model v) diagram GSF1200S BANDIT 2000 (Y) USA (E03)

FUEL TANK (MODEL V) GSF1200S BANDIT 2000 (Y) USA (E03)

FUEL TANK (MODEL V) GSF1200S BANDIT 2000 (Y) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

4410026E612KX
ref: 1-1
44100-26E30-2KX

TANK ASSEMBLY,FUEL (MAROON)

€ 795.50

1-2

4410026E61Y0N
ref: 1-2
44100-26E30-Y0N

TANK ASSEMBLY,FUEL

€ 918.50

1-3

4410026E612AX
ref: 1-3
44100-26E30-2AX

TANK ASSEMBLY,FUEL (BLACK)

€ 631.00

1-4

4410026E702KX
ref: 1-4
44100-26E40-2KX

TANK ASSEMBLY,FUEL

€ 407.00

1-5

4410026E70Y0N
ref: 1-5
44100-26E40-Y0N

TANK ASSEMBLY,FUEL

€ 443.00

1-6

4410026E7033J
ref: 1-6
44100-26E40-33J

TANK ASSEMBLY,FUEL

€ 466.00

2

6811147C001KK
ref: 2
68111-47C10-1KK

EMBLEM,FUEL TANK

€ 16.00

3-1

4420101832
ref: 3-1

CAP SET,FUEL TANK

€ 204.00

3-2

4420101842
ref: 3-2

CAP SET,FUEL

€ 160.50

4

0910605017
ref: 4

BOLT(5X20)

€ 3.00

5

6824104X5000B
ref: 5

MOLDING

€ 23.00

6

4451127E00
ref: 6

CUSHION,FUEL TANK FR

€ 11.00

7

0214205103
ref: 7
02142-0510B

SCREW

€ 2.50

8

0916905012
ref: 8

WASHER

€ 3.00

9

4514931300
ref: 9

CUSHION,SEAT(40X20X15)

€ 2.00

10

4453026E00
ref: 10

BRACKET,FUEL TANK RR

€ 35.00

11

0911606146
ref: 11
09116-06150

BOLT(6X25)

€ 2.50

12

0932009009
ref: 12

CUSHION

€ 5.00

13

0916906062
ref: 13

WASHER

€ 3.00

14

0932010038
ref: 14

CUSHION

€ 4.00

15

0932014017
ref: 15

CUSHION

€ 3.00

16

0918006271
ref: 16

SPACER(6.5X9X18)

€ 2.00

17

0911606172
ref: 17

BOLT(6X30)

€ 2.50

18

093527010300B
ref: 18

HOSE(7X10.2X2000)

€ 17.50

19

0940410417
ref: 19

CLAMP(L:97)

€ 2.50
