MUFFLER
GSF1200S BANDIT 2000 (Y) USA (E03)

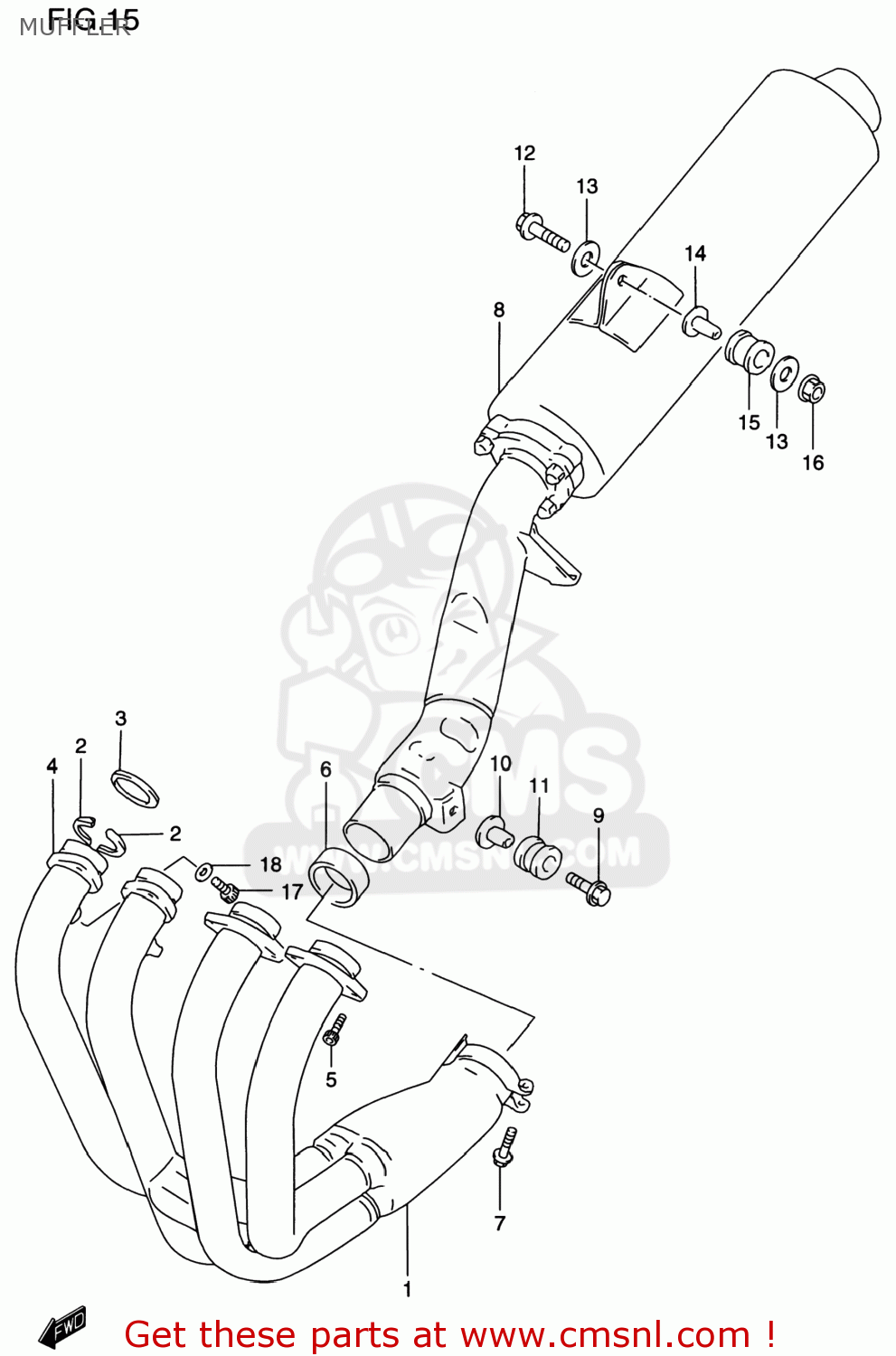

Muffler diagram GSF1200S BANDIT 2000 (Y) USA (E03)
MUFFLER GSF1200S BANDIT 2000 (Y) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1410027E00
ref: 1
EXHAUST
€ 985.00
2
1415527A00
ref: 2
PLATE,EXHAUST PIPE
€ 3.50
3
1418118C00
ref: 3
GASKET,EXHAUST (NAS)
€ 6.50
4
1418226D00
ref: 4
CLAMP,EXHAUST PIPE
€ 21.00
5
0713008257
ref: 5
BOLT
€ 3.50
6
1477127E00
ref: 6
CONNECTOR,MUFFLER
€ 29.00
7
0155008403
ref: 7
01550-0840A
BOLT
€ 3.50
8
1431027E00H01
ref: 8
14310-27E10-H01
BODY,MUFFLER
€ 1,306.50
9
0911808068
ref: 9
09118-08145
BOLT 8X40
€ 7.50
10
0918008152
ref: 10
SPACER(8.6X12X24.2)
€ 6.00
11
0932012048
ref: 11
CUSHION
€ 5.00
12
0155008457
ref: 12
BOLT
€ 4.00
13-1
0916008106
ref: 13-1
09160-08146
WASHER (8.1X33X1.6)
€ 3.00
13-2
0916008140
ref: 13-2
09160-08146
WASHER (8.5X33X1.6)
€ 3.00
14
0918008156
ref: 14
SPACER(8.6X12X27.1)
€ 6.50
15
0932012049
ref: 15
CUSHION
€ 9.00
16
0836125088
ref: 16
08361-2508A
NUT
€ 2.50
17
0910606076
ref: 17
BOLT(6X10)
€ 2.50
18
0916006055
ref: 18
WASHER(7X12X1)
€ 2.00
