WIRING HARNESS (GSF1200SAV)

GSF1200S BANDIT 2000 (Y) USA (E03)

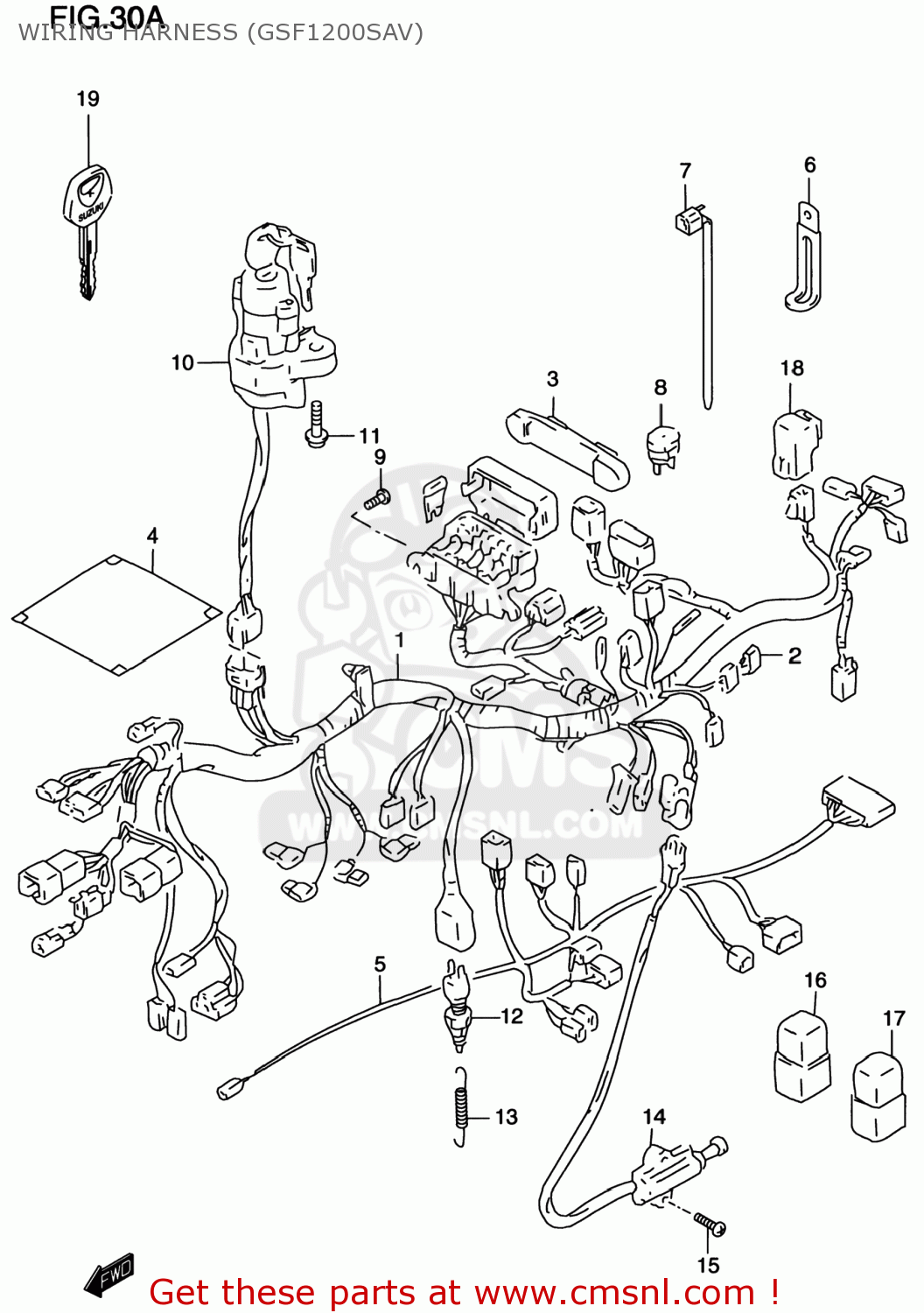

Wiring harness (gsf1200sav) diagram GSF1200S BANDIT 2000 (Y) USA (E03)

WIRING HARNESS (GSF1200SAV) GSF1200S BANDIT 2000 (Y) USA (E03)

WIRING HARNESS (GSF1200SAV) GSF1200S BANDIT 2000 (Y) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3661027EB0
ref: 1

HARNESS,WIRING NO.1

€ 549.50

2

3661138A00
ref: 2

DIODE(STANLEY DE8804)

€ 13.00

3

3674427E00
ref: 3

HOLDER,FUSE BOX

€ 3.50

4

3661815D20
ref: 4

COVER,WIRING HARNESS

€ 12.00

5

3662027EA0
ref: 5

HARNESS,WIRING NO.2

€ 333.50

6-1

0940406431
ref: 6-1
09404-06432

CLAMP(L:65)

€ 2.50

6-2

0940408417
ref: 6-2
09404-08205

CLAMP L:62

€ 3.00

7-1

0940711401
ref: 7-1

CLAMP(L:95)

€ 2.50

7-2

0940714403
ref: 7-2

CLAMP(L:125)

€ 2.50

7-3

0940725401
ref: 7-3

CLAMP(L:235)

€ 4.00

8

3675005A00
ref: 8

BREAKER ASSY,CIRCUT

€ 36.50

9

0214206123
ref: 9
02142-0612A

SCREW 6X12

€ 2.00

10

3710033E01
ref: 10

LOCK ASSY,STEERING

€ 170.00

11

0913908016
ref: 11

BOLT(8X20)

€ 3.50

12

3774024A00
ref: 12

SWITCH ASSY,STOP LAMP

€ 20.50

13

0944306054
ref: 13

SPRING

€ 2.50

14

3784044X50
ref: 14

SWITCH ASSY,SIDE STAND

€ 75.50

15

0214206203
ref: 15
02142-0620A

SCREW

€ 2.00

16

3886051E10
ref: 16

RELAY ASSY,ABS MOTOR

€ 98.00

17

3886051E20
ref: 17

RELAY ASSY,ABS VALVE

€ 114.00

18

3874026E00
ref: 18

RELAY ASSY

€ 32.50

19

3714633E00
ref: 19

KEY,BLANK

€ 13.00
