SEAT

GSF1200S BANDIT 2000 (Y) USA (E03)

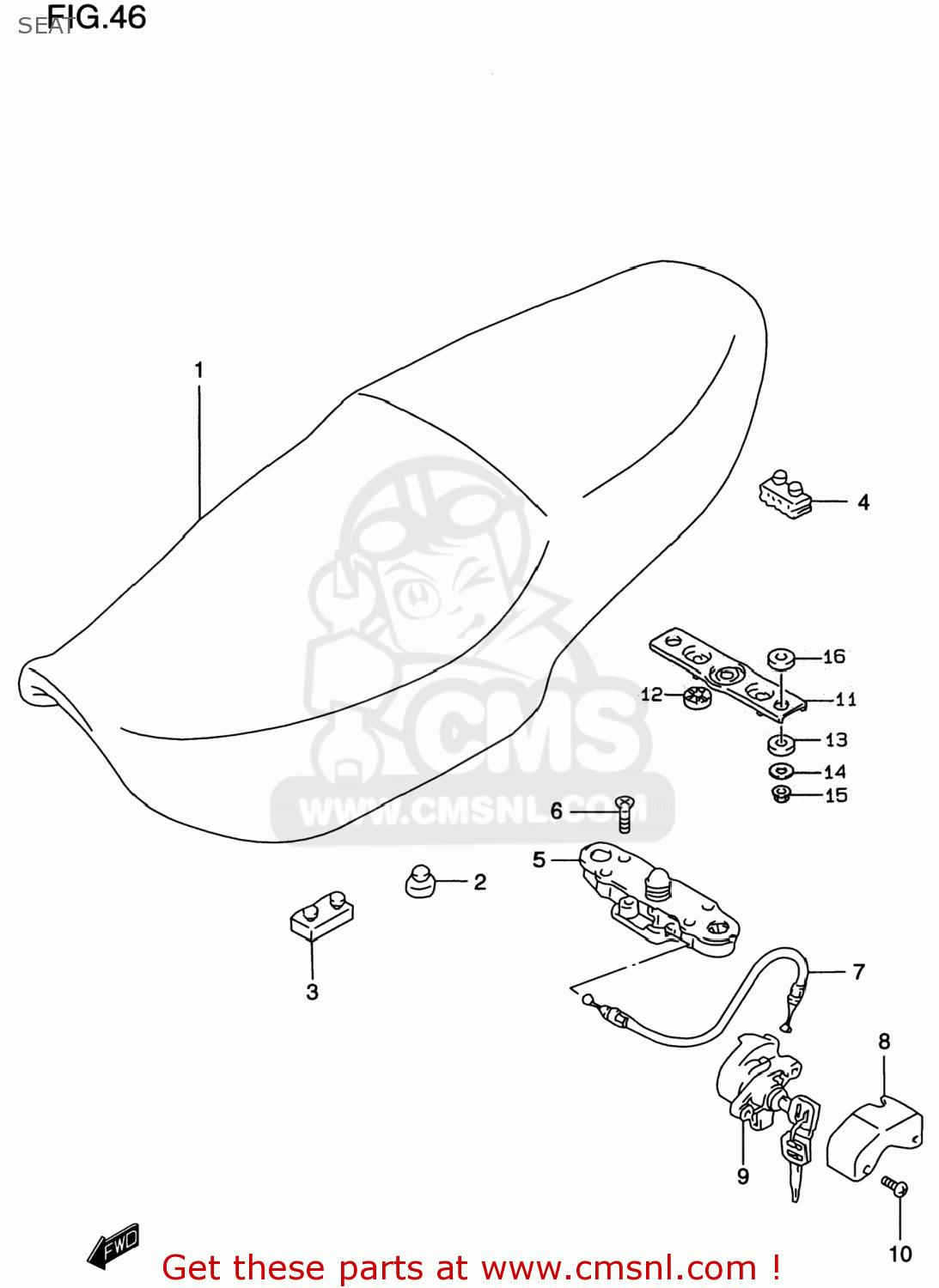

Seat diagram GSF1200S BANDIT 2000 (Y) USA (E03)

SEAT GSF1200S BANDIT 2000 (Y) USA (E03)

SEAT GSF1200S BANDIT 2000 (Y) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

4510026E31P21
ref: 1-1
45100-26E32-P21

SEAT ASSEMBLY (BLACK)

€ 175.50

1-2

4510026E70P21
ref: 1-2
45100-26E71-P21

SEAT ASSEMBLY

€ 170.50

2

0932110012
ref: 2

CUSHION

€ 3.00

3

0932108006
ref: 3

CUSHION

€ 3.00

4

4514931300
ref: 4

CUSHION,SEAT(40X20X15)

€ 2.00

5

4522013601
ref: 5

LOCK ASSY,SEAT STRIKER

€ 47.00

6

0211206303
ref: 6
02112-0630A

SCREW 6X30

€ 2.50

7

4528008A00
ref: 7

CABLE,SEAT LOCK

€ 13.00

8

4528926E00
ref: 8

GUARD,SEAT LOCK

€ 13.00

9

9570010833
ref: 9
95700-10835

LOCK SET,SEAT & HELMET

€ 99.50

10-1

0913906092
ref: 10-1

SCREW(6X14)

€ 3.50

10-2

4579126E00
ref: 10-2
09139-05072

SCREW,SEAT LOCK

€ 2.50

11

4521526E00
ref: 11

STRIKER,SEAT LOCK

€ 38.50

12

4521313601
ref: 12

CUSHION,SEAT LOCK(10X22X6)

€ 1.50

13

0932014017
ref: 13

CUSHION

€ 3.00

14

0821206201
ref: 14

WASHER

€ 1.50

15

0831620063
ref: 15
08316-2006A

NUT

€ 2.00

16

0932010038
ref: 16

CUSHION

€ 4.00
