FUEL TANK (MODEL X)

GSF1200S BANDIT 2000 (Y) USA (E03)

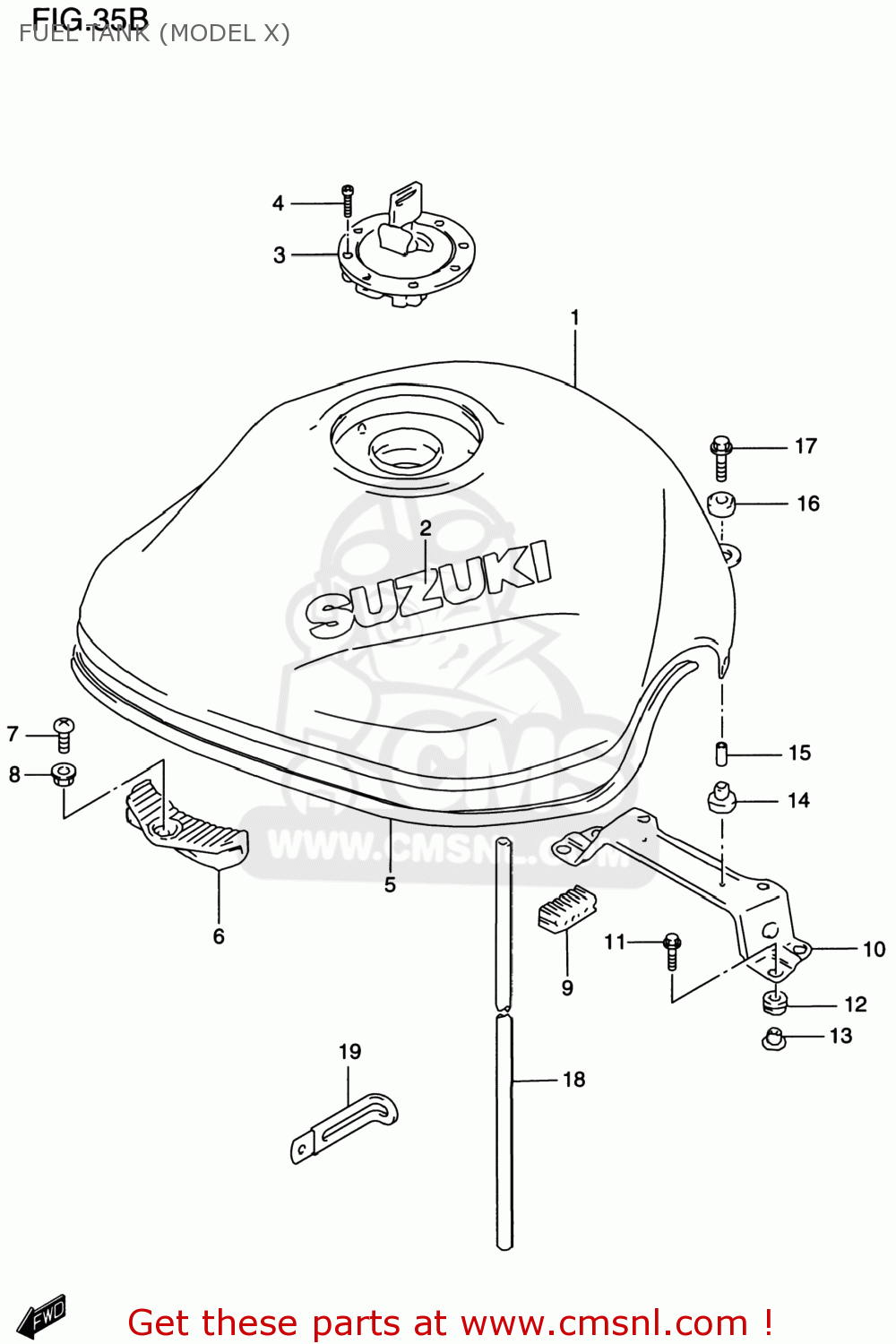

Fuel tank (model x) diagram GSF1200S BANDIT 2000 (Y) USA (E03)

FUEL TANK (MODEL X) GSF1200S BANDIT 2000 (Y) USA (E03)

FUEL TANK (MODEL X) GSF1200S BANDIT 2000 (Y) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

4410026E612JX
ref: 1-1
44100-26E30-YAY

TANK ASSEMBLY,FUEL (BLACK)

€ 502.50

1-2

4410026E61Y7G
ref: 1-2
44100-26E30-Y7G

TANK ASSEMBLY,FUEL (GREEN)

€ 596.00

1-3

4410026E702JX
ref: 1-3
44100-26E40-2JX

TANK ASSEMBLY,FUEL (BLACK)

€ 434.50

1-4

4410026E70Y7G
ref: 1-4
44100-26E40-Y7G

TANK ASSY,FUEL

€ 421.50

2-1

6811147C0024G
ref: 2-1
68111-47C10-24G

EMBLEM,FUEL TANK

€ 17.50

2-2

6811147C001RR
ref: 2-2
68111-47C10-1RR

EMBLEM,FUEL TANK (GOLD)

€ 13.00

3-1

4420101832
ref: 3-1

CAP SET,FUEL TANK

€ 204.00

3-2

4420101842
ref: 3-2

CAP SET,FUEL

€ 160.50

4

0910605017
ref: 4

BOLT(5X20)

€ 3.00

5

6824104X5000B
ref: 5

MOLDING

€ 23.00

6

4451127E00
ref: 6

CUSHION,FUEL TANK FR

€ 11.00

7

0214205103
ref: 7
02142-0510B

SCREW

€ 2.50

8

0916905012
ref: 8

WASHER

€ 3.00

9

4514931300
ref: 9

CUSHION,SEAT(40X20X15)

€ 2.00

10

4453026E00
ref: 10

BRACKET,FUEL TANK RR

€ 35.00

11

0911606131
ref: 11

BOLT(6X25)

€ 2.00

12

0932009009
ref: 12

CUSHION

€ 5.00

13

0916906062
ref: 13

WASHER

€ 3.00

14

0932010038
ref: 14

CUSHION

€ 4.00

15

0918006271
ref: 15

SPACER(6.5X9X18)

€ 2.00

16

0932014017
ref: 16

CUSHION

€ 3.00

17

0911606172
ref: 17

BOLT(6X30)

€ 2.50

18

093527010300B
ref: 18

HOSE(7X10.2X2000)

€ 17.50

19

0940410417
ref: 19

CLAMP(L:97)

€ 2.50
