REAR SWINGING ARM (GSF1200SAV)

GSF1200S BANDIT 2000 (Y) USA (E03)

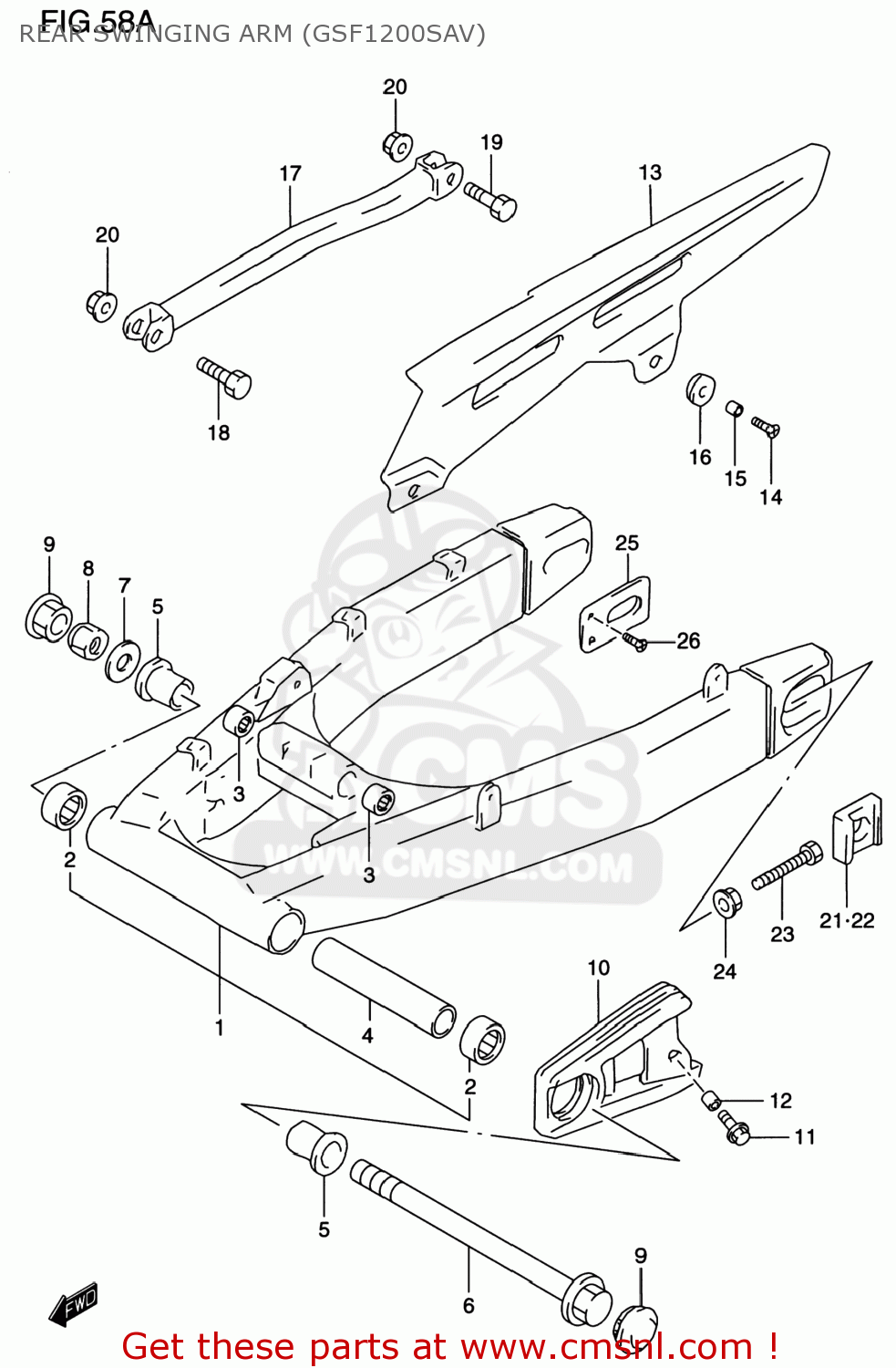

Rear swinging arm (gsf1200sav) diagram GSF1200S BANDIT 2000 (Y) USA (E03)

REAR SWINGING ARM (GSF1200SAV) GSF1200S BANDIT 2000 (Y) USA (E03)
REAR SWINGING ARM (GSF1200SAV) GSF1200S BANDIT 2000 (Y) USA (E03)
REAR SWINGING ARM (GSF1200SAV) GSF1200S BANDIT 2000 (Y) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
6100027E60
ref: 1
SWING ARM ASSEMBLY,REAR
€ 1,721.50
2
0926325059
ref: 2
BEARING(25X33X35)
0926325059
€ 35.00
3
0926317037
ref: 3
BEARING(17X24X25)
0926317037
€ 19.00
4
6128231E00
ref: 4
SPACER,RR SWGARM PIVOT CTR
€ 19.00
5
6125131E00
ref: 5
SPACER,RR SWGARM PIVOT BERRING
6125131E00
€ 16.00
6
6121131E00
ref: 6
SHAFT,RR SWINGINGARM PIVOT
6121131E00
€ 53.00
7
0916018030
ref: 7
WASHER(18.5X28X2.6)
0916018030
€ 2.50
8
0915918007
ref: 8
NUT
0915918007
€ 14.00
9
4358521E00
ref: 9
CAP,FRAME PIVOT
4358521E00
€ 9.00
10
6127327E11
ref: 10
BUFFER,CHAIN TOUCH DEFENSE
6127327E11
€ 42.00
11
0911606152
ref: 11
BOLT(6X20)
0911606152
€ 2.00
12
0918006283
ref: 12
SPACER(6.5X10X7)
0918006283
€ 2.00
13
6131127E00
ref: 13
CASE,CHAIN
6131127E00
€ 159.50
14
0913606011
ref: 14
09136-06017
SCREW (6X16)
€ 2.50
15
0918006092
ref: 15
SPACER(6.2X8.3X6.1)
0918006092
€ 4.00
16
0932008013
ref: 16
CUSHION
0932008013
€ 4.00
17
6431027E50019
ref: 17
TORQUELINK,RR
€ 40.00
18
0911110051
ref: 18
BOLT(10X39)
0911110051
€ 8.50
19
0910010187
ref: 19
BOLT(10X34)
0910010187
€ 4.50
20
0831931107
ref: 20
NUT
0831931107
€ 3.00
21
6144627C20
ref: 21
WASHER,CHAIN ADJUSTER
6144627C20
€ 23.50
22
6144617E10
ref: 22
WASHER,CHAIN ADJUSTER
6144617E10
€ 28.50
23
0910008287
ref: 23
BOLT(8X50)
0910008287
€ 3.00
24
0831610083
ref: 24
08316-1008B
NUT
0831610083
€ 3.00
25
6112417E10
ref: 25
PLATE,RR SWING ARM BRKT
6112417E10
€ 4.50
26
0214206163
ref: 26
02142-0616A
SCREW
0214206163
€ 2.50
