BATTERY
GSF1200S BANDIT 2004 (K4) USA (E03)

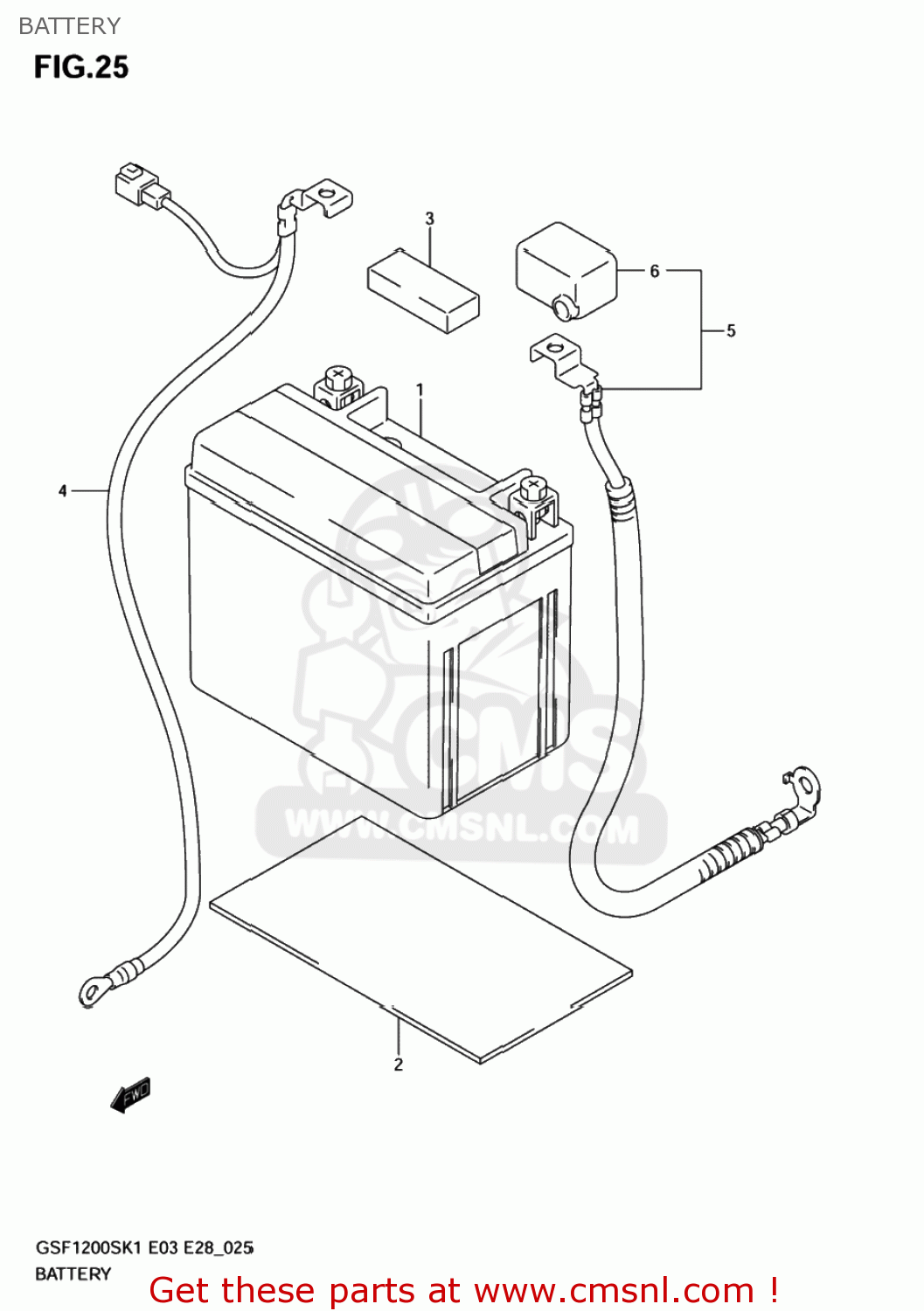

Battery diagram GSF1200S BANDIT 2004 (K4) USA (E03)
BATTERY GSF1200S BANDIT 2004 (K4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3361017E10
ref: 1
33610-48E20
BATTERY ASSY(YTX12-BS,12V10AH)
€ 97.50
1
3361017E10
ref: 1
33610-48E20
BATTERY ASSY(YTX12-BS,12V10AH)
€ 97.50
2
3365137000
ref: 2
PROTECTOR(170X95X3.0)
€ 5.00
2
3365137000
ref: 2
PROTECTOR(170X95X3.0)
€ 5.00
3
3365231F00
ref: 3
PROTECTOR(20X50X11)
€ 3.00
4
3386032F00
ref: 4
WIRE,BATTERY MINUS LEAD
€ 29.00
5
3382031F00
ref: 5
WIRE,BATTERY PLUS LEAD
€ 22.50
6
3362416E00
ref: 6
CAP,BATTERY PLUS
€ 4.00
