Buy Suzuki GSF Parts Online


SEAT TAIL COVER (GSF1200SK5)

GSF1200S BANDIT 2004 (K4) USA (E03)

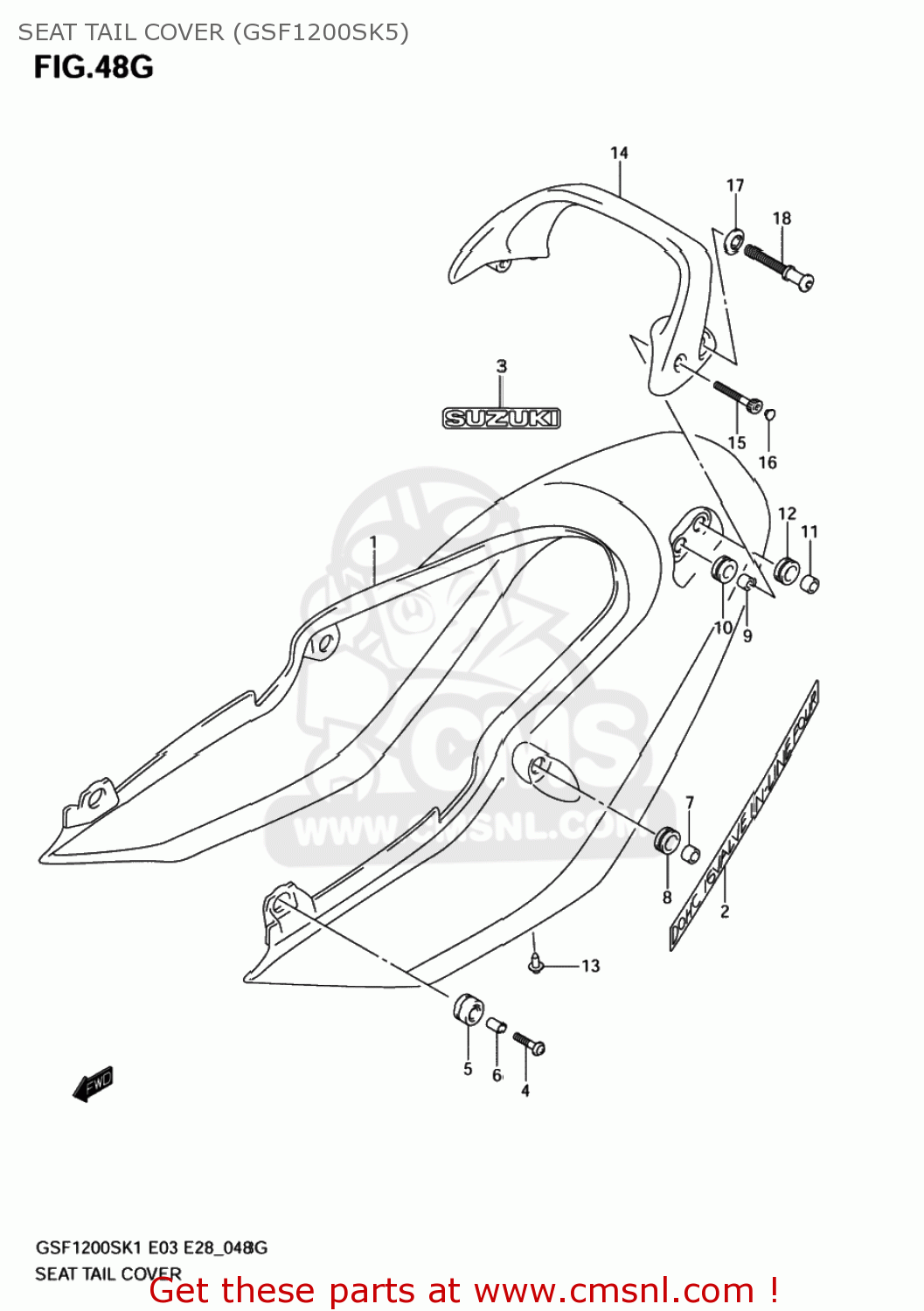

Seat tail cover (gsf1200sk5) diagram GSF1200S BANDIT 2004 (K4) USA (E03)

SEAT TAIL COVER (GSF1200SK5) GSF1200S BANDIT 2004 (K4) USA (E03)
SEAT TAIL COVER (GSF1200SK5) GSF1200S BANDIT 2004 (K4) USA (E03)
SEAT TAIL COVER (GSF1200SK5) GSF1200S BANDIT 2004 (K4) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
4551032F80YAY
ref: 1-1
COVER,SEAT TAIL
€ 370.50
1-2
4551032F80YD8
ref: 1-2
COVER,SEAT TAIL
4551032F80YD8
€ 202.50
2-1
6813132F10BMN
ref: 2-1
EMBLEM,SEAT TAIL COVER
€ 9.50
2-2
6813132F10BMM
ref: 2-2
EMBLEM,SEAT TAIL COVER
€ 9.50
3-1
6816516B00YD8
ref: 3-1
EMBLEM,SUZUKI
€ 7.50
3-2
6816516B0017U
ref: 3-2
EMBLEM,SUZUKI
€ 7.50
4
0913606083
ref: 4
SCREW(6X30)
0913606083
€ 3.00
5
4711519F00
ref: 5
CUSHION,SEAT TAIL COVER FR
4711519F00
€ 14.50
6
0918006291
ref: 6
SPACER(6.5X10X13)
0918006291
€ 2.00
7
0918008199
ref: 7
SPACER,8.5X14X9
0918008199
€ 2.50
8
0932014023
ref: 8
CUSHION
0932014023
€ 5.00
9
0918006300
ref: 9
SPACER(6.5X12X9)
0918006300
€ 5.50
10
0932012068
ref: 10
CUSHION
0932012068
€ 3.50
11
0918008199
ref: 11
SPACER,8.5X14X9
0918008199
€ 2.50
12
0932014023
ref: 12
CUSHION
0932014023
€ 5.00
13
09409063145PK
ref: 13
CLIP(BLACK)
09409063145PK
€ 3.50
14-1
4621132F00YAY
ref: 14-1
46211-32F10-YAY
HANDLE,PILLION
€ 136.50
14-2
4621132F00YD8
ref: 14-2
HANDLE,PILLION
€ 166.50
15
0712006453
ref: 15
07120-0645B
06453
€ 3.50
16
0925005009
ref: 16
CAP(OD:10)
0925005009
€ 2.50
17
4631731F00
ref: 17
WASHER,HOOK
4631731F00
€ 5.50
18
4631631F00
ref: 18
HOOK,PILLION RIDER HANDLE
4631631F00
€ 11.00
