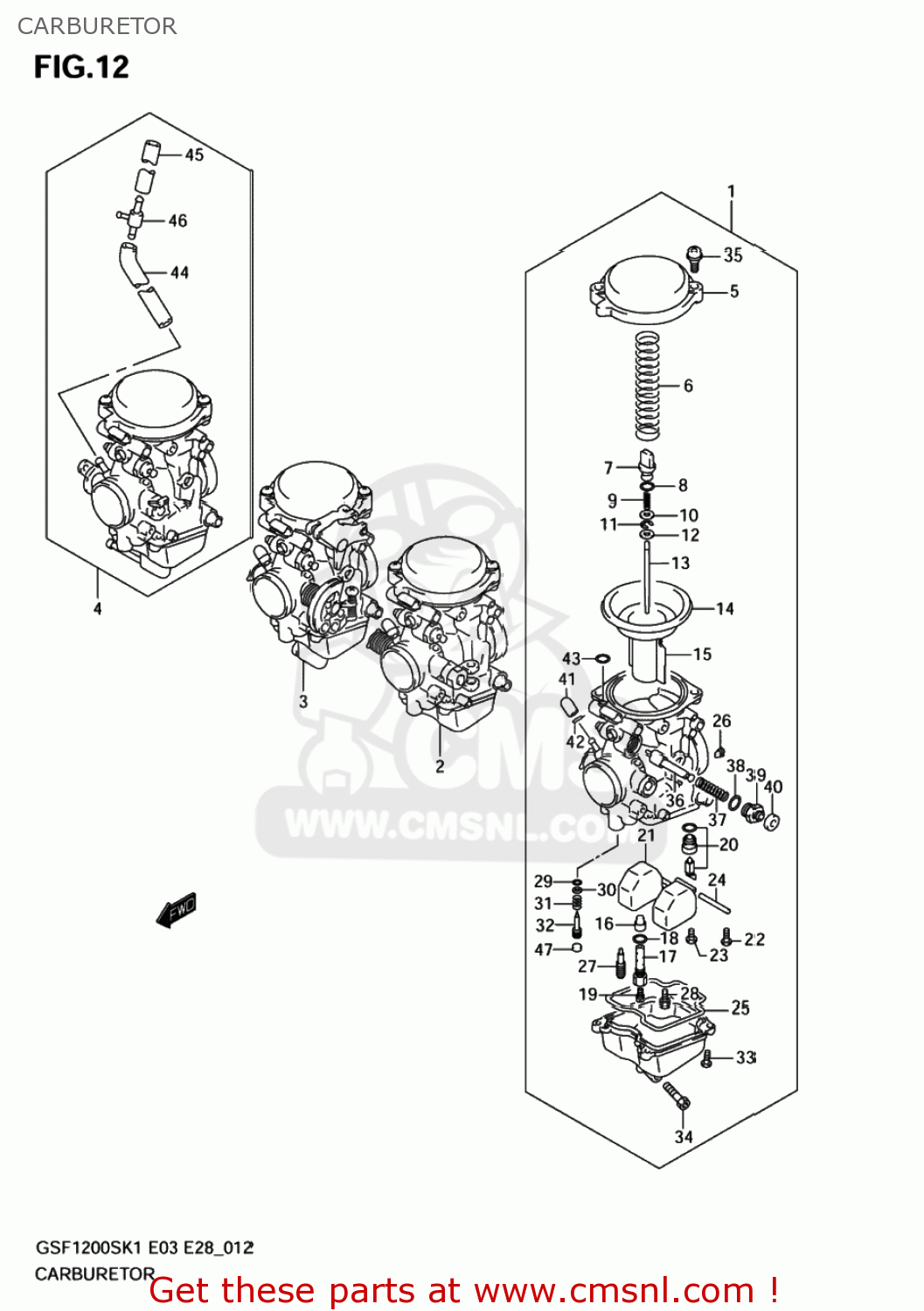

CARBURETOR

ref

part #

description

quantity

1-1

1320132F10
ref: 1-1

CARBURETOR ASSY,L

€ 0.00

1-2

1320132F20
ref: 1-2

CARBURETOR ASSY,L

€ 0.00

2-1

1320232F10
ref: 2-1

CARBURETOR ASSY,ML

€ 0.00

2-2

1320232F20
ref: 2-2

CARBURETOR ASSY,ML

€ 0.00

3-1

1320332F10
ref: 3-1

CARBURETOR ASSY,MR

€ 0.00

3-2

1320332F20
ref: 3-2

CARBURETOR ASSY,MR

€ 0.00

4-1

1320432F10
ref: 4-1

CARBURETOR ASSY,R

€ 0.00

4-2

1320432F20
ref: 4-2

CARBURETOR ASSY,R

€ 0.00

5

1350208F00
ref: 5

COVER,DIAPHRAGM

€ 32.00

6

1357333E00
ref: 6

SPRING

€ 10.50

7

1341833E00
ref: 7

HOLDER

€ 4.50

8

0928005004
ref: 8

O RING(D:1.9,ID:4.8)

€ 2.00

9

1348133E00
ref: 9

SPRING

€ 3.00

10

1338219E00
ref: 10

WASHER

€ 3.00

11

1339417E60
ref: 11

E RING,MULTIPLE JET NOZZLE

€ 1.50

12

1338744030
ref: 12

RING

€ 5.00

13

1338332F10
ref: 13

NEEDLE,JET(5C71-1)

€ 0.00

14

1350717C01
ref: 14

DIAPHRAGM

€ 24.50

15

1350108F00
ref: 15

VALVE,PISTON

€ 83.50

16

0949400921
ref: 16

JET,NEEDLE(P-0M)

€ 44.50

17

1338508F00
ref: 17

HOLDER,JET

€ 32.00

18

1324643010
ref: 18

O RING

€ 4.00

19

0949120019
ref: 19

JET,MAIN(100)

€ 7.50

20

1337008F50
ref: 20

VALVE ASSY,NEEDLE

€ 68.50

21

1325004F00
ref: 21

FLOAT ASSY

€ 27.50

22

0211204083
ref: 22
02112-0408A

SCREW

€ 2.00

23

1360205A10
ref: 23

SCREW

€ 4.00

24

1325401010
ref: 24

PIN,FLOAT

€ 3.00

25

1325804F00
ref: 25

GASKET (NAS)

€ 9.00

26

0949334004
ref: 26

JET,PILOT AIR(1.7)

€ 15.50

27

0949215017
ref: 27

JET,PILOT(15)

€ 19.50

28

0949160010
ref: 28

JET,MAIN(60)

€ 16.00

29

1329529900
ref: 29

O RING,PILOT AIR SCREW

€ 4.00

30

1329129900
ref: 30

WASHER

€ 2.00

31

1326848700
ref: 31

SPRING,THROTTLE SCREW

€ 3.50

32

1327919F10
ref: 32

ADJUSTER

€ 12.50

33

0211204107
ref: 33

SCREW

€ 2.00

34

1324713A00
ref: 34
13247-02340

SCREW,DRAIN

€ 5.50

35

1324733E00
ref: 35

SCREW

€ 3.00

36

1341105300
ref: 36

PLUNGER

€ 23.50

37

1341726D00
ref: 37

SPRING

€ 5.50

38

1327847090
ref: 38

O RING

€ 2.00

39

1341844080
ref: 39

GUIDE SCREW,PLUNGER

€ 8.00

40

1368231210
ref: 40

CAP,STARTER VALVE

€ 5.00

41

1327484000
ref: 41

CAP

€ 5.50

42

0940106101
ref: 42

CLIP

€ 2.50

43

1329533010
ref: 43

O RING

€ 4.50

44

0935250903600
ref: 44

HOSE(5X9X600)

€ 28.50

45

1368332F00
ref: 45

HOSE

€ 20.00

46

1368548B00
ref: 46

NIPPLE

€ 9.00

47

1328105A00
ref: 47

PLUG

€ 3.50
