TURN SIGNAL LAMP (GSF1200K1/K2/K3)

GSF1200S BANDIT 2004 (K4) USA (E03)

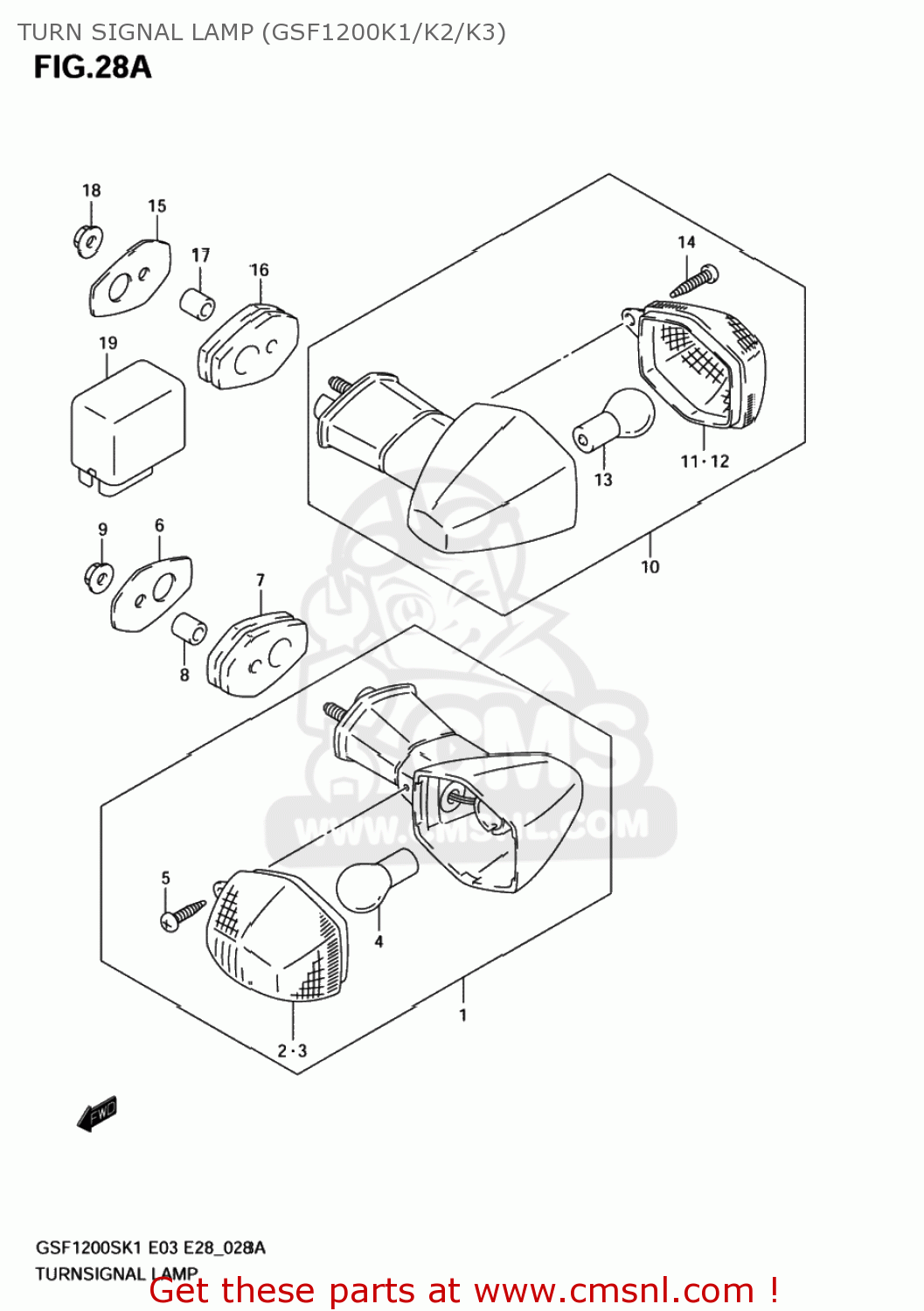

Turn signal lamp (gsf1200k1/k2/k3) diagram GSF1200S BANDIT 2004 (K4) USA (E03)

TURN SIGNAL LAMP (GSF1200K1/K2/K3) GSF1200S BANDIT 2004 (K4) USA (E03)
TURN SIGNAL LAMP (GSF1200K1/K2/K3) GSF1200S BANDIT 2004 (K4) USA (E03)
TURN SIGNAL LAMP (GSF1200K1/K2/K3) GSF1200S BANDIT 2004 (K4) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
3560131FA0
ref: 1-1
LAMP ASSY,FR TURN SIGNAL,R
3560131FA0
€ 48.00
1-2
3560231FA0
ref: 1-2
LAMP ASSY,FR TURN SIGNAL,L
€ 0.00
2
3561231F30
ref: 2
LENS
3561231F30
€ 7.00
3
3563231F30
ref: 3
LENS
3563231F30
€ 7.00
4
0947112045
ref: 4
BULB(12V21W)
0947112045
€ 5.00
5
0324204163
ref: 5
03242-0416B
SCREW
€ 4.50
6
3562931F00
ref: 6
PLATE,FR TURNSIGNAL
3562931F00
€ 4.00
7
3569031F50
ref: 7
CUSHION,FR TURNSIGNAL
3569031F50
€ 18.00
8
0918005301
ref: 8
SPACER(5.5X9.5X10)
0918005301
€ 2.50
9
0831610053
ref: 9
08316-1005A
NUT
0831610053
€ 2.50
10-1
3560331F30
ref: 10-1
LAMP ASSY,RR TURNSIGNAL,R
3560331F30
€ 81.50
10-2
3560431F30
ref: 10-2
LAMP ASSY,RR TURNSIGNAL,L
3560431F30
€ 69.00
11
3563231F30
ref: 11
LENS
3563231F30
€ 7.00
12
3561231F30
ref: 12
LENS
3561231F30
€ 7.00
13
0947112045
ref: 13
BULB(12V21W)
0947112045
€ 5.00
14
0324204163
ref: 14
03242-0416B
SCREW
€ 4.50
15
3562931F00
ref: 15
PLATE,FR TURNSIGNAL
3562931F00
€ 4.00
16
3569031F00
ref: 16
CUSHION,FR TURNSIGNAL
3569031F00
€ 19.50
17
0918005301
ref: 17
SPACER(5.5X9.5X10)
0918005301
€ 2.50
18
0831610053
ref: 18
08316-1005A
NUT
0831610053
€ 2.50
19
3861003F00
ref: 19
RELAY ASSY,TURNSIGNAL LAMP
3861003F00
€ 88.50
