HEADLAMP (GSF1200SK1/SK2/SK3/SK4/SK5/SZK5)

GSF1200S BANDIT 2004 (K4) USA (E03)

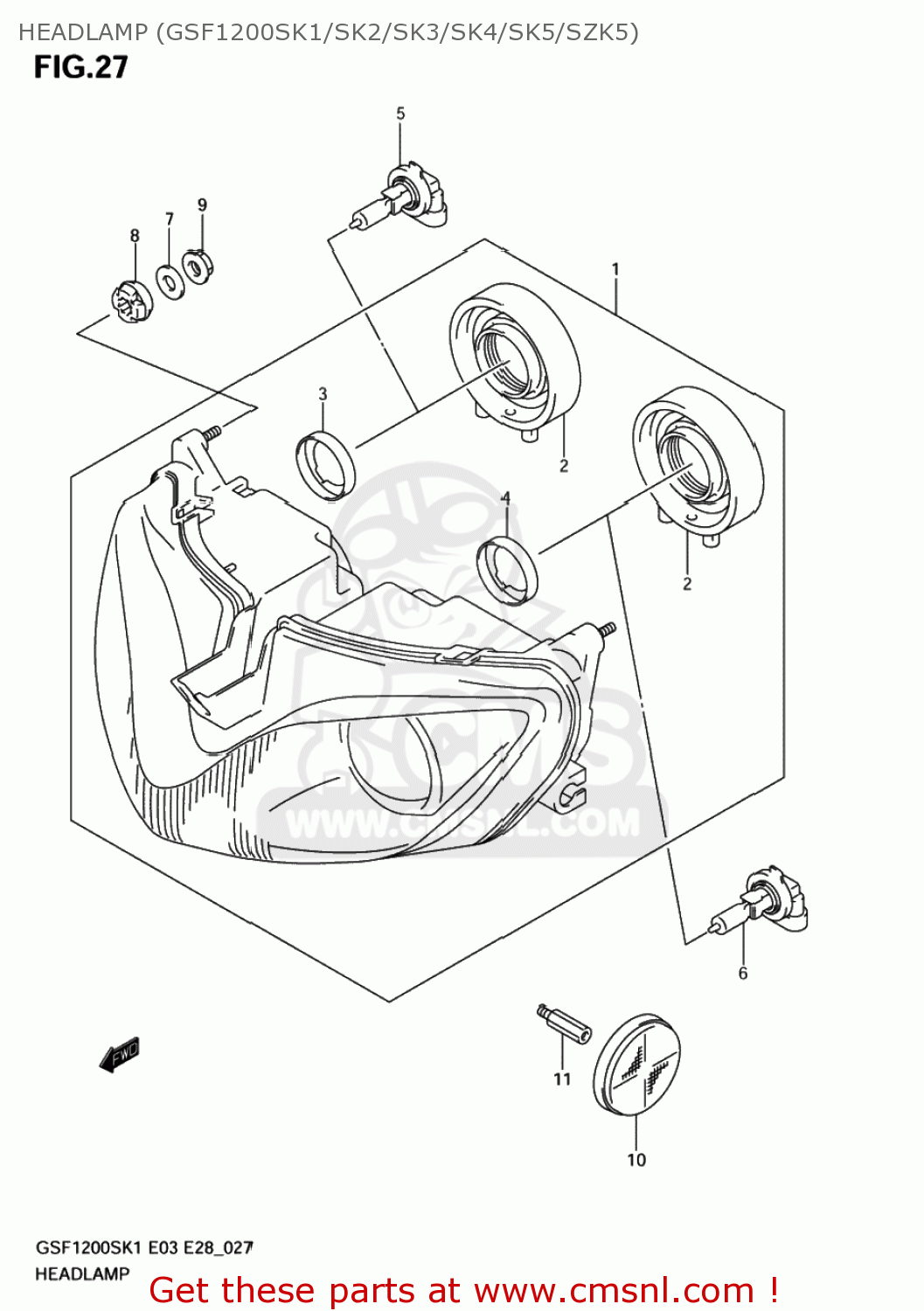

Headlamp (gsf1200sk1/sk2/sk3/sk4/sk5/szk5) diagram GSF1200S BANDIT 2004 (K4) USA (E03)

HEADLAMP (GSF1200SK1/SK2/SK3/SK4/SK5/SZK5) GSF1200S BANDIT 2004 (K4) USA (E03)
HEADLAMP (GSF1200SK1/SK2/SK3/SK4/SK5/SZK5) GSF1200S BANDIT 2004 (K4) USA (E03)
HEADLAMP (GSF1200SK1/SK2/SK3/SK4/SK5/SZK5) GSF1200S BANDIT 2004 (K4) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
3510031F30999
ref: 1
HEADLAMP ASSY
€ 685.00
2
3512524F00
ref: 2
SOCKET,COVER
3512524F00
€ 22.50
3
3512731F50
ref: 3
RING,HEADLAMP BULB,R
3512731F50
€ 10.50
4
3532731F50
ref: 4
RING,HEADLAMP BULB,L
3532731F50
€ 8.00
5
0947112151
ref: 5
BULB(12V60W,HB3,#9005)
0947112151
€ 56.50
6
0947112150
ref: 6
BULB(12V51W,HB4,P22D)
0947112150
€ 14.50
7
0916006088
ref: 7
WASHER(6.5X20X1.6)
0916006088
€ 2.00
8
0932009010
ref: 8
CUSHION
0932009010
€ 2.50
9
0831610063
ref: 9
08316-1006B
NUT
0831610063
€ 2.50
10
3595014A00
ref: 10
REFLECTOR,REFLEX FR
3595014A00
€ 15.00
11-1
3595905900
ref: 11-1
09119-05023
BOLT,FRONT SIDE,REAR
€ 7.50
11-2
0911905023
ref: 11-2
BOLT(5X10)
0911905023
€ 7.50
