BATTERY

GSF1250S BANDIT 2008 (K8) USA (E03)

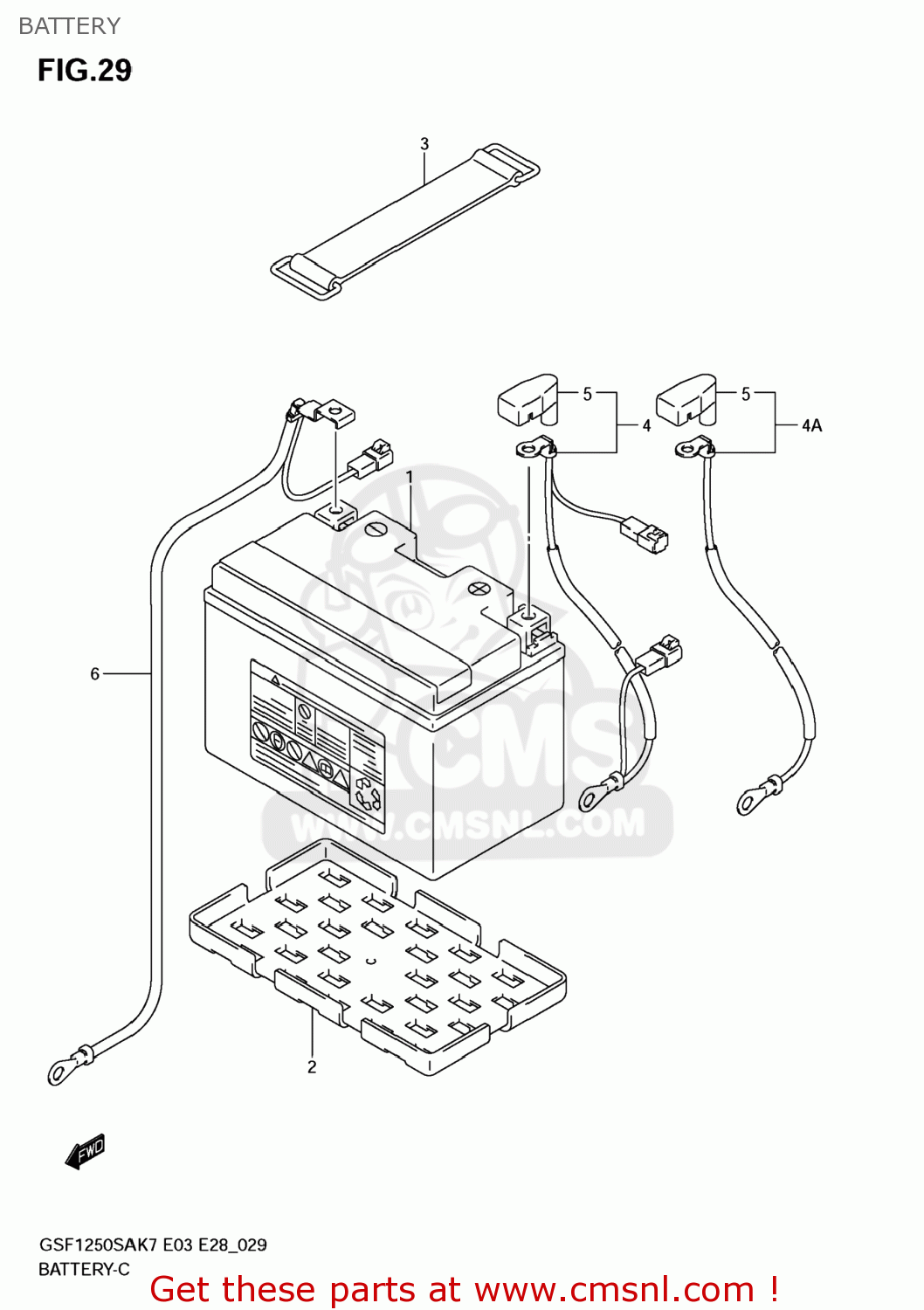

Battery diagram GSF1250S BANDIT 2008 (K8) USA (E03)

BATTERY GSF1250S BANDIT 2008 (K8) USA (E03)

BATTERY GSF1250S BANDIT 2008 (K8) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3361014G10
ref: 1

BATTERY ASSY,F

€ 111.00

2

3365216G00
ref: 2

PROTECTOR,BATTERY

€ 5.50

3

0946200046
ref: 3

BAND

€ 4.50

4

3382018H10
ref: 4

WIRE,BATTERY PLUS LEAD

€ 30.00

4A

3382018H00
ref: 4A

WIRE,BATTERY PLUS LEAD

€ 25.00

5

3362427G00
ref: 5

CAP,BATTERY PLUS LEAD

€ 6.50

6

3386018H10
ref: 6

WIRE,BATTERY MINUS LEAD

€ 28.00
