WATER PUMP

GSF1250S BANDIT 2008 (K8) USA (E03)

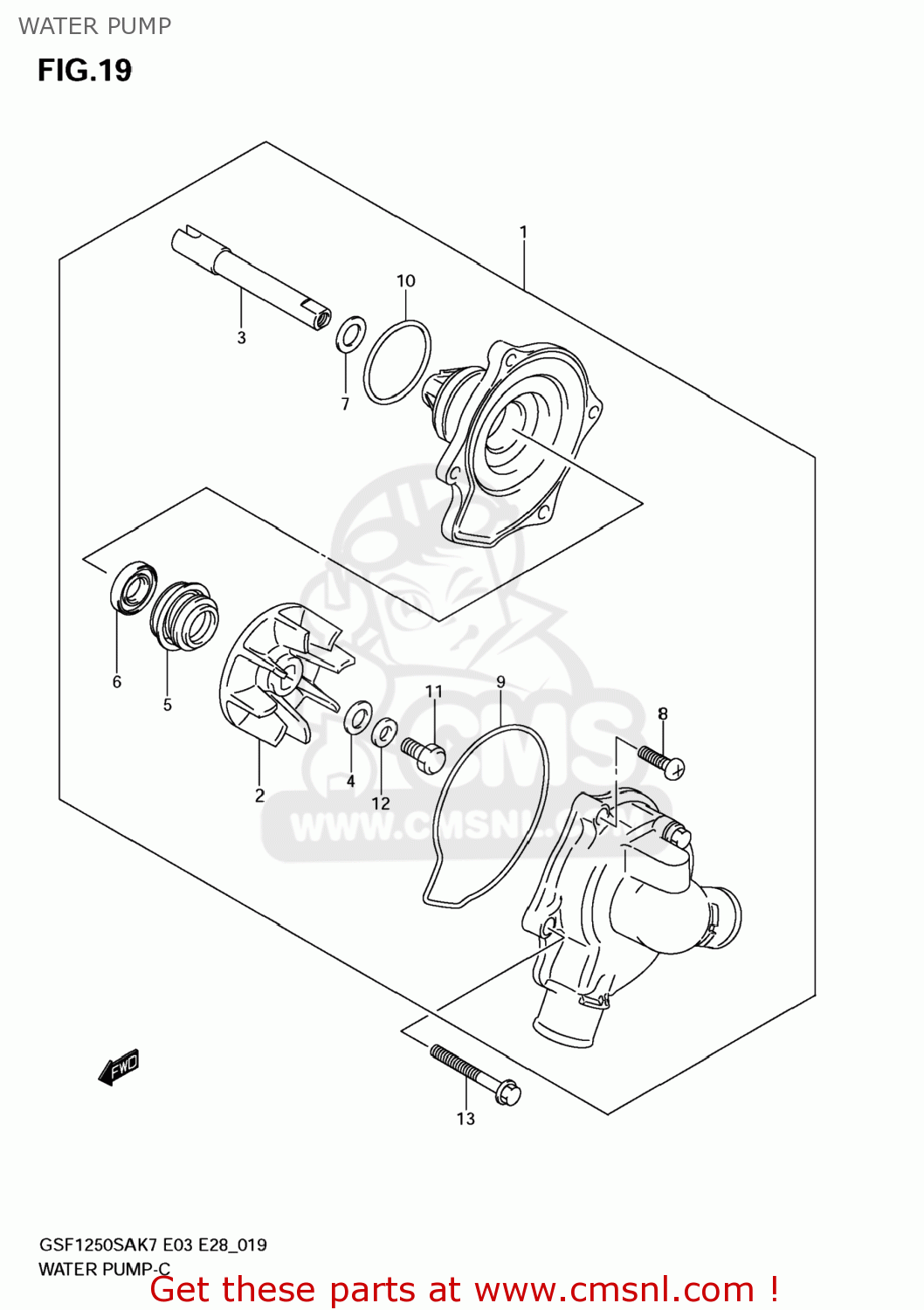

Water pump diagram GSF1250S BANDIT 2008 (K8) USA (E03)

prices are in EUR

ref

part #

description

quantity

1740018H00
ref: 1

PUMP ASSY,WATER

€ 359.00

1749101H00
ref: 2

IMPELLER

€ 17.00

1751141G00
ref: 3

SHAFT

€ 40.50

0916806025
ref: 4

GASKET(6X15X2.2) (NAS)

€ 3.00

1747002F10
ref: 5

SEAL,MECHANICAL

€ 21.50

1746101H00
ref: 6

SEAL,OIL

€ 15.50

1743207G00
ref: 7

WASHER

€ 2.00

021120616A
ref: 8

SCREW

€ 1.50

1741818H00
ref: 9

O RING

€ 14.00

1743533400
ref: 10

O RING,WATER PUMP HOLDER

€ 13.00

0910006099
ref: 11

BOLT(6X13)

€ 2.00

0916406006
ref: 12

WASHER

€ 2.50

015470635A
ref: 13

BOLT

€ 3.00
