STARTER CLUTCH

GSF1250S BANDIT 2008 (K8) USA (E03)

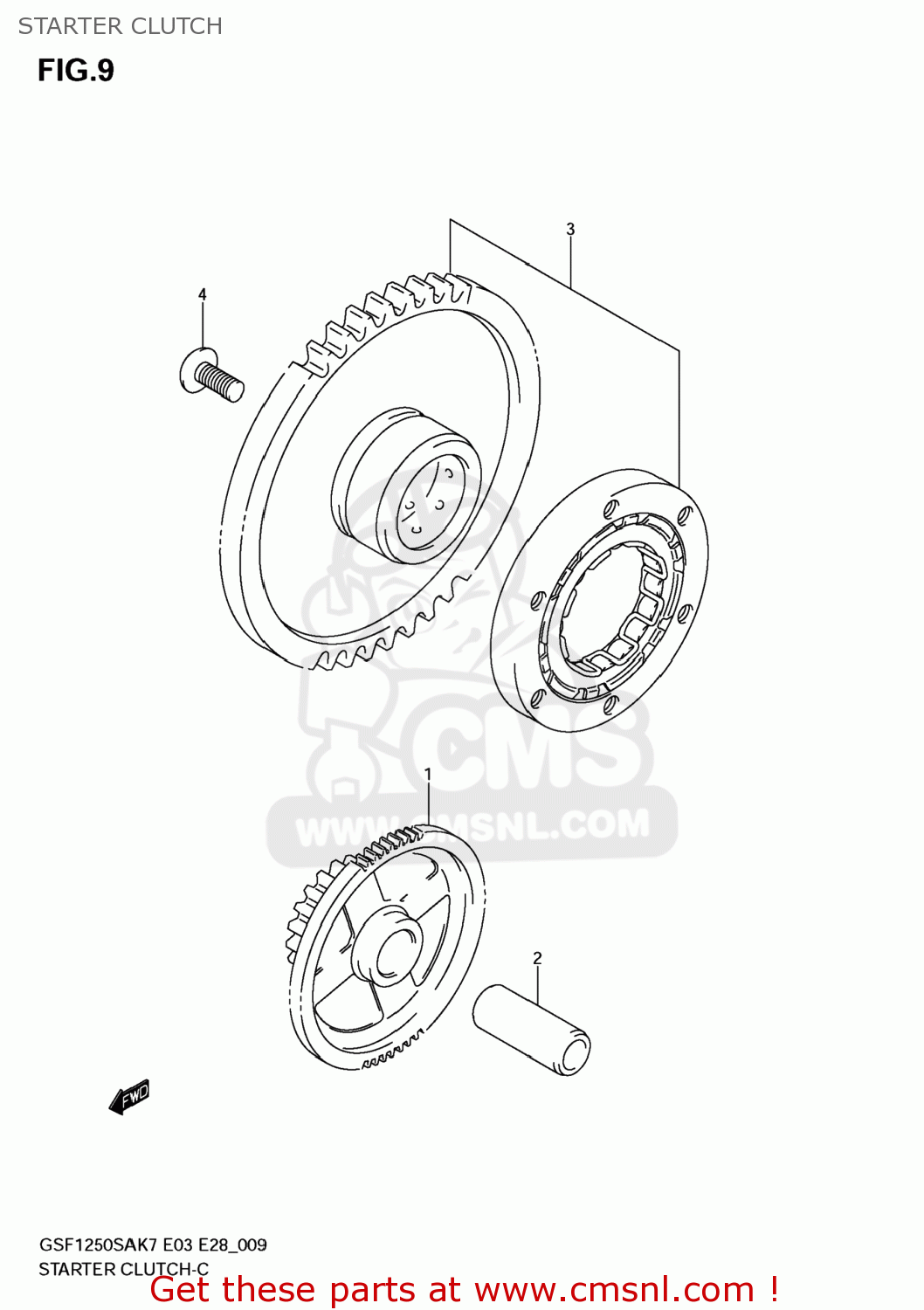

Starter clutch diagram GSF1250S BANDIT 2008 (K8) USA (E03)

STARTER CLUTCH GSF1250S BANDIT 2008 (K8) USA (E03)

STARTER CLUTCH GSF1250S BANDIT 2008 (K8) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1261106B00
ref: 1

GEAR,STARTER IDLE(NT:12,53)

€ 68.50

2

0920611014
ref: 2

PIN(7X11X42)

€ 8.00

3

1260018810
ref: 3

CLUTCH SET,STARTER

€ 356.00

4

0913908023
ref: 4

SCREW(8X16)

€ 2.50
