REAR FENDER

GSF1250S BANDIT 2008 (K8) USA (E03)

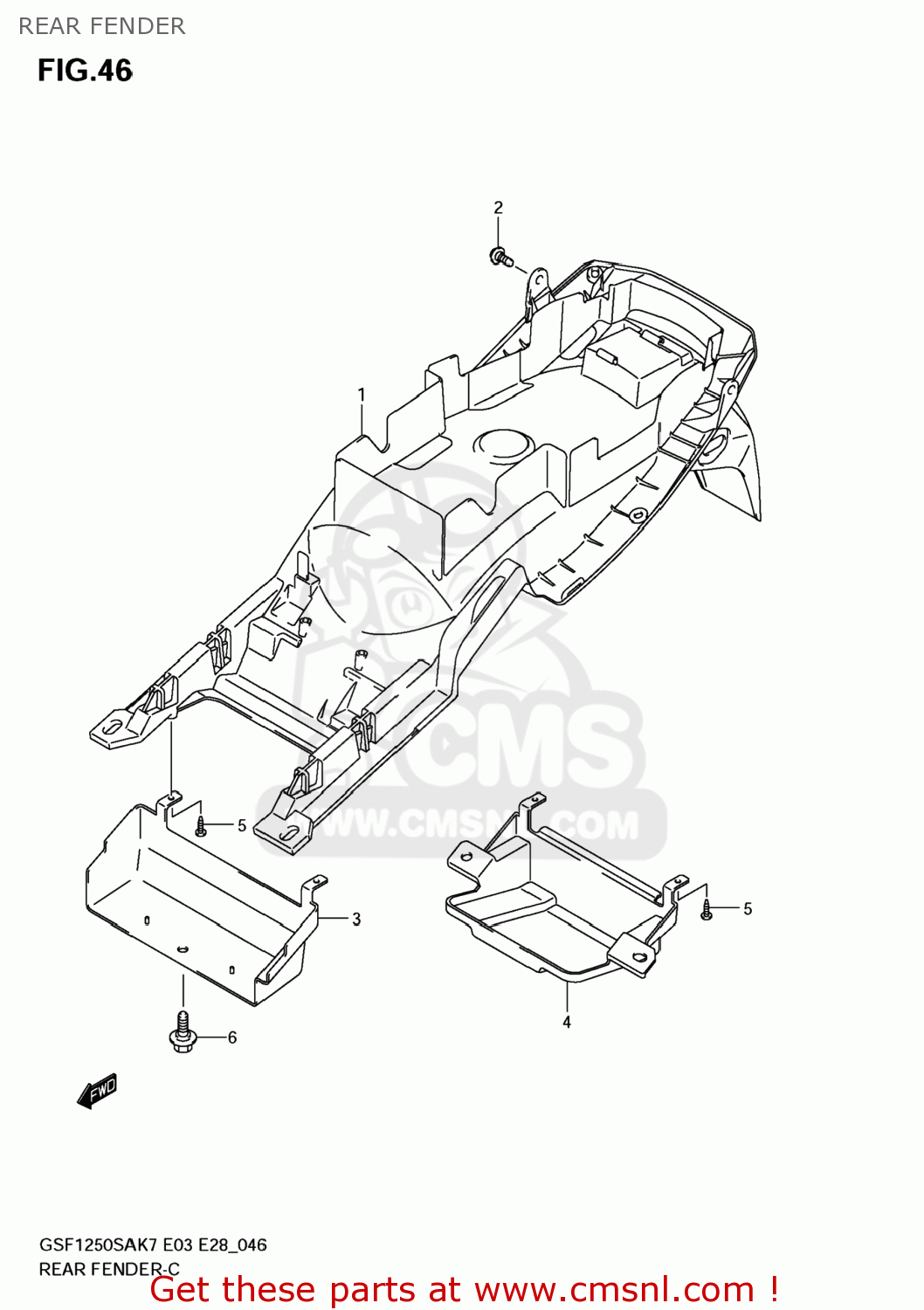

Rear fender diagram GSF1250S BANDIT 2008 (K8) USA (E03)

REAR FENDER GSF1250S BANDIT 2008 (K8) USA (E03)

REAR FENDER GSF1250S BANDIT 2008 (K8) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

6311138GB15PK
ref: 1

FENDER,RR

€ 116.00

2

6316143E00
ref: 2

BOLT

€ 3.00

3

5566738G01
ref: 3

COVER,HYDR ABS UNIT

€ 25.00

4

5566749G00
ref: 4

COVER

€ 31.00

5

035410516B
ref: 5

SCREW

€ 2.00

6

0911106072
ref: 6

BOLT(6X17.8)

€ 2.00
